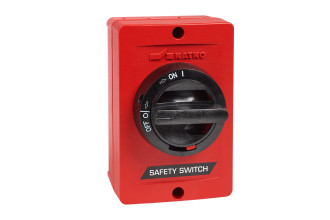

The KEA FR and FR3 fire rated aluminium enclosed safety switches are suitable for installations that require high durability. Available in 2 versions - the FR safety switch can withstand 200°C for 3 hours, whilst the FR3 can withstand 300°C for 2 hours. Conforming to EN 12101-3 smoke and heat control system standards the isolators are industry proven in the market.
The KEA FR / FR3 fire rated aluminium enclosed isolators are available to purchase as a 3-pole, 4-pole, 6-pole or an 8-pole.
KEA 10-40A in A2 enclosure: IK08
KEA 63-160A in A3 enclosure: IK08
| Type | AC-21 | 400 V | AC-22 | 400 V | AC-23 | AC-23 | EAN-Code | Enclosure | ||||
| 415 V | 415 V | 400 V | 690 V | |||||||||
| 690 V | 690 V | 415 V | ||||||||||
| F200 3H | F300 2H | Ie / A | Ie / A | Ie / A | Ie / A | F200 3H | F300 2H | |||||
| 3-pole | ||||||||||||
| KEA 316U FR | KEA 316U FR3 | 25 A | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410305294 | 6419410333396 | A2 | ||
| KEA 325U FR | KEA 325U FR3 | 40 A | 25 A | 25 A | 11 kW | 25 A | 22 kW | 6419410305300 | 6419410333426 | A2 | ||
| KEA 340U FR | KEA 340U FR3 | 63 A | 40 A | 40 A | 22 kW | 32 A | 30 kW | 6419410305317 | 6419410333457 | A2 | ||
| KEA 363U FR | KEA 363U FR3 | 80 A | 63 A | 40 A | 22 kW | 40 A | 37 kW | 6419410305324 | 6419410333488 | A3 | ||
| KEA 380U FR | KEA 380U FR3 | 100 A | 80 A | 63 A | 30 kW | 40 A | 37 kW | 6419410305331 | 6419410333518 | A3 | ||
| KEA 3125 FR | KEA 3125 FR3 | 160 A | 125 A | 100 A | 55 kW | 80 A | 55 kW | 6419410305492 | 6419410333549 | A4 | ||
| KEA 3160 FR | KEA 3160 FR3 | 200 A | 160 A | 135 A | 75 kW | 125 A | 90 kW | 6419410333686 | 6419410333556 | A4 | ||
| KEA 3200C FR | KEA 3200C FR3 | 200 A | 200 A* | 200 A | 110 kW | – | – | 6419410305515 | 6419410333563 | A4 | ||
| 4-pole | ||||||||||||
| KEA 416U FR | KEA 416U FR3 | 25 A | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410305348 | 6419410333402 | A2 | ||
| KEA 425U FR | KEA 425U FR3 | 40 A | 25 A | 25 A | 11 kW | 25 A | 22 kW | 6419410305355 | 6419410333433 | A2 | ||
| KEA 440U FR | KEA 440U FR3 | 63 A | 40 A | 40 A | 22 kW | 32 A | 30 kW | 6419410305362 | 6419410333464 | A2 | ||
| KEA 463U FR | KEA 463U FR3 | 80 A | 63 A | 40 A | 22 kW | 40 A | 37 kW | 6419410305379 | 6419410333495 | A3 | ||
| KEA 480U FR | KEA 480U FR3 | 100 A | 80 A | 63 A | 30 kW | 40 A | 37 kW | 6419410305386 | 6419410333525 | A3 | ||
| KEA 4125 FR | KEA 4125 FR3 | 160 A | 125 A | 100 A | 55 kW | 80 A | 55 kW | 6419410305522 | 6419410333570 | A4 | ||
| KEA 4160 FR | KEA 4160 FR3 | 200 A | 160 A | 135 A | 75 kW | 125 A | 90 kW | 6419410305539 | 6419410333587 | A4 | ||
| KEA 4200C FR | KEA 4200C FR3 | 200 A | 200 A* | 200 A | 110 kW | – | – | 6419410305546 | 6419410333594 | A4 | ||
| 6-pole | ||||||||||||
| KEA 616U FR | KEA 616U FR3 | 25 A | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410305393 | 6419410333419 | A3 | ||
| KEA 625U FR | KEA 625U FR3 | 40 A | 25 A | 25 A | 11 kW | 25 A | 22 kW | 6419410305409 | 6419410333440 | A3 | ||
| KEA 640U FR | KEA 640U FR3 | 63 A | 40 A | 40 A | 22 kW | 32 A | 30 kW | 6419410305416 | 6419410333471 | A3 | ||
| KEA 663U FR | KEA 663U FR3 | 80 A | 63 A | 40 A | 22 kW | 40 A | 37 kW | 6419410305423 | 6419410333501 | A3 | ||
| KEA 680U FR | KEA 680U FR3 | 100 A | 80 A | 63 A | 30 kW | 40 A | 37 kW | 6419410305430 | 6419410333532 | A3 | ||
| KEA 6125 FR | KEA 6125 FR3 | 160 A | 125 A | 100 A | 55 kW | 80 A | 55 kW | 6419410305553 | 6419410333600 | A5 | ||
| KEA 6160 FR | KEA 6160 FR3 | 200 A | 160 A | 135 A | 75 kW | 125 A | 90 kW | 6419410305560 | 6419410333617 | A5 | ||
| KEA 6200C FR | KEA 6200C FR3 | 200 A | 200 A* | 200 A | 110 kW | – | – | 6419410305577 | 6419410333624 | A5 | ||
| 8-pole | ||||||||||||
| KEA 816U FR | KEA 816U FR3 | 25 A | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410305447 | 6419410333631 | A3 | ||
| KEA 825U FR | KEA 825U FR3 | 40 A | 25 A | 25 A | 11 kW | 25 A | 22 kW | 6419410305454 | 6419410333648 | A3 | ||
| KEA 840U FR | KEA 840U FR3 | 63 A | 40 A | 40 A | 22 kW | 32 A | 30 kW | 6419410305461 | 6419410333655 | A3 | ||
| KEA 863U FR | KEA 863U FR3 | 80 A | 63 A | 40 A | 22 kW | 40 A | 37 kW | 6419410305478 | 6419410333662 | A3 | ||
| KEA 880U FR | KEA 880U FR3 | 100 A | 80 A | 63 A | 30 kW | 40 A | 37 kW | 6419410305485 | 6419410333679 | A3 | ||
Fire rated F200 3H (FR) / F300 2H (FR3)
IP66
Padlockable
16A -200A
Door interlock with defeat mechanism
ON-locking facility as option
Good corrosion and UV resistance
Excellent for hard weather conditions
Conforming to EN 12101-3
Tested according to IEC 60947-3
