DEUTSCH DT Series Connectors



Flexible mounting



multi-pin arrangements

100 cycles

with no defects

DT Family Specifications

The DEUTSCH DT Series offers rugged, versatile, and environmentally sealed connectors ideal for automotive, industrial, and harsh environment applications.

Featured Part Number(s)

  • Numbering System: DT* 06 - 2 S * - ****
  • 2 Position: DT06-2S (Plug), DT04-2P (Receptacle), DT06-2S-C015 (Plug, Reduced Dia. Seals), DT04-2P-C015 (Receptacle, Reduced Dia. Seals)
  • 3 Position: DT06-3S (Plug), DT04-3P (Receptacle), DT06-3S-C015 (Plug, Reduced Dia. Seals), DT04-3P-C015 (Receptacle, Reduced Dia. Seals)
  • 4 Position: DT06-4S (Plug), DT04-4P (Receptacle), DT06-4S-C015 (Plug, Reduced Dia. Seals), DT04-4P-C015 (Receptacle, Reduced Dia. Seals)
  • 6 Position: DT06-6S (Plug), DT04-6P (Receptacle), DT06-6S-C015 (Plug, Reduced Dia. Seals), DT04-6P-C015 (Receptacle, Reduced Dia. Seals)
  • 8 Position – Key A: DT06-08SA (Plug), DT04-08PA (Receptacle), DT06-08SA-C015 (Plug, Reduced Dia. Seals), DT04-08PA-C015 (Receptacle, Reduced Dia. Seals)
  • 8 Position – Key B: DT06-08SB (Plug), DT04-08PB (Receptacle), DT06-08SB-C015 (Plug, Reduced Dia. Seals), DT04-08PB-C015 (Receptacle, Reduced Dia. Seals)
  • 8 Position – Key C: DT06-08SC (Plug), DT04-08PC (Receptacle), DT06-08SC-C015 (Plug, Reduced Dia. Seals), DT04-08PC-C015 (Receptacle, Reduced Dia. Seals)
  • 8 Position – Key D: DT06-08SD (Plug), DT04-08PD (Receptacle), DT06-08SD-C015 (Plug, Reduced Dia. Seals), DT04-08PD-C015 (Receptacle, Reduced Dia. Seals)
  • 12 Position – Key A: DT06-12SA (Plug), DT04-12PA (Receptacle), DT06-12SA-C015 (Plug, Reduced Dia. Seals), DT04-12PA-C015 (Receptacle, Reduced Dia. Seals)
  • 12 Position – Key B: DT06-12SB (Plug), DT04-12PB (Receptacle), DT06-12SB-C015 (Plug, Reduced Dia. Seals), DT04-12PB-C015 (Receptacle, Reduced Dia. Seals)
  • 12 Position – Key C: DT06-12SC (Plug), DT04-12PC (Receptacle), DT06-12SC-C015 (Plug, Reduced Dia. Seals), DT04-12PC-C015 (Receptacle, Reduced Dia. Seals)
  • 12 Position – Key D: DT06-12SD (Plug), DT04-12PD (Receptacle), DT06-12SD-C015 (Plug, Reduced Dia. Seals), DT04-12PD-C015 (Receptacle, Reduced Dia. Seals)

Performance Specifications

  • Temperature: Operating at temperatures -55°C to +125°C.
  • Durability: No electrical or mechanical defects after 100 cycles of engagement and disengagement.
  • Vibration: No unlocking or unmating, and no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
  • Fluid Resistance: Connectors show no damage when exposed to most fluids used in industrial applications.
  • Insulation Resistance: 1000 megohms minimum at 25°C.
  • Immersion: IP68 rating.
  • Moisture Resistance: Properly wired and mated connections withstand immersion under three feet of water without loss of electronic qualities or leakage.
  • Dielectric Withstanding Voltage: Current leakage less than 2 milliamps at 1500 volts AC.
  • Thermal Cycle: No cracking, chipping, or leaking after 20 test cycles from -55°C to +125°C.

Reference Dimensions (4 cavity)

  • Plug Length: 30.94mm
  • Plug Height: 18.39mm
  • Plug Width: 18.19mm
  • Receptacle Length: 45.92mm
  • Receptacle Height: 19.71mm
  • Receptacle Width: 20.83mm

DT Series Accessories

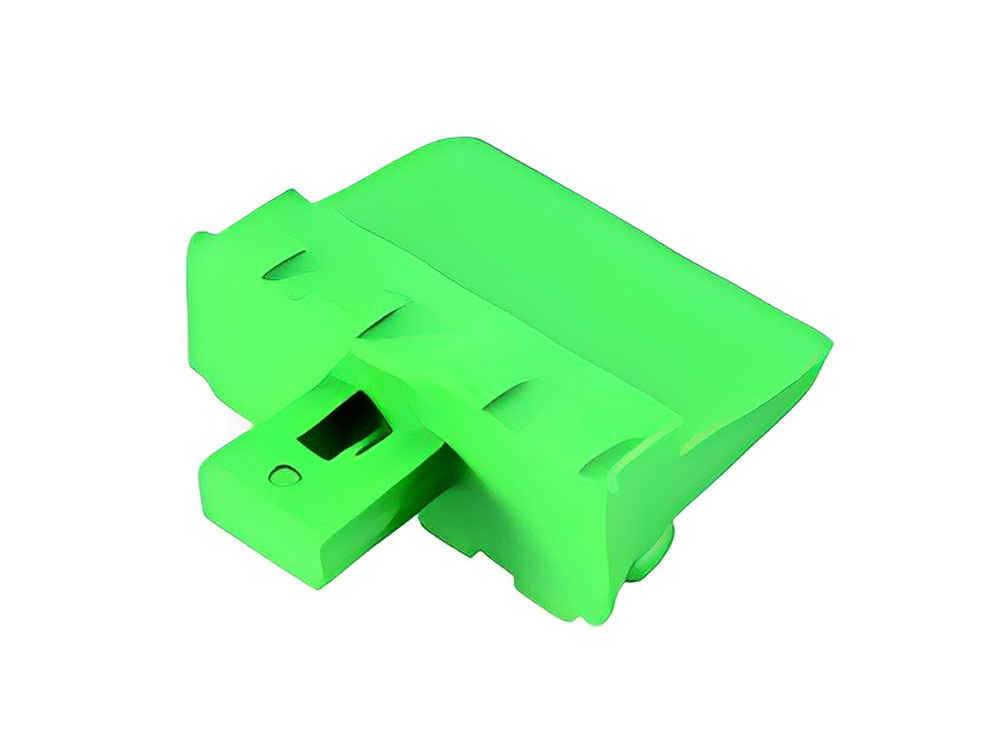

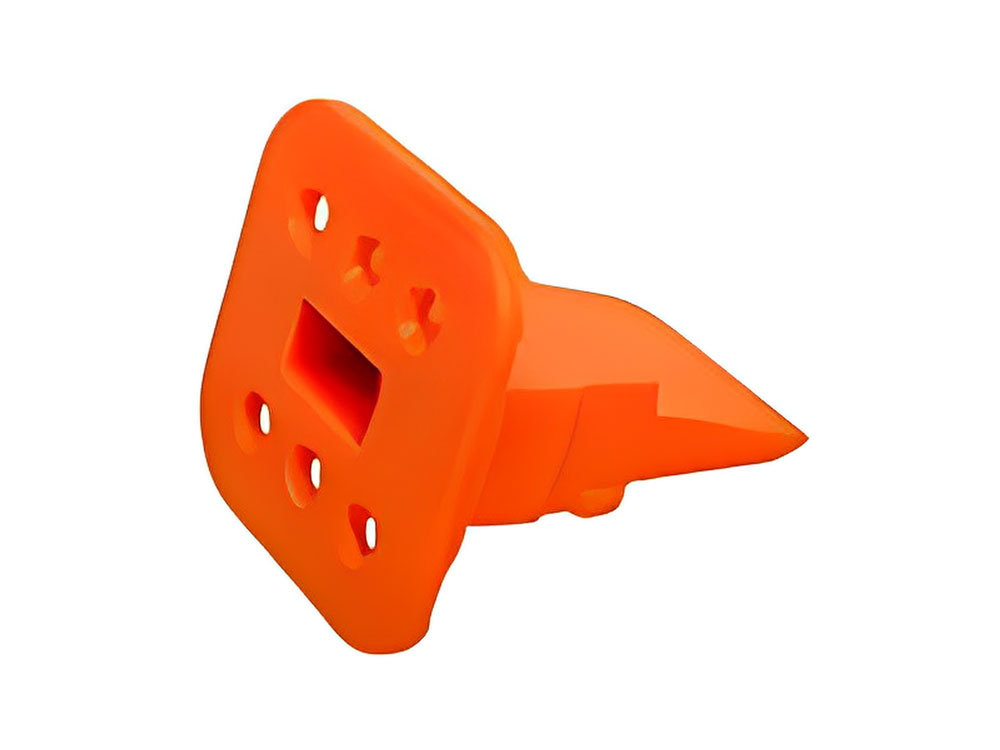

DEUTSCH DT connectors require separately sold secondary wedgelocks to ensure correct contact alignment. These wedgelocks easily snap into place at the mating interface and, if not initially seated properly, will lock during the connector mating process.

DT Series Resources

DT Family Datasheet
