DEUTSCH HD10 Series Connectors

DEUTSCH HD10 Connector Benefits

The HD10 series from DEUTSCH is a line of environmentally sealed connectors made from durable thermoplastic. These cylindrical connectors, designed for a range of 3 to 9 cavities, are suitable for size 4, 12, or 16 contacts and come in both in-line and flanged configurations.

3 to 9

cavity arrangements

IP68

rated protection

100 cycles

high durability

-55°C to +125°C

Operating at temperatures

HD10 Connector Performance Specifications

The HD10 series connectors are designed for exceptional performance, operating reliably in temperatures ranging from -55°C to +125°C. They demonstrate enduring durability with no electrical or mechanical defects after 100 engagement cycles and are resistant to various industrial fluids. These connectors are also vibration-resistant.

Featured Part Number(s)

  • 3 Position, Size 16: Without Rear Threads: HD16-3-16S (Plug), HD14-3-16P (Receptacle Inline)
  • 3 Position, Size 16: With Rear Threads: HD16-3-96S (Plug), HD14-3-96P (Receptacle Inline), HD10-3-96P (Receptacle Flange)
  • 4 Position, Size 4/16: With Rear Threads: HD16-4-4S (Plug), HD10-4-4P (Receptacle Flange)
  • 5 Position, Size 16: Without Rear Threads: HD16-5-16S (Plug), HD14-5-16P (Receptacle Inline), HD10-5-16P (Receptacle Flange)
  • 6 Position, Size 16: With Rear Threads: HD16-6-96S (Plug), HD14-6-96P (Receptacle Inline), HD10-6-96P (Receptacle Flange)
  • 6 Position, Size 12: With Rear Threads: HD16-6-12S-B010 (Plug), HD14-6-12P (Receptacle Inline), HD10-6-12P (Receptacle Flange)
  • 9 Position, Size 16: Without Rear Threads: HD16-9-16S (Plug), HD14-9-16P (Receptacle Inline), HD10-9-16P (Receptacle Flange)
  • 9 Position, Size 16: With Rear Threads: HD16-9-96S (Plug), HD14-9-96P (Receptacle Inline), HD10-9-96P (Receptacle Flange)
  • 9 Position (1939), Size 16: With Rear Threads, HD16-9-1939S (Plug), HD14-9-1939P (Receptacle Inline), HD10-9-1939P (Receptacle Flange)

Performance Specifications

  • Temperature: Operates effectively from -55°C to +125°C.
  • Durability: No defects after 100 engagement cycles.
  • Vibration Resistance: Withstands up to 20 G’s across various frequencies.
  • Fluid Resistance: Resilient against most industrial fluids.
  • Insulation Resistance: Minimum 1000 megohms at 25°C.
  • Immersion: IP68 rated, ensures functionality under water.
  • Dielectric Voltage: Withstands up to 1500 volts AC with minimal leakage.
  • Thermal Cycle Resistance: Prevents damage in extreme temperature fluctuations.

HD10 Series Accessories

A variety of accessories are available for the HD10 series connectors, including boots, backshells, gaskets, and protective caps. These accessories are designed to meet diverse design needs, offering assistance in mounting, extra protection, and improved visual appeal.

HD10 Backshell

HD10 Strain Reliefs

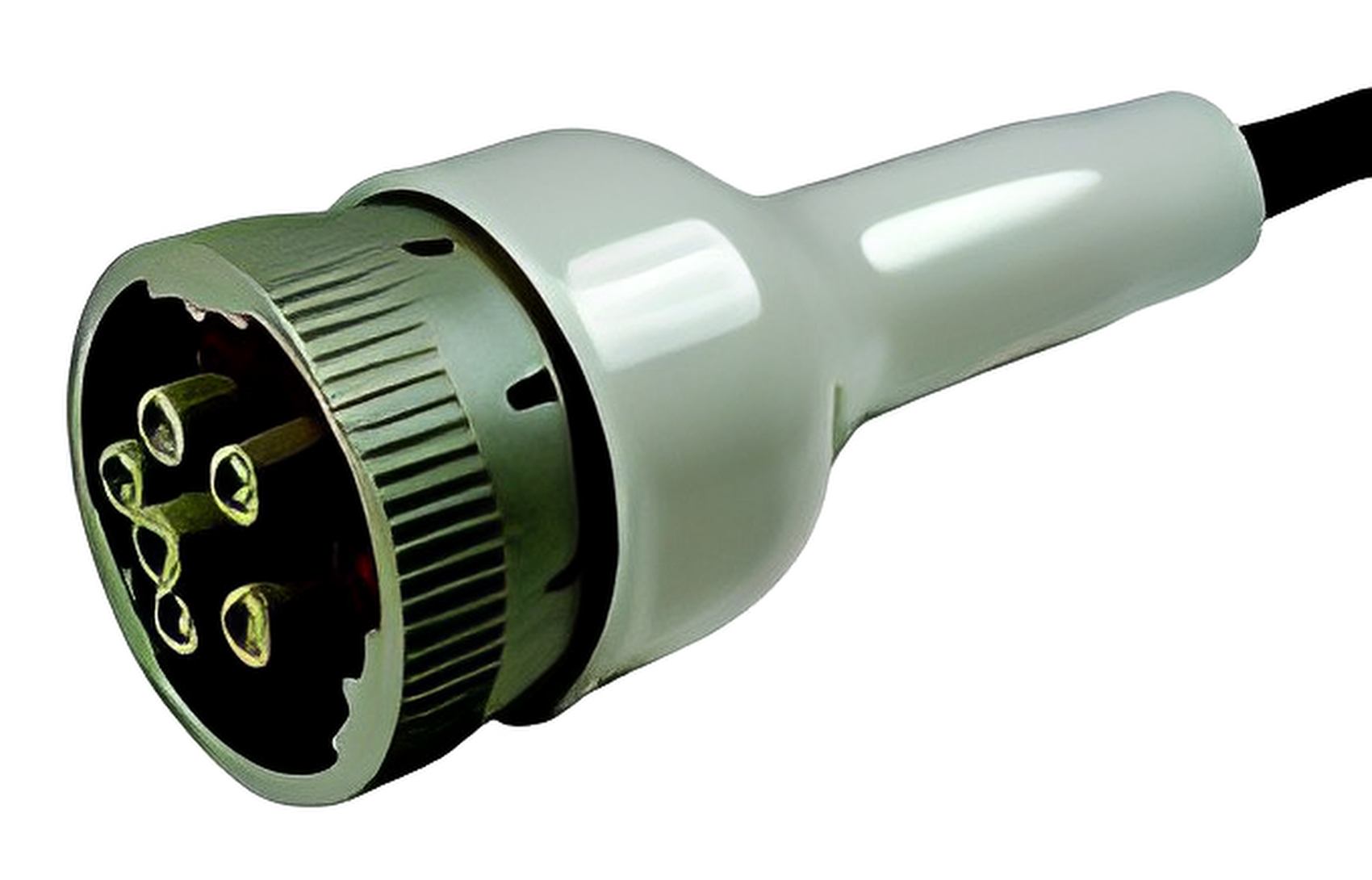

HD10 Boots

HD10 Gaskets

HD10 Dust Caps

HD10 Lanyards

HD10 Series Resources

HD10 Series Brief

Download

DT Family Catalogue

Download
