DT Backshells

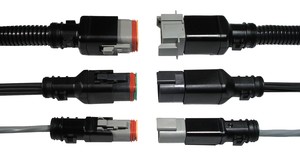

Deutsch DT Series backshells are designed to snap onto and mate with all standard (basic plug and receptacles without modifications) DT Series connectors. The rigid, durable backshells offer a high level of protection and allow convoluted tubing to nest within the rear of the backshell. Straight (180°) and right angle (90°) versions and backshells with strain relief for jacketed cable are also available.

Document downloads

Buy online

Dalroad Shop

Further information

The backshells are available for both standard plugs and standard receptacles. Since they are designed to work with the standard DT connectors, tests should be conducted for fit and function of a backshell being used on any part with a modification.

Deutsch backshells

Key benefits

  • Straight (180°) and right angled (90°) adaptors for 22, 3, 4, 6, 8 and 12 way

  • Version equipped with strain relief features 2, 3, 4 and 6 way for jacketed cables

  • Operating Temperatures: -40 to 125°C

  • Handling Temperature: -5 to 450°C

  • IP rating: IP40

  • Material: PA 6.6 / black
