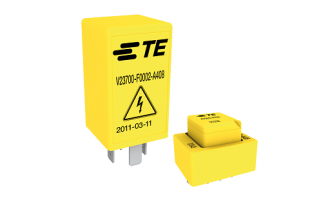

The Mini K HV supports the connection and disconnection of the traction battery in switching assemblies for hybrid and battery electric vehicles. Even under fault conditions, the Mini K HV reliably disconnects the precharge circuit from the traction battery for excellent safety. Our high voltage precharge relays, Mini K HV, operates safely with two arc extinguishing magnets. Its small package and PCB mount or plug-in terminals make it an easy choice for voltage levels up to 450VDC and precharge currents and limiting break currents up to 20 Amps.
Safe-magnetic arc suppression
Prevents contact welds
Form X (NO DM) contact arrangement
Suitable for voltage levels up to 450VDC
Pre-charge current up to 20A
Limiting break currents up to 20A
Small package size – low profile
Available with PCB mount and plug-in terminals
Can't find what you're looking for or just want to speak to someone about our products?
Product Codes available
TE Connectivity – V23700-C0001-A408
TE Connectivity – V23700-F0002-A408
