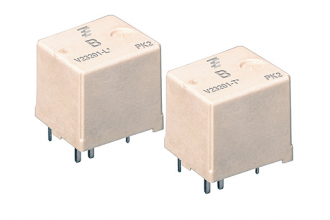

Automotive PCB power relay PK2 (THT-THR). Typical applications include energy management, engine control, ignition, main switch/supply relay, preheating system, quiescent current management.
Product Codes available
TE Connectivity – V23201-L1004-A502
TE Connectivity – V23201-T1006-A502
Reduced coil power consumption of latching version allows higher limiting continuous current (50A) and increased ambient temperature (125°C)
Maximum switch on current 200A
60% volume reduced Power K at increased performance
PCB area requirements minimized by 50% to only 293mm2
Size optimized to L x W x H 18.3x16x15.9mm
Design allows highest reliability
High shock and vibration resistance
No change of switching state version at breakdown of battery voltage
For monostable version refer to Power Relay PK2 (THT – THR)
