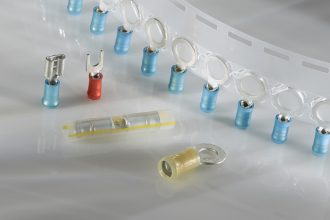

PIDG pre-insulated Diamond Grip Terminals and Splices are designed for complete and uniform reliability. The pre-insulated termination ensures a vibration safe connection of maximum conductivity, and its tensile strength approaches that of the wire itself. Each PIDG terminal consists of a tin plated copper body, with a specially designed copper sleeve and insulation sleeve fitted over the terminal barrel. The carefully engineered application tooling has been designed for the PIDG program to ensure high quality terminations time after time. Terminal and insulation sleeve are crimped simultaneously resulting in an excellent tensile strength and vibration resistance.
• Made of high conductivity copper
• Electro tin-plated for improved corrosion resistance
• LSF halogen-free insulation providing high dielectric strength
• STRATO-THERM high-temperature terminal available
• A variety of PIDG terminals and splices are UL listed file E13288 and certified by CSA file LR7189
• Meets the requirements of London Underground and SNCF
Basic terminal is made of high conductivity copper, electro tin plated, for improved corrosion resistance
Applicable wire size is marked on the tongue
Inner serrations on the wire barrel gives maximum electrical contact and tensile strength with the conductor
Copper sleeve provides circum-ferential insulation support to the wire and allows the wire to be bent in any direction without damaging the wire insulation or conductors
AMP PIDG Terminals and Splices meet the requirements of MIL-T-7928
A variety of PIDG terminals and splices are UL listed File E 13288 and certified by CSA File LR 7189
