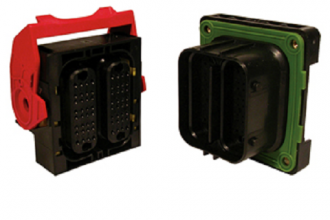

The STRIKE connector series features a lever lock system and is designed for heavy duty equipment applications. The environmentally sealed series offers two different size rugged housings that accept contacts from size 20 to 16 with arrangements of 32 and 64 cavities. The lever lock combined with varying cavity arrangements allows the STRIKE Series connectors to offer flexible options for electrical designs.

Document downloads

Buy online

Dalroad Shop

Further information

Strike Series Part Numbers



Here are some of the common part numbers of the STRIKE connectors. Several additional connectors may be available.



Position Keying Plug Receptacle


32

A SRK06-MDA-32A-001 SRK02-MDA-32A-001
B SRK06-MDB-32A-001 SRK02-MDB-32A-001
C SRK06-MDC-32A-001 SRK02-MDC-32A-001


64

A SRK06-MDA-64A-001 SRK02-MDA-64A-001
B SRK06-MDB-64A-001 SRK02-MDB-64A-001
C SRK06-MDC-64A-001 SRK02-MDC-64A-001



TE Connectivity’s industrial and commercial transportation connectors are available in a variety of materials, shapes, wire gauge options, cavity counts and mounting options to suit a wide range of applications. TE’s reference guide to TE Connectivity’s industrial & commercial transportation connectors and accessories.



http://www.te.com/connector-selector

Browse all DEUTSCH Connectors >

DEUTSCH connector product guide for industrial and commercial vehicles >

Deutsch Strike Connectors

Key benefits

  • Accepts contact sizes 16 (13 amps) and 20 (7.5 amps)

  • 14-22 AWG

  • 32 and 64 cavity arrangements

  • In-line, flange, or PCB mount

  • Square, thermoplastic housing

  • Lever for mating

  • TPA assures contact alignment and retention
