Schurter AMO 10.3x38 EV High Voltage DC Fuse
10.3 x 38 mm | 800VDC | 10–50A | Quick-Acting

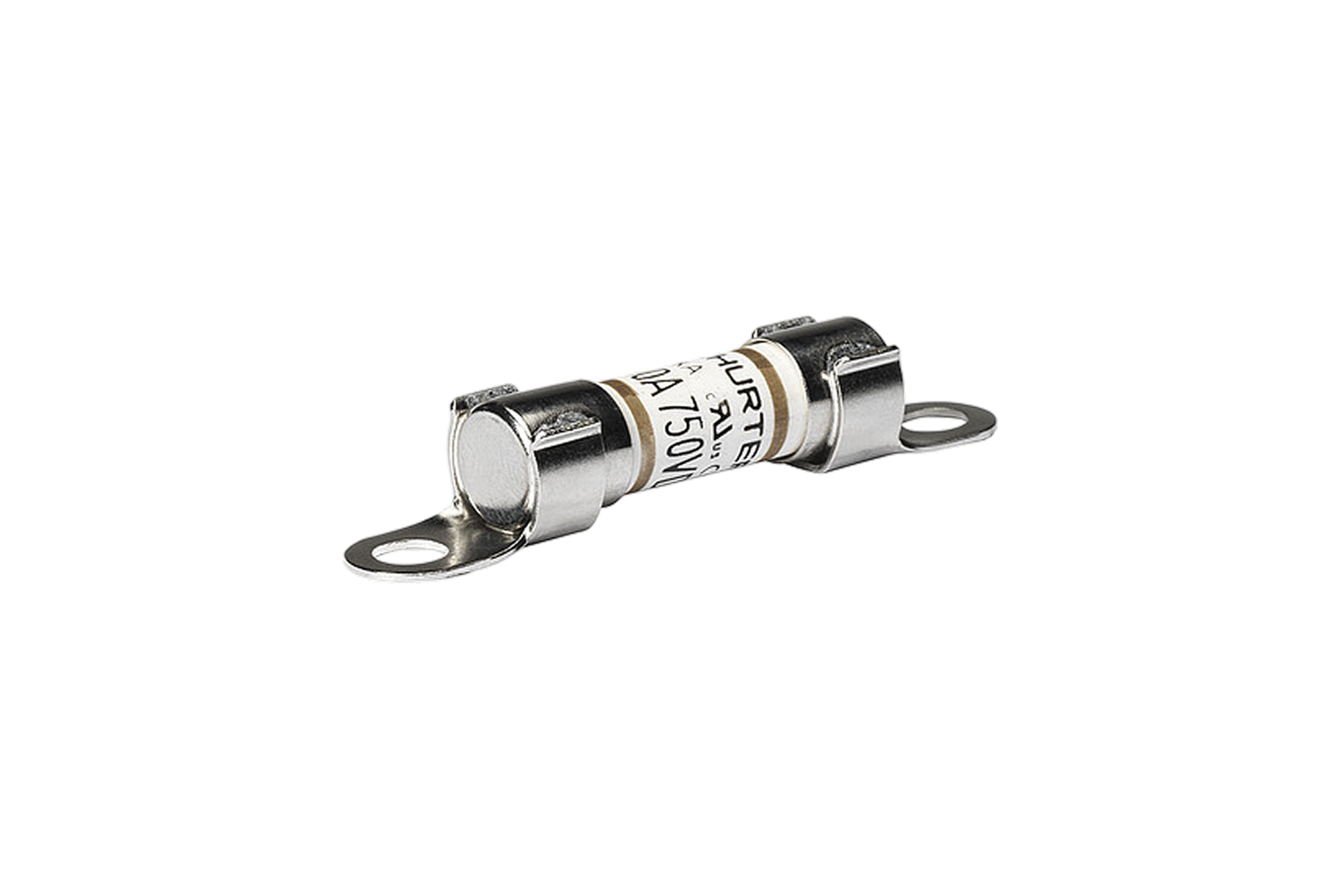

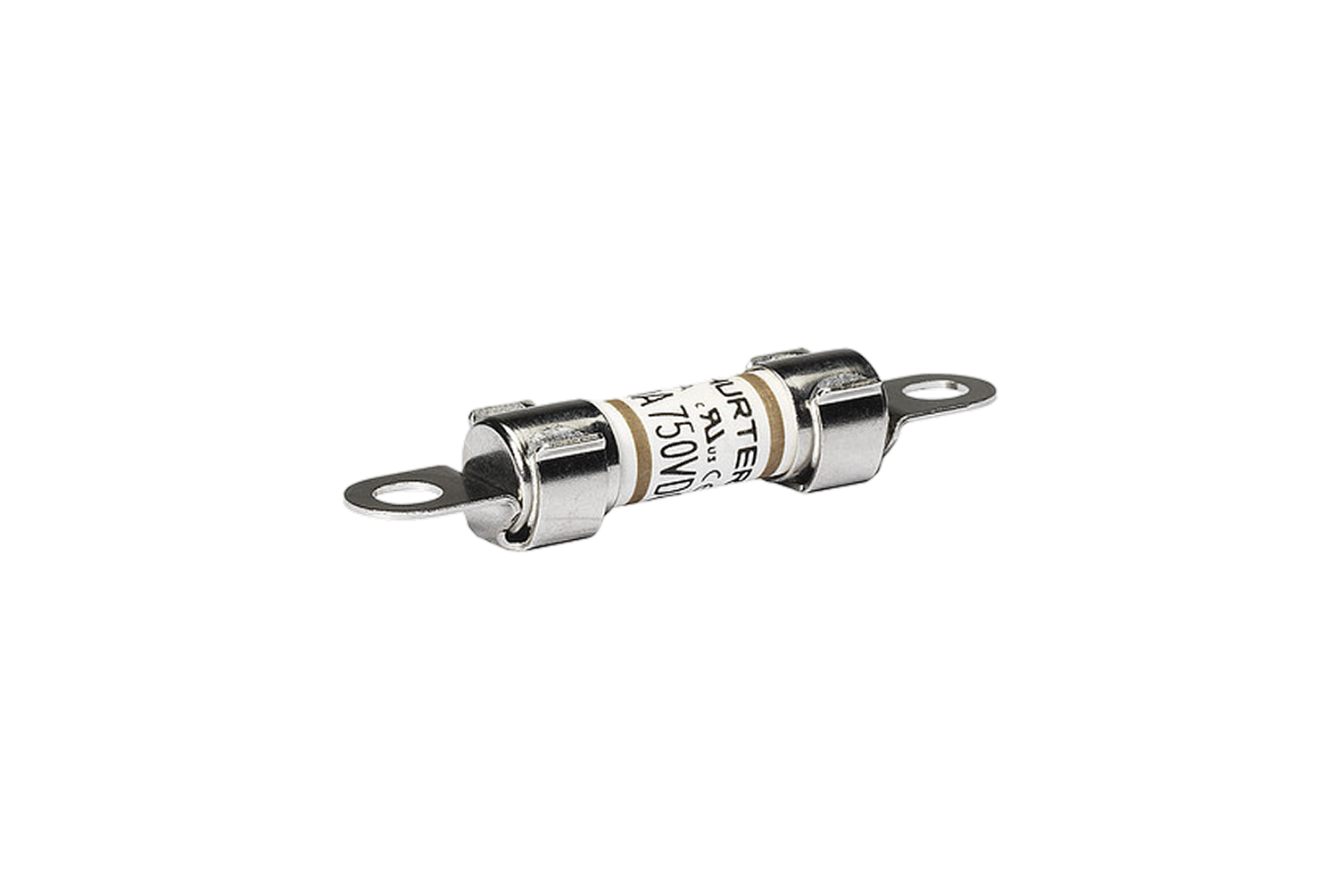

Schurter AMO EV Fuse Overview
The Schurter AMO is a quick-acting high voltage DC fuse in the 10.3 x 38 mm format, designed specifically for electric vehicle applications. Rated up to 800VDC with a breaking capacity of 20kA, it is available in current ratings from 10A to 50A across three mounting configurations – PCB/THT, screw-on, and screw-on axial – making it suitable for a wide range of EV power system designs.
-
Product features
-
Three mounting configurations: PCB/THT, screw-on, screw-on axial
Manifold mounting versions available
Ceramic tube with copper alloy endcaps
UL approved (File No. E184831); CE and UKCA marked
RoHS, REACH and China RoHS compliant
Suitable for use in equipment per IEC/UL 62368-1
Version for fuse clip available on request
-
Compatible Applications
The AMO series is designed for use across a range of high voltage DC systems found in modern electric vehicles:
-
Battery management systems
On-board battery chargers
DC/DC converters
Air-conditioning compressors
PTC heaters
AMO Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated voltage | 750–800VDC |
| Rated current | 10–50A |
| Breaking capacity | 20kA |
| Characteristic | Quick-acting F |
| Mounting | PCB/THT, Screw, Screw (Axial) |
| Operating temperature | -40°C to +125°C |
| Storage conditions | 0°C to 40°C, max. 70% r.h. |
| Tube material | Ceramics |
| Endcap material | Copper alloy |
| Unit weight | 13.6g |
| Packaging unit | Bulk (100 pcs.) |
| Approvals | UL (E184831), CE, UKCA |
| Compliances | RoHS, REACH, China RoHS |
| Application standard | IEC/UL 62368-1 |
AMO Variants & Order Codes
|
Current (A) |
Mounting |
Voltage (VDC) |
Breaking Capacity |
Voltage Drop max. (mV) |
Power Dissipation typ. (mW) |
Melting I²t typ. (A²s) |
Order No. |
|---|---|---|---|---|---|---|---|
|
10 |
Screw |
800 1 |
20kA |
260 |
2000 |
76 |
3-151-005 |
|
15 |
Screw |
800 1 |
20kA |
200 |
2300 |
478 |
3-151-006 |
|
20 |
Screw |
800 1 |
20kA |
175 |
2500 |
1510 |
3-151-007 |
|
25 |
Screw |
800 1 |
20kA |
165 |
3000 |
2492 |
3-151-008 |
|
30 |
Screw |
800 1 |
20kA |
175 |
3600 |
3892 |
3-151-009 |
|
40 |
Screw |
750 2 |
20kA |
165 |
4800 |
7112 |
3-151-010 |
|
50 |
Screw |
750 2 |
20kA |
200 |
6700 |
10012 |
3-151-011 |
|
10 |
Screw (Axial) |
800 1 |
20kA |
260 |
2000 |
76 |
3-151-012 |
|
15 |
Screw (Axial) |
800 1 |
20kA |
200 |
2300 |
478 |
3-151-013 |
|
20 |
Screw (Axial) |
800 1 |
20kA |
175 |
2600 |
1510 |
3-151-014 |
|
25 |
Screw (Axial) |
800 1 |
20kA |
165 |
3000 |
2492 |
3-151-015 |
|
30 |
Screw (Axial) |
800 1 |
20kA |
175 |
3700 |
3892 |
3-151-016 |
|
40 |
Screw (Axial) |
750 2 |
20kA |
165 |
4900 |
7112 |
3-151-017 |
|
50 |
Screw (Axial) |
750 2 |
20kA |
200 |
6800 |
10012 |
3-151-018 |
|
10 |
PCB |
800 1 |
20kA |
260 |
2000 |
76 |
3-151-019 |
|
15 |
PCB |
800 1 |
20kA |
200 |
2300 |
478 |
3-151-020 |
|
20 |
PCB |
800 1 |
20kA |
175 |
2600 |
1510 |
3-151-021 |
|
25 |
PCB |
800 1 |
20kA |
165 |
3000 |
2492 |
3-151-022 |
|
30 |
PCB |
800 1 |
20kA |
175 |
3900 |
3892 |
3-151-023 |
|
40 |
PCB |
750 2 |
20kA |
165 |
5200 |
7112 |
3-151-024 |
|
50 |
PCB |
750 2 |
20kA |
200 |
7600 |
10012 |
3-151-025 |
1 UL: 20kA @ 800VDC with L/R < 1ms
2 UL: 20kA @ 750VDC with L/R < 1ms
