Schurter ALO EV High Voltage DC Fuse
250/500/750/1000VDC | 100–900A | Bolt-on Mounting

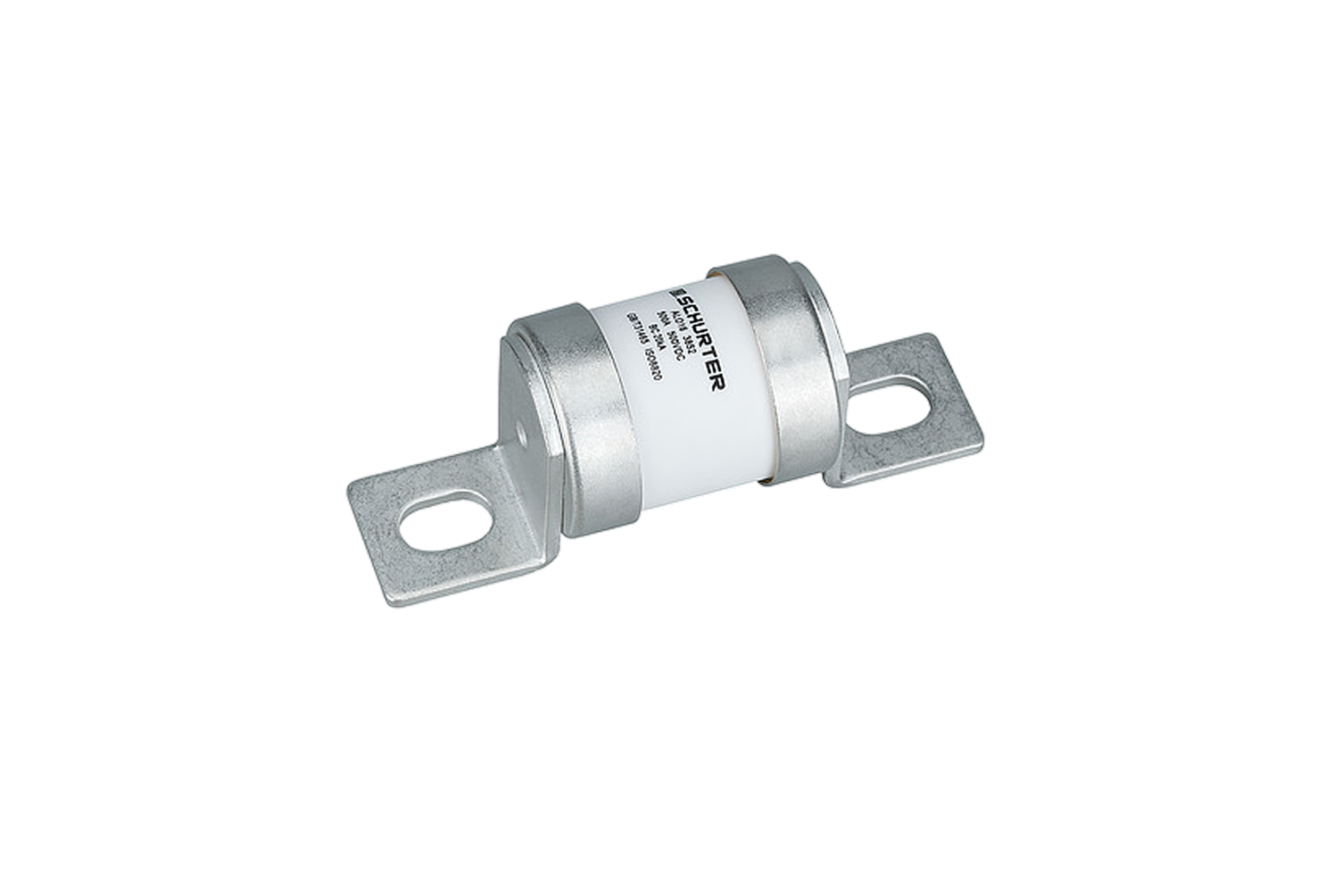

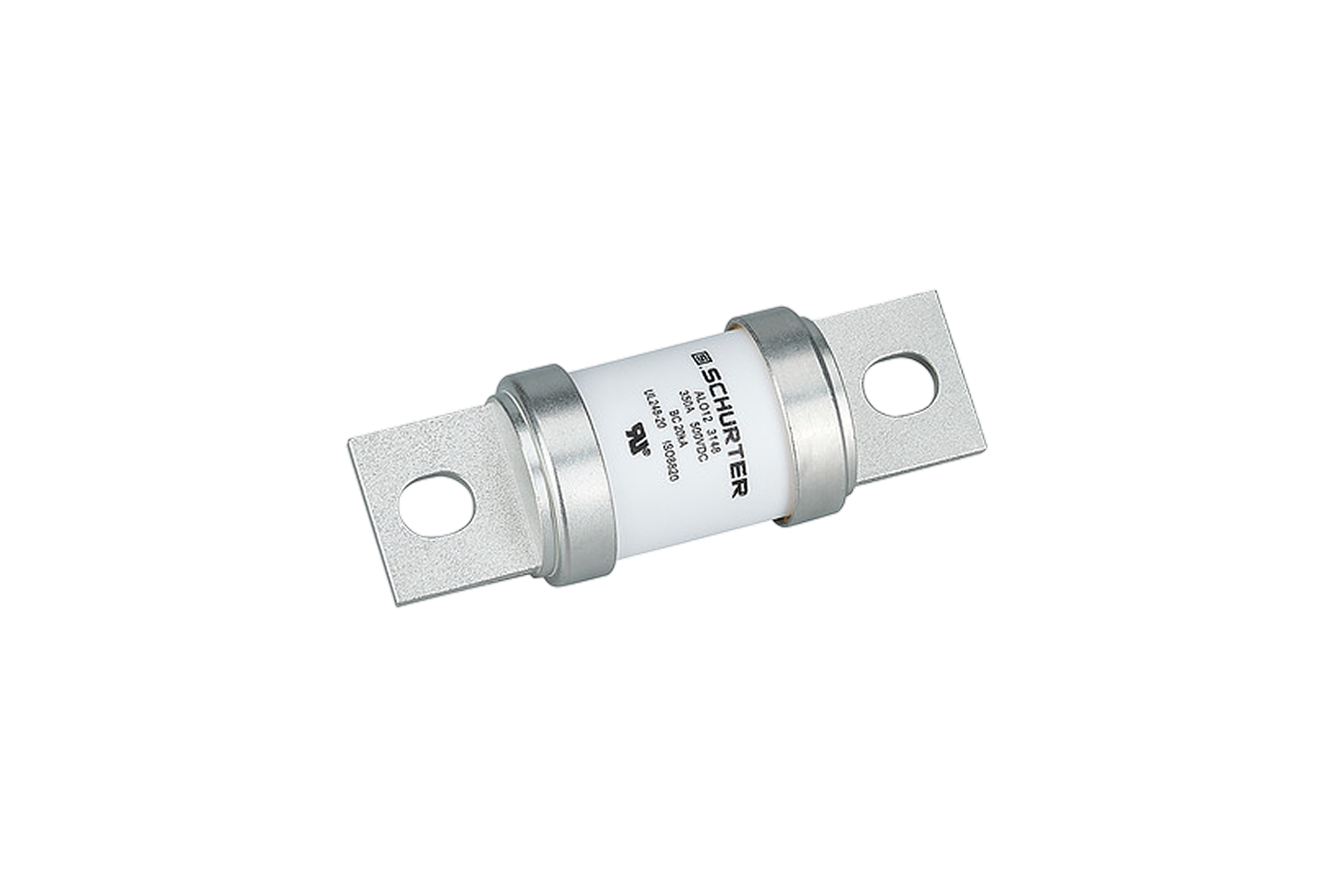

Schurter ALO EV Fuse Overview
The Schurter ALO is a high voltage DC fuse designed for electric vehicle power distribution and battery protection applications requiring high current capacity. Rated up to 1000VDC with a breaking capacity of up to 50kA, it is available in current ratings from 100A to 900A – significantly higher than the AMO and ADO series – making it suited to high power EV systems including power distribution units, battery disconnect units and all-in-one controllers.
The ALO is available in both ceramic and resin tube variants across a range of bolt-on mounting configurations and dimension codes, providing flexibility for different installation geometries and enclosure designs.
-
Product features
-
Available in ceramic and resin tube construction
Multiple bolt-on configurations: Bolt-on A, B, C and D depending on sub-series
Copper alloy tin-plated terminals throughout
Vibration tested to IEC 60068-2-6; shock tested to MIL-STD-202 Method 213 Condition C
Designed to UL 248-20, ISO 8820-8, GB/T31465.6 and JASO D622
UL approved (File No. 548130)
RoHS, REACH and China RoHS compliant
-
Compatible Applications
The ALO series is designed for high current DC protection in electric vehicle power systems:
-
PDU: power distribution unit
BDU: battery disconnect unit
All-in-one controller
2-in-1 electric drive
Battery management system
ALO Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated voltage | 250 / 500 / 750 / 1000VDC |
| Rated current | 100–900A |
| Breaking capacity | Up to 50kA |
| Characteristic | EV Fuse |
| Mounting | Bolt-on |
| Operating temperature | -40°C to +125°C |
| Storage conditions | -40°C to +70°C, max. 70% r.h. |
| Terminal material | Copper alloy, tin-plated |
| Tube material | Ceramic / Resin |
| Endcap material | Copper alloy |
| Approvals | UL (File No. 548130) |
| Compliances | RoHS, REACH, China RoHS |
| Product standards | UL 248-20, ISO 8820-8 |
| Product standards (cont.) | GB/T31465.6, JASO D622 |
ALO Variants & Order Codes
|
Series |
Current (A) |
Voltage (VDC) |
Dim. Code |
Mounting |
Tube |
Breaking Capacity |
Pre-arcing I²t typ. (kA²s) |
Melting I²t typ. (kA²s) |
Power Dissipation typ. (W) |
Pkg |
Order No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALO11 |
100 |
500 |
3148 |
Bolt-on A |
Ceramic |
20kA1 |
1.05 |
4.4 |
11 |
6 |
3-156-224 |
|
ALO11 |
125 |
500 |
3148 |
Bolt-on A |
Ceramic |
20kA1 |
1.75 |
7.3 |
13 |
6 |
3-156-225 |
|
ALO11 |
150 |
500 |
3148 |
Bolt-on A |
Ceramic |
20kA1 |
2.6 |
10.9 |
17 |
6 |
3-156-226 |
|
ALO11 |
200 |
500 |
3148 |
Bolt-on A |
Ceramic |
20kA1 |
4.85 |
20.4 |
24 |
6 |
3-156-227 |
|
ALO11 |
250 |
500 |
3148 |
Bolt-on A |
Ceramic |
20kA1 |
8.61 |
36.2 |
28 |
6 |
3-156-228 |
|
ALO11 |
300 |
500 |
3148 |
Bolt-on A |
Ceramic |
20kA1 |
12.4 |
52.1 |
35 |
6 |
3-156-229 |
|
ALO11 |
350 |
500 |
3148 |
Bolt-on A |
Ceramic |
20kA1 |
17.85 |
74.9 |
45 |
6 |
3-156-230 |
|
ALO12 |
100 |
500 |
3148 |
Bolt-on B |
Ceramic |
20kA1 |
1.05 |
4.4 |
11 |
6 |
3-156-231 |
|
ALO12 |
125 |
500 |
3148 |
Bolt-on B |
Ceramic |
20kA1 |
1.75 |
7.3 |
13 |
6 |
3-156-232 |
|
ALO12 |
150 |
500 |
3148 |
Bolt-on B |
Ceramic |
20kA1 |
2.6 |
10.9 |
17 |
6 |
3-156-233 |
|
ALO12 |
200 |
500 |
3148 |
Bolt-on B |
Ceramic |
20kA1 |
4.85 |
20.4 |
24 |
6 |
3-156-234 |
|
ALO12 |
250 |
500 |
3148 |
Bolt-on B |
Ceramic |
20kA1 |
8.61 |
36.2 |
28 |
6 |
3-156-235 |
|
ALO12 |
300 |
500 |
3148 |
Bolt-on B |
Ceramic |
20kA1 |
12.4 |
52.1 |
35 |
6 |
3-156-236 |
|
ALO12 |
350 |
500 |
3148 |
Bolt-on B |
Ceramic |
20kA1 |
17.85 |
74.9 |
45 |
6 |
3-156-237 |
|
ALO13 |
160 |
250 |
3734 |
Bolt-on A |
Ceramic |
20kA1 |
1.598 |
8.537 |
13 |
4 |
3-156-238 |
|
ALO13 |
200 |
250 |
3734 |
Bolt-on A |
Ceramic |
20kA1 |
4.516 |
15.806 |
16 |
4 |
3-156-239 |
|
ALO13 |
250 |
250 |
3734 |
Bolt-on A |
Ceramic |
20kA1 |
7.243 |
25.351 |
20 |
4 |
3-156-240 |
|
ALO13 |
300 |
250 |
3734 |
Bolt-on A |
Ceramic |
20kA1 |
13.38 |
46.83 |
23 |
4 |
3-156-241 |
|
ALO13 |
315 |
250 |
3734 |
Bolt-on A |
Ceramic |
20kA1 |
15.89 |
55.615 |
24 |
4 |
3-156-242 |
|
ALO13 |
350 |
250 |
3734 |
Bolt-on A |
Ceramic |
20kA1 |
19.81 |
69.335 |
26 |
4 |
3-156-243 |
|
ALO13 |
400 |
250 |
3734 |
Bolt-on A |
Ceramic |
20kA1 |
27.69 |
96.915 |
31 |
4 |
3-156-244 |
|
ALO13 |
450 |
250 |
3734 |
Bolt-on A |
Ceramic |
20kA1 |
37.09 |
129.815 |
35 |
4 |
3-156-245 |
|
ALO13 |
500 |
250 |
3734 |
Bolt-on A |
Ceramic |
20kA1 |
48.1 |
168.35 |
38 |
4 |
3-156-246 |
|
ALO13 |
600 |
250 |
3734 |
Bolt-on A |
Ceramic |
20kA1 |
79.28 |
277.48 |
44 |
4 |
3-156-247 |
|
ALO14 |
200 |
500 |
3852 |
Bolt-on A |
Ceramic |
20kA1 |
3.92 |
16.5 |
36 |
3 |
3-156-248 |
|
ALO14 |
250 |
500 |
3852 |
Bolt-on A |
Ceramic |
20kA1 |
6.97 |
29.3 |
39 |
3 |
3-156-249 |
|
ALO14 |
300 |
500 |
3852 |
Bolt-on A |
Ceramic |
20kA1 |
10.9 |
45.8 |
48 |
3 |
3-156-250 |
|
ALO14 |
350 |
500 |
3852 |
Bolt-on A |
Ceramic |
20kA1 |
15.7 |
65.9 |
58 |
3 |
3-156-251 |
|
ALO14 |
400 |
500 |
3852 |
Bolt-on A |
Ceramic |
20kA1 |
22.59 |
94.9 |
68 |
3 |
3-156-252 |
|
ALO14 |
450 |
500 |
3852 |
Bolt-on A |
Ceramic |
20kA1 |
27.88 |
117.2 |
76 |
3 |
3-156-253 |
|
ALO14 |
500 |
500 |
3852 |
Bolt-on A |
Ceramic |
20kA1 |
52.07 |
154.9 |
82 |
3 |
3-156-254 |
|
ALO16 |
125 |
500 |
3852 |
Bolt-on B |
Ceramic |
20kA1 |
1 |
4.43 |
16 |
3 |
3-156-263 |
|
ALO16 |
150 |
500 |
3852 |
Bolt-on B |
Ceramic |
20kA1 |
1.525 |
7.32 |
20 |
3 |
3-156-264 |
|
ALO16 |
200 |
500 |
3852 |
Bolt-on B |
Ceramic |
20kA1 |
3.02 |
16.5 |
36 |
3 |
3-156-265 |
|
ALO16 |
250 |
500 |
3852 |
Bolt-on B |
Ceramic |
20kA1 |
6.07 |
29.3 |
39 |
3 |
3-156-266 |
|
ALO16 |
300 |
500 |
3852 |
Bolt-on B |
Ceramic |
20kA1 |
10.9 |
45.8 |
48 |
3 |
3-156-267 |
|
ALO16 |
350 |
500 |
3852 |
Bolt-on B |
Ceramic |
20kA1 |
15.7 |
65.9 |
58 |
3 |
3-156-268 |
|
ALO16 |
400 |
500 |
3852 |
Bolt-on B |
Ceramic |
20kA1 |
22.59 |
94.9 |
68 |
3 |
3-156-269 |
|
ALO16 |
450 |
500 |
3852 |
Bolt-on B |
Ceramic |
20kA1 |
27.88 |
117.2 |
76 |
3 |
3-156-270 |
|
ALO16 |
500 |
500 |
3852 |
Bolt-on B |
Ceramic |
20kA1 |
36.88 |
154.9 |
82 |
3 |
3-156-271 |
|
ALO19 |
250 |
1000 |
5074 |
Bolt-on A |
Ceramic |
30kA3 |
11.501 |
39.94 |
43 |
3 |
3-156-285 |
|
ALO19 |
300 |
1000 |
5074 |
Bolt-on A |
Ceramic |
30kA3 |
15.363 |
53.15 |
54 |
3 |
3-156-286 |
|
ALO19 |
350 |
1000 |
5074 |
Bolt-on A |
Ceramic |
30kA3 |
25.005 |
85.88 |
67 |
3 |
3-156-287 |
|
ALO19 |
400 |
1000 |
5074 |
Bolt-on A |
Ceramic |
30kA3 |
37.358 |
127.4 |
79 |
3 |
3-156-288 |
|
ALO19 |
450 |
1000 |
5074 |
Bolt-on A |
Ceramic |
30kA3 |
52.598 |
178.17 |
95 |
3 |
3-156-289 |
|
ALO19 |
500 |
1000 |
5074 |
Bolt-on A |
Ceramic |
30kA3 |
70.897 |
238.55 |
108 |
3 |
3-156-290 |
|
ALO51 |
100 |
500 |
3153 |
Bolt-on A |
Resin |
20kA1 |
3.1 |
9.3 |
16 |
70 |
3-156-291 |
|
ALO51 |
125 |
500 |
3153 |
Bolt-on A |
Resin |
20kA1 |
4.5 |
14.4 |
18 |
70 |
3-156-292 |
|
ALO51 |
150 |
500 |
3153 |
Bolt-on A |
Resin |
20kA1 |
6.3 |
20.6 |
22 |
70 |
3-156-293 |
|
ALO51 |
200 |
500 |
3153 |
Bolt-on A |
Resin |
20kA1 |
11.1 |
35.2 |
25 |
70 |
3-156-294 |
|
ALO51 |
250 |
500 |
3153 |
Bolt-on A |
Resin |
20kA1 |
17.2 |
57.3 |
30 |
70 |
3-156-295 |
|
ALO51 |
300 |
500 |
3153 |
Bolt-on A |
Resin |
20kA1 |
24.2 |
81.1 |
44 |
70 |
3-156-296 |
|
ALO51 |
350 |
500 |
3153 |
Bolt-on A |
Resin |
20kA1 |
32.5 |
106.4 |
52 |
70 |
3-156-297 |
|
ALO51 |
400 |
500 |
3153 |
Bolt-on A |
Resin |
20kA1 |
42.3 |
140.2 |
68 |
70 |
3-156-298 |
|
ALO52 |
100 |
500 |
3153 |
Bolt-on B |
Resin |
20kA1 |
3.1 |
9.3 |
16 |
70 |
3-156-301 |
|
ALO52 |
125 |
500 |
3153 |
Bolt-on B |
Resin |
20kA1 |
4.5 |
14.4 |
18 |
70 |
3-156-302 |
|
ALO52 |
150 |
500 |
3153 |
Bolt-on B |
Resin |
20kA1 |
6.3 |
20.6 |
22 |
70 |
3-156-303 |
|
ALO52 |
200 |
500 |
3153 |
Bolt-on B |
Resin |
20kA1 |
11.1 |
35.2 |
25 |
70 |
3-156-304 |
|
ALO52 |
250 |
500 |
3153 |
Bolt-on B |
Resin |
20kA1 |
17.2 |
57.3 |
30 |
70 |
3-156-305 |
|
ALO52 |
300 |
500 |
3153 |
Bolt-on B |
Resin |
20kA1 |
24.2 |
81.1 |
44 |
70 |
3-156-306 |
|
ALO52 |
350 |
500 |
3153 |
Bolt-on B |
Resin |
20kA1 |
32.5 |
106.4 |
52 |
70 |
3-156-307 |
|
ALO52 |
400 |
500 |
3153 |
Bolt-on B |
Resin |
20kA1 |
42.3 |
140.2 |
68 |
70 |
3-156-308 |
|
ALO53 |
200 |
500 |
3853 |
Bolt-on A |
Resin |
20kA1 |
11.8 |
35.5 |
36 |
3 |
3-156-311 |
|
ALO53 |
250 |
500 |
3853 |
Bolt-on A |
Resin |
20kA1 |
18.4 |
55.6 |
39 |
3 |
3-156-312 |
|
ALO53 |
300 |
500 |
3853 |
Bolt-on A |
Resin |
20kA1 |
26.5 |
79.3 |
48 |
3 |
3-156-313 |
|
ALO53 |
350 |
500 |
3853 |
Bolt-on A |
Resin |
20kA1 |
36.1 |
108.1 |
58 |
3 |
3-156-314 |
|
ALO53 |
400 |
500 |
3853 |
Bolt-on A |
Resin |
20kA1 |
47.1 |
141.4 |
63 |
3 |
3-156-315 |
|
ALO53 |
450 |
500 |
3853 |
Bolt-on A |
Resin |
20kA1 |
59.6 |
158.9 |
68 |
3 |
3-156-316 |
|
ALO53 |
500 |
500 |
3853 |
Bolt-on A |
Resin |
20kA1 |
73.6 |
178.7 |
73 |
3 |
3-156-317 |
|
ALO53 |
550 |
500 |
3853 |
Bolt-on A |
Resin |
20kA1 |
89.1 |
208.6 |
87 |
3 |
3-156-318 |
|
ALO53 |
630 |
500 |
3853 |
Bolt-on A |
Resin |
20kA1 |
116.9 |
233.3 |
105 |
3 |
3-156-319 |
|
ALO53 |
700 |
500 |
3853 |
Bolt-on A |
Resin |
20kA1 |
144.3 |
253.4 |
118 |
3 |
3-156-320 |
|
ALO54 |
200 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
11.8 |
35.5 |
36 |
3 |
3-156-329 |
|
ALO54 |
225 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
14.9 |
44.7 |
37 |
3 |
3-156-330 |
|
ALO54 |
250 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
18.4 |
55.6 |
39 |
3 |
3-156-331 |
|
ALO54 |
300 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
26.5 |
79.3 |
48 |
3 |
3-156-332 |
|
ALO54 |
350 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
36.1 |
108.1 |
58 |
3 |
3-156-333 |
|
ALO54 |
400 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
47.1 |
141.4 |
63 |
3 |
3-156-334 |
|
ALO54 |
450 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
59.6 |
158.9 |
68 |
3 |
3-156-335 |
|
ALO54 |
500 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
73.6 |
178.7 |
73 |
3 |
3-156-336 |
|
ALO54 |
550 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
89.1 |
208.6 |
87 |
3 |
3-156-337 |
|
ALO54 |
600 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
105.5 |
213 |
99 |
3 |
3-156-338 |
|
ALO54 |
630 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
116.9 |
233.3 |
105 |
3 |
3-156-339 |
|
ALO54 |
700 |
500 |
3853 |
Bolt-on B |
Resin |
20kA1 |
144.3 |
253.4 |
118 |
3 |
3-156-340 |
|
ALO55 |
200 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
11.8 |
35.5 |
36 |
3 |
3-156-350 |
|
ALO55 |
225 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
14.9 |
44.7 |
37 |
3 |
3-156-351 |
|
ALO55 |
250 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
18.4 |
55.6 |
39 |
3 |
3-156-352 |
|
ALO55 |
300 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
26.5 |
79.3 |
48 |
3 |
3-156-353 |
|
ALO55 |
350 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
36.1 |
108.1 |
58 |
3 |
3-156-354 |
|
ALO55 |
400 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
47.1 |
141.4 |
63 |
3 |
3-156-355 |
|
ALO55 |
450 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
59.6 |
158.9 |
68 |
3 |
3-156-356 |
|
ALO55 |
500 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
73.6 |
178.7 |
73 |
3 |
3-156-357 |
|
ALO55 |
550 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
89.1 |
208.6 |
87 |
3 |
3-156-358 |
|
ALO55 |
600 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
105.5 |
213 |
99 |
3 |
3-156-359 |
|
ALO55 |
630 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
116.9 |
233.3 |
105 |
3 |
3-156-360 |
|
ALO55 |
700 |
500 |
3853 |
Bolt-on C |
Resin |
20kA1 |
144.3 |
253.4 |
118 |
3 |
3-156-361 |
|
ALO56 |
200 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
11.8 |
35.5 |
36 |
3 |
3-156-371 |
|
ALO56 |
225 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
14.9 |
44.7 |
37 |
3 |
3-156-372 |
|
ALO56 |
250 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
18.4 |
55.6 |
39 |
3 |
3-156-373 |
|
ALO56 |
300 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
26.5 |
79.3 |
48 |
3 |
3-156-374 |
|
ALO56 |
350 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
36.1 |
108.1 |
58 |
3 |
3-156-375 |
|
ALO56 |
400 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
47.1 |
141.4 |
63 |
3 |
3-156-376 |
|
ALO56 |
450 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
59.6 |
158.9 |
68 |
3 |
3-156-377 |
|
ALO56 |
500 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
73.6 |
178.7 |
73 |
3 |
3-156-378 |
|
ALO56 |
550 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
89.1 |
208.6 |
87 |
3 |
3-156-379 |
|
ALO56 |
600 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
105.5 |
213 |
99 |
3 |
3-156-380 |
|
ALO56 |
630 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
116.9 |
233.3 |
105 |
3 |
3-156-381 |
|
ALO56 |
700 |
500 |
3853 |
Bolt-on D |
Resin |
20kA1 |
144.3 |
253.4 |
118 |
3 |
3-156-382 |
|
ALO58 |
250 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
17.68 |
61.88 |
31 |
1 |
3-156-388 |
|
ALO58 |
275 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
19.86 |
69.51 |
33 |
1 |
3-156-389 |
|
ALO58 |
300 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
29.1 |
101.85 |
37 |
1 |
3-156-390 |
|
ALO58 |
315 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
30.1 |
115.35 |
38 |
1 |
3-156-391 |
|
ALO58 |
350 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
43.89 |
153.615 |
44 |
1 |
3-156-392 |
|
ALO58 |
400 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
62.32 |
218.12 |
50 |
1 |
3-156-393 |
|
ALO58 |
450 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
72.98 |
255.43 |
62 |
1 |
3-156-394 |
|
ALO58 |
500 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
97.35 |
340.725 |
68 |
1 |
3-156-395 |
|
ALO58 |
550 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
121.35 |
424.75 |
70 |
1 |
3-156-396 |
|
ALO58 |
600 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
167.8 |
587.3 |
78 |
1 |
3-156-397 |
|
ALO58 |
630 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
177.6 |
621.6 |
79 |
1 |
3-156-398 |
|
ALO58 |
700 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
240.2 |
840.7 |
91 |
1 |
3-156-399 |
|
ALO58 |
750 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
280.8 |
982.8 |
94 |
1 |
3-156-400 |
|
ALO58 |
800 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
371.8 |
1301.3 |
99 |
1 |
3-156-401 |
|
ALO58 |
850 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
401.7 |
1405.95 |
106 |
1 |
3-156-402 |
|
ALO58 |
900 |
750 |
5072 |
Bolt-on A |
Resin |
50kA4 |
541 |
1893.5 |
108 |
1 |
3-156-403 |
|
ALO59 |
250 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
24.9 |
77.7 |
27 |
1 |
3-156-404 |
|
ALO59 |
300 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
27 |
84.3 |
32 |
1 |
3-156-405 |
|
ALO59 |
325 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
29.7 |
92.7 |
35 |
1 |
3-156-406 |
|
ALO59 |
350 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
42.9 |
134 |
38 |
1 |
3-156-407 |
|
ALO59 |
400 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
66.3 |
207 |
43 |
1 |
3-156-408 |
|
ALO59 |
450 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
70.6 |
220.7 |
48 |
1 |
3-156-409 |
|
ALO59 |
500 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
96.7 |
302.1 |
54 |
1 |
3-156-410 |
|
ALO59 |
550 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
112.4 |
351.3 |
59 |
1 |
3-156-411 |
|
ALO59 |
600 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
123.2 |
385 |
64 |
1 |
3-156-412 |
|
ALO59 |
650 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
133.9 |
418.5 |
70 |
1 |
3-156-413 |
|
ALO59 |
700 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
144.3 |
451 |
75 |
1 |
3-156-414 |
|
ALO59 |
800 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
219.7 |
686.6 |
85 |
1 |
3-156-415 |
|
ALO59 |
900 |
1000 |
5072 |
Bolt-on A |
Resin |
50kA4 |
281.6 |
880.1 |
96 |
1 |
3-156-416 |
1 20kA, L/R 2ms
2 25kA, L/R 2ms
3 30kA, L/R 5ms
4 50kA, L/R 10ms
Downloads & Documentation
ALO Datasheet
Buy Schurter ALO From the Official UK Distributor
Dalroad is the official UK distributor for Schurter. We have reliable stock of all their high voltage fuses, while our team supports design engineers through component selection, system integration and supply planning for safety-critical EV applications. Submit an enquiry to book a call with our technical experts or request a sample.
