Schurter ADO 10x38 EV High Voltage DC Fuse
10 x 38 mm | 500/750/850/1000VDC | 10–63A | Bolt-on & PCB
Schurter ADO EV Fuse Overview

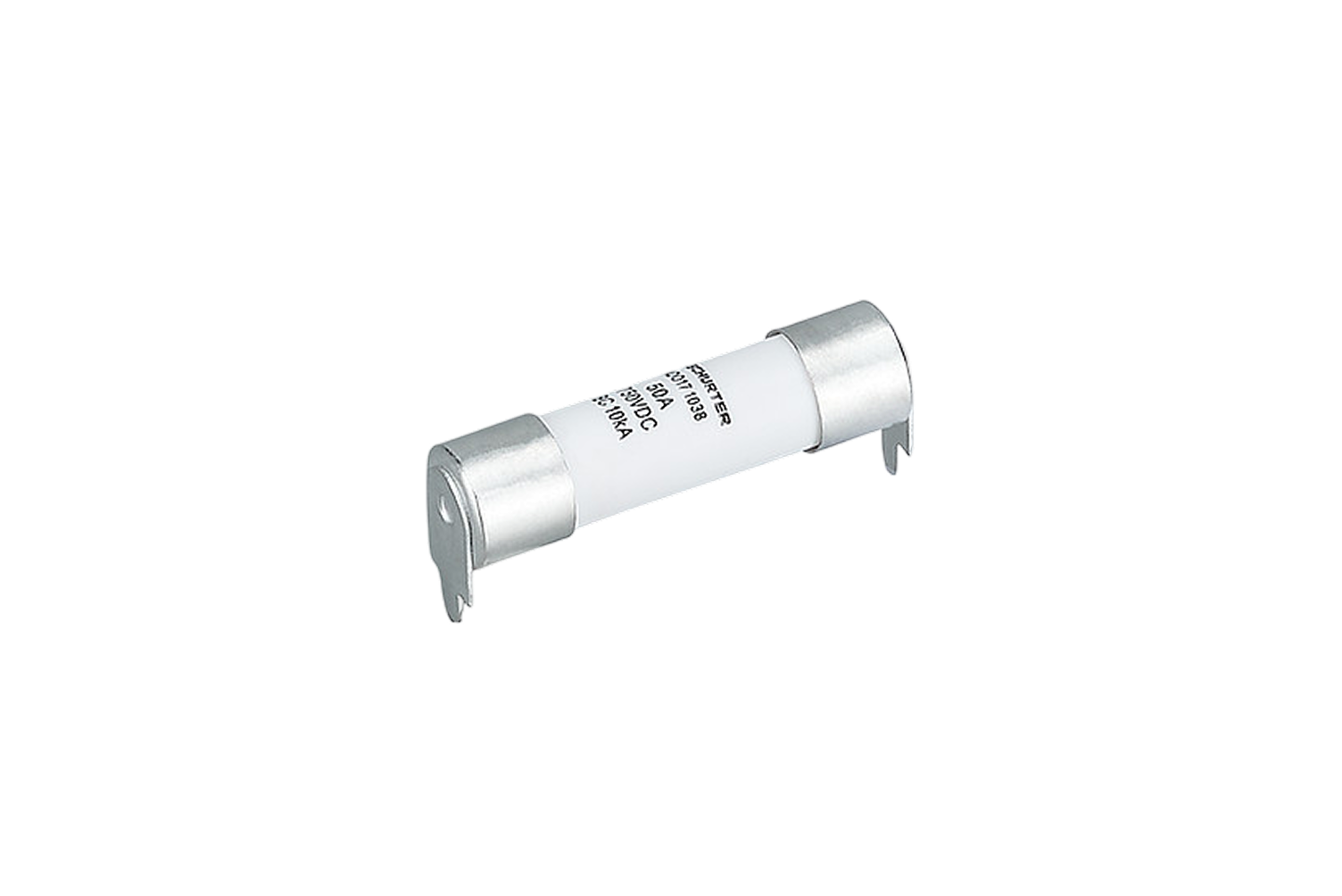

The Schurter ADO is a high voltage DC fuse in the 10 x 38 mm format, designed specifically for electric vehicle applications. Available across four voltage ratings – 500, 750, 850 and 1000VDC – with a breaking capacity of 20kA, it covers a wider voltage range than the AMO series, making it suitable for higher voltage EV architectures including 800V battery platforms. Current ratings run from 10A to 63A across bolt-on and PCB mounting configurations.
The ADO is engineered for the demanding conditions of automotive environments, with validated resistance to mechanical vibration, shock and chemical exposure.
-
Product features
-

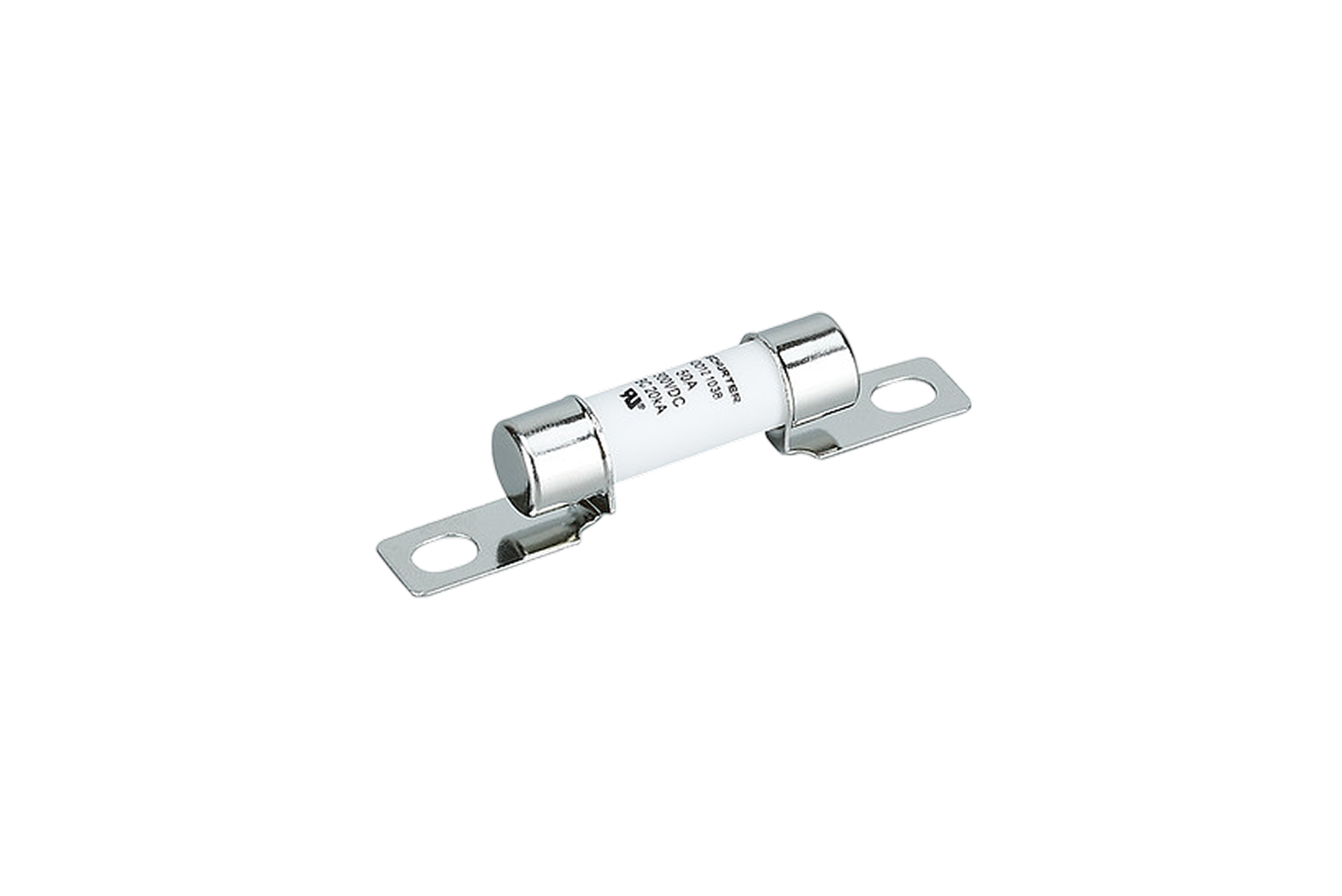

Three bolt-on configurations available: Bolt-on A, Bolt-on B, Bolt-on Z
Copper alloy terminals, tin or nickel plated depending on variant
Ceramic tube with copper alloy endcaps
Vibration tested to IEC 60068-2-64; shock tested to IEC 60068-2-27
Designed to UL 248-20, ISO 8820-8, GB/T31465.6 and JASO D622
UL approved (File No. E548130); CE marked
RoHS, REACH and China RoHS compliant
-
Compatible Applications
The ADO series is designed for use across a range of high voltage DC systems in electric vehicles and associated infrastructure:
-
Battery management systems
On-board battery chargers
DC/DC converters
Air-conditioning compressors
PTC heaters
PDU: motor control unit / controller
ADO Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated voltage | 500 / 750 / 850 / 1000VDC |
| Rated current | 10–63A |
| Breaking capacity | 20kA |
| Characteristic | EV Fuse |
| Mounting | PCB/THT, Bolt-on |
| Operating temperature | -40°C to +125°C |
| Storage conditions | -40°C to +70°C, max. 70% r.h. |
| Terminal material | Copper alloy, tin or nickel plated |
| Tube material | Ceramic |
| Endcap material | Copper alloy |
| Packaging unit | Bulk (60 pcs.) |
| Approvals | UL (E548130), CE |
| Compliances | RoHS, REACH, China RoHS |
| Product standards | UL 248-20, ISO 8820-8, GB/T31465.6, JASO D622 |
ADO Variants & Order Codes
|
Series |
Current (A) |
Voltage (VDC) |
Mounting |
Terminal Plating |
Breaking Capacity |
Pre-arcing I²t typ. (kA²s) |
Melting I²t typ. (kA²s) |
Power Dissipation typ. (W) |
Order No. |
|---|---|---|---|---|---|---|---|---|---|
|
ADO11 |
10 |
500 |
Bolt-on Z |
Tin-plated |
20kA1 |
0.005 |
0.03 |
2 |
3-156-001 |
|
ADO11 |
15 |
500 |
Bolt-on Z |
Tin-plated |
20kA1 |
0.02 |
0.04 |
2.5 |
3-156-012 |
|
ADO11 |
20 |
500 |
Bolt-on Z |
Tin-plated |
20kA1 |
0.03 |
0.05 |
3.9 |
3-156-013 |
|
ADO11 |
25 |
500 |
Bolt-on Z |
Tin-plated |
20kA1 |
0.045 |
0.08 |
5.1 |
3-156-014 |
|
ADO11 |
30 |
500 |
Bolt-on Z |
Tin-plated |
20kA1 |
0.095 |
0.16 |
5.8 |
3-156-015 |
|
ADO11 |
32 |
500 |
Bolt-on Z |
Tin-plated |
20kA1 |
0.125 |
0.24 |
6 |
3-156-016 |
|
ADO11 |
40 |
500 |
Bolt-on Z |
Tin-plated |
20kA1 |
0.18 |
0.32 |
7.8 |
3-156-017 |
|
ADO11 |
50 |
500 |
Bolt-on Z |
Tin-plated |
20kA1 |
0.34 |
0.54 |
8.7 |
3-156-018 |
|
ADO11 |
63 |
500 |
Bolt-on Z |
Tin-plated |
20kA1 |
0.45 |
1.69 |
14 |
3-156-019 |
|
ADO12 |
10 |
500 |
Bolt-on B |
Nickel-plated |
20kA1 |
0.005 |
0.03 |
2 |
3-156-020 |
|
ADO12 |
15 |
500 |
Bolt-on B |
Nickel-plated |
20kA1 |
0.02 |
0.04 |
2.5 |
3-156-021 |
|
ADO12 |
20 |
500 |
Bolt-on B |
Nickel-plated |
20kA1 |
0.025 |
0.07 |
3.9 |
3-156-022 |
|
ADO12 |
25 |
500 |
Bolt-on B |
Nickel-plated |
20kA1 |
0.04 |
0.12 |
5.1 |
3-156-023 |
|
ADO12 |
30 |
500 |
Bolt-on B |
Nickel-plated |
20kA1 |
0.053 |
0.16 |
5.8 |
3-156-024 |
|
ADO12 |
32 |
500 |
Bolt-on B |
Nickel-plated |
20kA1 |
0.07 |
0.21 |
6 |
3-156-025 |
|
ADO12 |
40 |
500 |
Bolt-on B |
Nickel-plated |
20kA1 |
0.16 |
0.32 |
7.8 |
3-156-026 |
|
ADO12 |
50 |
500 |
Bolt-on B |
Nickel-plated |
20kA1 |
0.222 |
0.65 |
8.7 |
3-156-027 |
|
ADO12 |
63 |
500 |
Bolt-on B |
Nickel-plated |
20kA1 |
0.431 |
1.26 |
14 |
3-156-028 |
|
ADO13 |
10 |
750 |
Bolt-on A |
Tin-plated |
20kA2 |
0.004 |
0.014 |
2 |
3-156-029 |
|
ADO13 |
15 |
750 |
Bolt-on A |
Tin-plated |
20kA2 |
0.012 |
0.033 |
2.5 |
3-156-030 |
|
ADO13 |
20 |
750 |
Bolt-on A |
Tin-plated |
20kA2 |
0.016 |
0.054 |
3.9 |
3-156-031 |
|
ADO13 |
25 |
750 |
Bolt-on A |
Tin-plated |
20kA2 |
0.041 |
0.144 |
5.1 |
3-156-032 |
|
ADO13 |
30 |
750 |
Bolt-on A |
Tin-plated |
20kA2 |
0.069 |
0.248 |
5.8 |
3-156-033 |
|
ADO13 |
40 |
750 |
Bolt-on A |
Tin-plated |
20kA2 |
0.123 |
0.449 |
7.8 |
3-156-034 |
|
ADO13 |
50 |
750 |
Bolt-on A |
Tin-plated |
20kA2 |
0.224 |
0.828 |
11 |
3-156-035 |
|
ADO13 |
60 |
750 |
Bolt-on A |
Tin-plated |
20kA2 |
0.288 |
1.08 |
14 |
3-156-036 |
|
ADO14 |
10 |
1000 |
Bolt-on Z |
Tin-plated |
20kA4 |
0.07 |
0.23 |
2 |
3-156-037 |
|
ADO14 |
15 |
1000 |
Bolt-on Z |
Tin-plated |
20kA4 |
0.09 |
0.29 |
2.6 |
3-156-038 |
|
ADO14 |
20 |
1000 |
Bolt-on Z |
Tin-plated |
20kA4 |
0.12 |
0.39 |
3.5 |
3-156-039 |
|
ADO14 |
25 |
1000 |
Bolt-on Z |
Tin-plated |
20kA4 |
0.15 |
0.49 |
4.1 |
3-156-040 |
|
ADO14 |
30 |
1000 |
Bolt-on Z |
Tin-plated |
20kA4 |
0.21 |
0.68 |
4.8 |
3-156-041 |
|
ADO14 |
40 |
1000 |
Bolt-on Z |
Tin-plated |
20kA4 |
0.31 |
1.01 |
6.5 |
3-156-042 |
|
ADO15 |
10 |
1000 |
Bolt-on A |
Tin-plated |
20kA4 |
0.07 |
0.23 |
2 |
3-156-044 |
|
ADO15 |
15 |
1000 |
Bolt-on A |
Tin-plated |
20kA4 |
0.09 |
0.29 |
2.6 |
3-156-045 |
|
ADO15 |
20 |
1000 |
Bolt-on A |
Tin-plated |
20kA4 |
0.12 |
0.39 |
3.5 |
3-156-046 |
|
ADO15 |
25 |
1000 |
Bolt-on A |
Tin-plated |
20kA4 |
0.15 |
0.49 |
4.1 |
3-156-047 |
|
ADO15 |
30 |
1000 |
Bolt-on A |
Tin-plated |
20kA4 |
0.21 |
0.68 |
4.8 |
3-156-048 |
|
ADO15 |
40 |
1000 |
Bolt-on A |
Tin-plated |
20kA4 |
0.31 |
1.01 |
6.5 |
3-156-049 |
|
ADO16 |
10 |
500 |
PCB |
Tin-plated |
20kA1 |
0.005 |
0.03 |
2 |
3-156-051 |
|
ADO16 |
15 |
500 |
PCB |
Tin-plated |
20kA1 |
0.02 |
0.04 |
2.5 |
3-156-052 |
|
ADO16 |
20 |
500 |
PCB |
Tin-plated |
20kA1 |
0.025 |
0.07 |
3.9 |
3-156-053 |
|
ADO16 |
25 |
500 |
PCB |
Tin-plated |
20kA1 |
0.04 |
0.12 |
5.1 |
3-156-054 |
|
ADO16 |
30 |
500 |
PCB |
Tin-plated |
20kA1 |
0.053 |
0.16 |
5.8 |
3-156-055 |
|
ADO16 |
32 |
500 |
PCB |
Tin-plated |
20kA1 |
0.07 |
0.21 |
6 |
3-156-056 |
|
ADO16 |
40 |
500 |
PCB |
Tin-plated |
20kA1 |
0.16 |
0.32 |
7.8 |
3-156-057 |
|
ADO16 |
50 |
500 |
PCB |
Tin-plated |
20kA1 |
0.222 |
0.65 |
8.7 |
3-156-058 |
|
ADO16 |
63 |
500 |
PCB |
Tin-plated |
20kA1 |
0.431 |
1.26 |
14 |
3-156-059 |
|
ADO17 |
10 |
750 |
PCB |
Tin-plated |
20kA2 |
0.004 |
0.014 |
2 |
3-156-060 |
|
ADO17 |
15 |
750 |
PCB |
Tin-plated |
20kA2 |
0.012 |
0.033 |
2.5 |
3-156-061 |
|
ADO17 |
20 |
750 |
PCB |
Tin-plated |
20kA2 |
0.016 |
0.054 |
3.9 |
3-156-062 |
|
ADO17 |
25 |
750 |
PCB |
Tin-plated |
20kA2 |
0.041 |
0.144 |
5.1 |
3-156-063 |
|
ADO17 |
30 |
750 |
PCB |
Tin-plated |
20kA2 |
0.069 |
0.248 |
5.8 |
3-156-064 |
|
ADO17 |
40 |
750 |
PCB |
Tin-plated |
20kA2 |
0.123 |
0.449 |
7.8 |
3-156-065 |
|
ADO17 |
50 |
750 |
PCB |
Tin-plated |
20kA2 |
0.224 |
0.828 |
14 |
3-156-066 |
|
ADO18 |
10 |
850 |
PCB |
Tin-plated |
20kA3 |
0.07 |
0.23 |
2 |
3-156-067 |
|
ADO18 |
15 |
850 |
PCB |
Tin-plated |
20kA3 |
0.09 |
0.29 |
2.6 |
3-156-068 |
|
ADO18 |
20 |
850 |
PCB |
Tin-plated |
20kA3 |
0.12 |
0.39 |
3.5 |
3-156-069 |
|
ADO18 |
25 |
850 |
PCB |
Tin-plated |
20kA3 |
0.15 |
0.49 |
4.1 |
3-156-070 |
|
ADO18 |
30 |
850 |
PCB |
Tin-plated |
20kA3 |
0.21 |
0.68 |
4.8 |
3-156-071 |
|
ADO18 |
40 |
850 |
PCB |
Tin-plated |
20kA3 |
0.31 |
1.01 |
6.5 |
3-156-072 |
|
ADO18 |
50 |
850 |
PCB |
Tin-plated |
20kA3 |
0.45 |
1.47 |
7.2 |
3-156-073 |
|
ADO19 |
10 |
1000 |
PCB |
Tin-plated |
20kA4 |
0.07 |
0.23 |
2 |
3-156-074 |
|
ADO19 |
15 |
1000 |
PCB |
Tin-plated |
20kA4 |
0.09 |
0.29 |
2.6 |
3-156-075 |
|
ADO19 |
20 |
1000 |
PCB |
Tin-plated |
20kA4 |
0.12 |
0.39 |
3.5 |
3-156-076 |
|
ADO19 |
25 |
1000 |
PCB |
Tin-plated |
20kA4 |
0.15 |
0.49 |
4.1 |
3-156-077 |
|
ADO19 |
30 |
1000 |
PCB |
Tin-plated |
20kA4 |
0.21 |
0.68 |
4.8 |
3-156-078 |
|
ADO19 |
40 |
1000 |
PCB |
Tin-plated |
20kA4 |
0.31 |
1.01 |
6.5 |
3-156-079 |
1 20kA @ 500VDC, L/R 2ms
2 20kA @ 750VDC, L/R 2ms
3 20kA @ 850VDC, L/R 2ms
4 20kA @ 1000VDC, L/R 1ms
