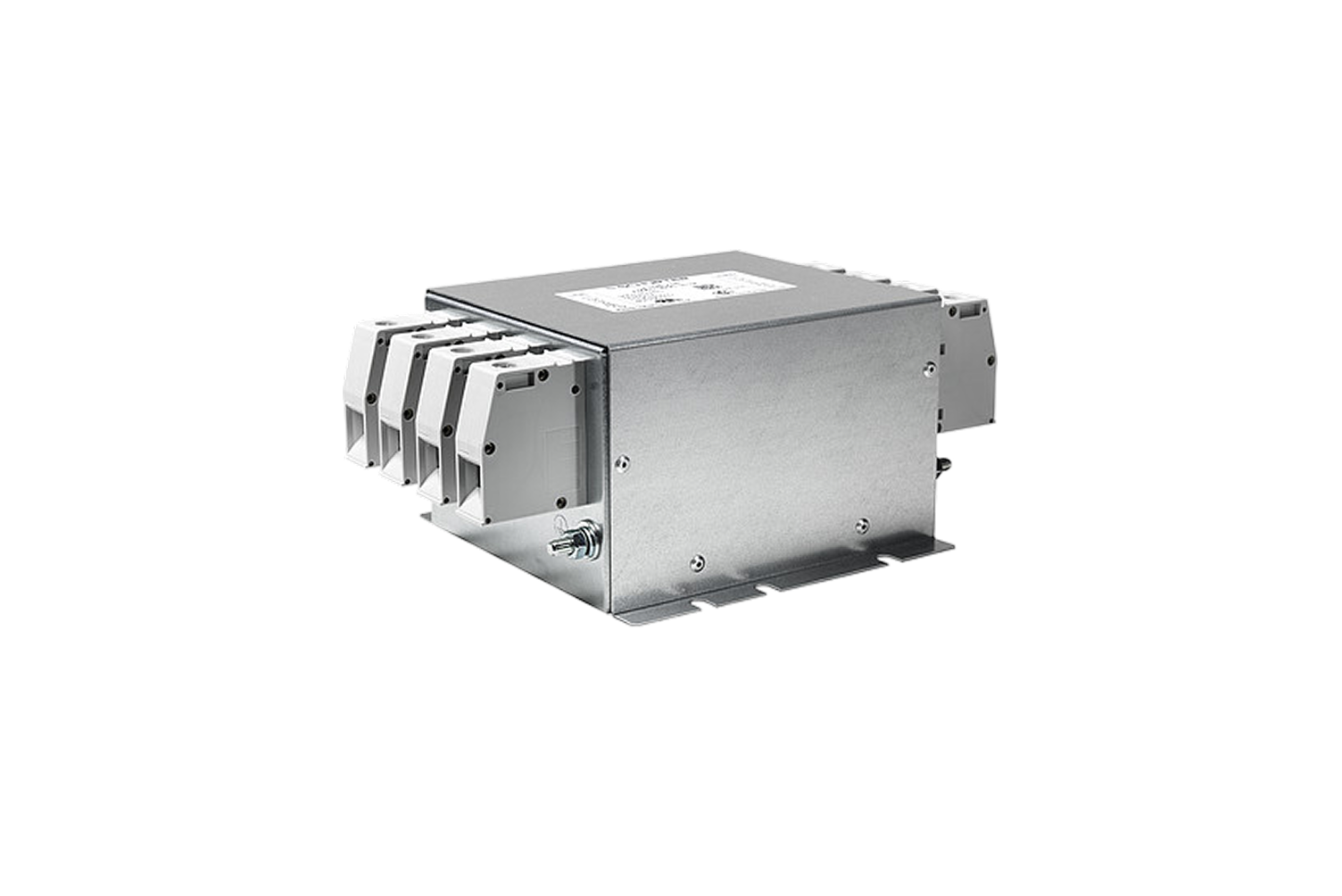

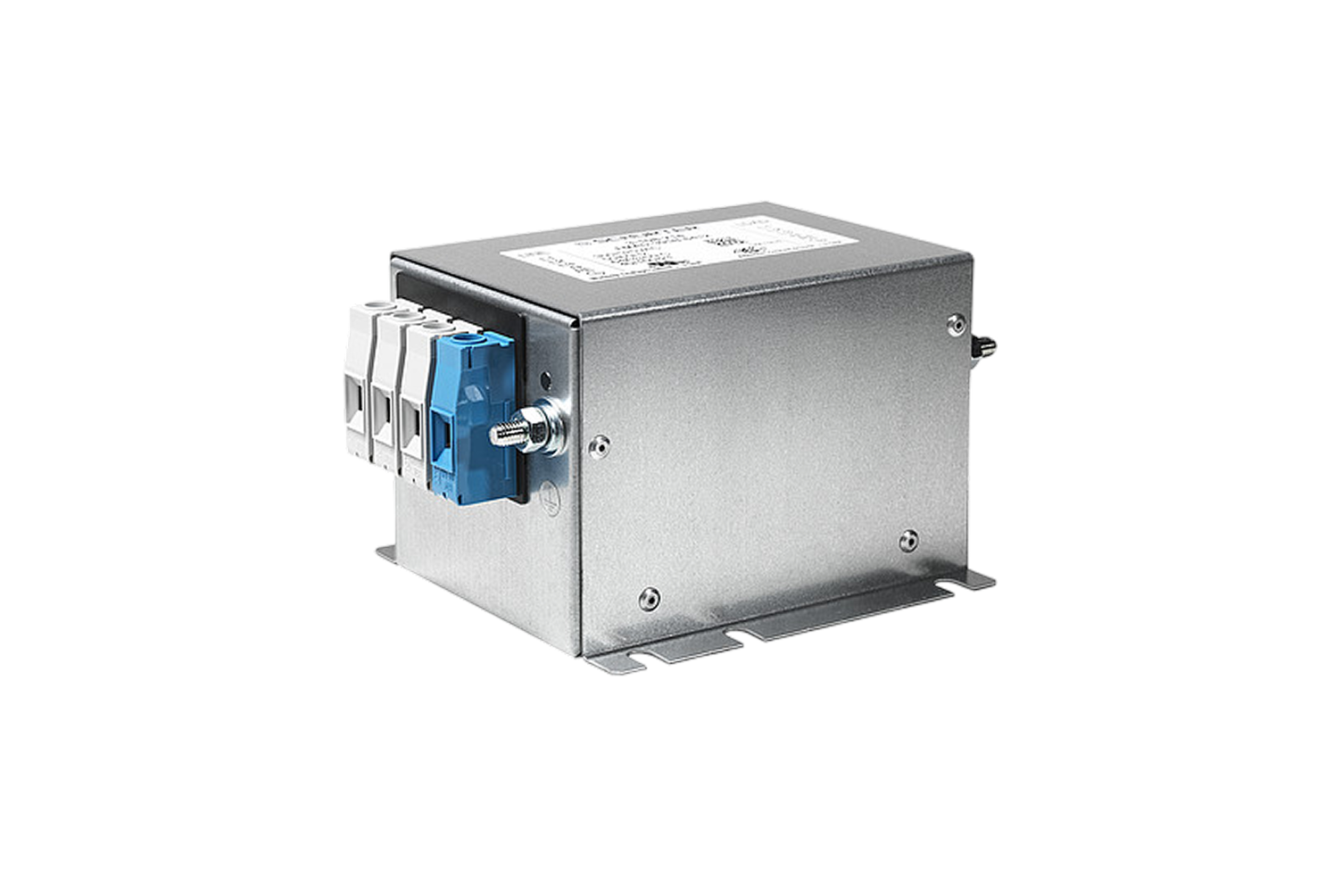

Schurter FMBD EP Two-Stage Three-Phase EMC Filter With Neutral
Chassis Mount | 520/760 VAC | 16–230 A | 2-Stage | With Neutral | Machine Safety | Industrial & Low Leakage
Schurter FMBD EP Two-Stage Three-Phase EMC Filter With Neutral Overview
The Schurter FMBD EP is a two-stage three-phase EMC filter for systems with a neutral conductor (L1, L2, L3, N, PE), rated 16–230 A at 520 VAC or 760 VAC from -40°C to 100°C. It is the four-wire companion to the FMBC EP — both products share the same current range, voltage options, housing sizes and Machine Safety variant structure, the sole differentiator being the inclusion of the neutral conductor. Industrial and low-leakage versions are available (low leakage up to 64 A), with Machine Safety variants (IEC 60204-1) across both types in the 3-138-xxx order series.
-
Features
-
- 4-wire filter (L1, L2, L3, N, PE); 520 VAC and 760 VAC
- Two-stage topology; industrial and low leakage versions
- Machine Safety variants (IEC 60204-1) available across full range
- Operating temperature -40°C to 100°C
- VDE certificate 40053230; UL file E495089
- IEC/UL 62368-1 application standard
- CE, UKCA, RoHS, China RoHS, REACH compliant
- Packaging: 1 pc
-
Compatible Applications
For high-voltage two-stage three-phase EMC filtering in 4-wire systems with machine safety requirements:
-
- Industrial drives in systems with neutral conductor at 520–760 VAC
- Machine tools and CNC systems (machine safety variants, IEC 60204-1)
- Three-phase power conversion with neutral in industrial environments
- Large-scale process machinery with 4-wire supply
- High-voltage industrial equipment for North American and European markets
FMBD EP Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 520 VAC / 760 VAC |
| Rated Current | 16–230 A |
| Frequency | 50/60 Hz |
| Filter Stages | 2 |
| Phase Configuration | 3-phase with neutral (L1, L2, L3, N, PE) |
| Operating Temperature | -40°C to 100°C |
| Mounting | Chassis screw |
| Terminal | Screw clamps, 4–95 mm² |
| Housing Material | Metal |
| IP Rating | IP20 |
| Leakage Current (Industrial, 520 V) | 6.82–9.42 mA |
| Leakage Current (Low Leakage, 520 V) | 2.55–2.56 mA (up to 64 A) |
| Leakage Current (Industrial, 760 V) | 6.37–8.97 mA |
| Leakage Current (Low Leakage, 760 V) | 2.11 mA (up to 64 A) |
| Machine Safety | IEC 60204-1 (3-138-xxx series) |
| VDE Certificate | 40053230 |
| UL File | E495089 |
| Application Standards | IEC/UL 62368-1 |
| Compliances | CE, UKCA, RoHS, China RoHS, REACH |
| Packaging | 1 pc |
FMBD EP Variants & Order Codes
|
Order No. |
Current (A) |
Voltage (VAC) |
Filter Type |
Machine Safety |
Leakage (mA) |
Housing |
Pkg |
|---|---|---|---|---|---|---|---|
|
3-128-371 |
16 |
520 |
Industrial |
No |
6.82 |
5A-4 |
1 |
|
3-128-412 |
25 |
520 |
Industrial |
No |
9.42 |
5A-10 |
1 |
|
3-128-413 |
36 |
520 |
Industrial |
No |
9.42 |
5B-10 |
1 |
|
3-128-414 |
50 |
520 |
Industrial |
No |
9.42 |
5B-10 |
1 |
|
3-128-415 |
64 |
520 |
Industrial |
No |
9.42 |
5B-16 |
1 |
|
3-128-416 |
80 |
520 |
Industrial |
No |
9.42 |
5C-25 |
1 |
|
3-128-417 |
110 |
520 |
Industrial |
No |
9.42 |
5C-50 |
1 |
|
3-128-418 |
180 |
520 |
Industrial |
No |
8.97 |
5D |
1 |
|
3-128-419 |
230 |
520 |
Industrial |
No |
8.97 |
5D |
1 |
|
3-128-420 |
16 |
520 |
Low Leakage |
No |
2.55 |
5A-4 |
1 |
|
3-128-421 |
25 |
520 |
Low Leakage |
No |
2.55 |
5A-10 |
1 |
|
3-128-422 |
36 |
520 |
Low Leakage |
No |
2.56 |
5B-10 |
1 |
|
3-128-423 |
50 |
520 |
Low Leakage |
No |
2.56 |
5B-10 |
1 |
|
3-128-424 |
64 |
520 |
Low Leakage |
No |
2.56 |
5B-16 |
1 |
|
3-128-425 |
16 |
760 |
Industrial |
No |
6.37 |
5A-4 |
1 |
|
3-128-426 |
25 |
760 |
Industrial |
No |
6.37 |
5A-10 |
1 |
|
3-128-427 |
36 |
760 |
Industrial |
No |
6.37 |
5B-10 |
1 |
|
3-128-428 |
50 |
760 |
Industrial |
No |
6.37 |
5B-10 |
1 |
|
3-128-429 |
64 |
760 |
Industrial |
No |
6.37 |
5B-16 |
1 |
|
3-128-430 |
80 |
760 |
Industrial |
No |
8.97 |
5C-25 |
1 |
|
3-128-431 |
110 |
760 |
Industrial |
No |
8.97 |
5C-50 |
1 |
|
3-128-432 |
180 |
760 |
Industrial |
No |
8.97 |
5D |
1 |
|
3-128-433 |
230 |
760 |
Industrial |
No |
8.97 |
5D |
1 |
|
3-128-434 |
16 |
760 |
Low Leakage |
No |
2.11 |
5A-4 |
1 |
|
3-128-435 |
25 |
760 |
Low Leakage |
No |
2.11 |
5A-10 |
1 |
|
3-128-436 |
36 |
760 |
Low Leakage |
No |
2.11 |
5B-10 |
1 |
|
3-128-437 |
50 |
760 |
Low Leakage |
No |
2.11 |
5B-10 |
1 |
|
3-128-438 |
64 |
760 |
Low Leakage |
No |
2.11 |
5B-16 |
1 |
|
3-138-349 |
16 |
520 |
Industrial |
Yes (IEC 60204-1) |
6.82 |
5A-4 |
1 |
|
3-138-350 |
25 |
520 |
Industrial |
Yes (IEC 60204-1) |
9.42 |
5A-10 |
1 |
|
3-138-351 |
36 |
520 |
Industrial |
Yes (IEC 60204-1) |
9.42 |
5B-10 |
1 |
|
3-138-352 |
50 |
520 |
Industrial |
Yes (IEC 60204-1) |
9.42 |
5B-10 |
1 |
|
3-138-353 |
64 |
520 |
Industrial |
Yes (IEC 60204-1) |
9.42 |
5B-16 |
1 |
|
3-138-354 |
80 |
520 |
Industrial |
Yes (IEC 60204-1) |
9.42 |
5C-25 |
1 |
|
3-138-355 |
110 |
520 |
Industrial |
Yes (IEC 60204-1) |
9.42 |
5C-50 |
1 |
|
3-138-356 |
180 |
520 |
Industrial |
Yes (IEC 60204-1) |
8.97 |
5D |
1 |
|
3-138-357 |
230 |
520 |
Industrial |
Yes (IEC 60204-1) |
8.97 |
5D |
1 |
|
3-138-358 |
16 |
520 |
Low Leakage |
Yes (IEC 60204-1) |
2.55 |
5A-4 |
1 |
|
3-138-359 |
25 |
520 |
Low Leakage |
Yes (IEC 60204-1) |
2.55 |
5A-10 |
1 |
|
3-138-360 |
36 |
520 |
Low Leakage |
Yes (IEC 60204-1) |
2.56 |
5B-10 |
1 |
|
3-138-361 |
50 |
520 |
Low Leakage |
Yes (IEC 60204-1) |
2.56 |
5B-10 |
1 |
|
3-138-362 |
64 |
520 |
Low Leakage |
Yes (IEC 60204-1) |
2.56 |
5B-16 |
1 |
|
3-138-363 |
16 |
760 |
Industrial |
Yes (IEC 60204-1) |
6.37 |
5A-4 |
1 |
|
3-138-364 |
25 |
760 |
Industrial |
Yes (IEC 60204-1) |
6.37 |
5A-10 |
1 |
|
3-138-365 |
36 |
760 |
Industrial |
Yes (IEC 60204-1) |
6.37 |
5B-10 |
1 |
|
3-138-366 |
50 |
760 |
Industrial |
Yes (IEC 60204-1) |
6.37 |
5B-10 |
1 |
|
3-138-367 |
64 |
760 |
Industrial |
Yes (IEC 60204-1) |
6.37 |
5B-16 |
1 |
|
3-138-368 |
80 |
760 |
Industrial |
Yes (IEC 60204-1) |
8.97 |
5C-25 |
1 |
|
3-138-369 |
110 |
760 |
Industrial |
Yes (IEC 60204-1) |
8.97 |
5C-50 |
1 |
|
3-138-370 |
180 |
760 |
Industrial |
Yes (IEC 60204-1) |
8.97 |
5D |
1 |
|
3-138-371 |
230 |
760 |
Industrial |
Yes (IEC 60204-1) |
8.97 |
5D |
1 |
|
3-138-372 |
16 |
760 |
Low Leakage |
Yes (IEC 60204-1) |
2.11 |
5A-4 |
1 |
|
3-138-373 |
25 |
760 |
Low Leakage |
Yes (IEC 60204-1) |
2.11 |
5A-10 |
1 |
|
3-138-374 |
36 |
760 |
Low Leakage |
Yes (IEC 60204-1) |
2.11 |
5B-10 |
1 |
|
3-138-375 |
50 |
760 |
Low Leakage |
Yes (IEC 60204-1) |
2.11 |
5B-10 |
1 |
|
3-138-376 |
64 |
760 |
Low Leakage |
Yes (IEC 60204-1) |
2.11 |
5B-16 |
1 |
Low leakage current version is only available up to 64 A.
Downloads & Documentation
FMBD EP Datasheet
