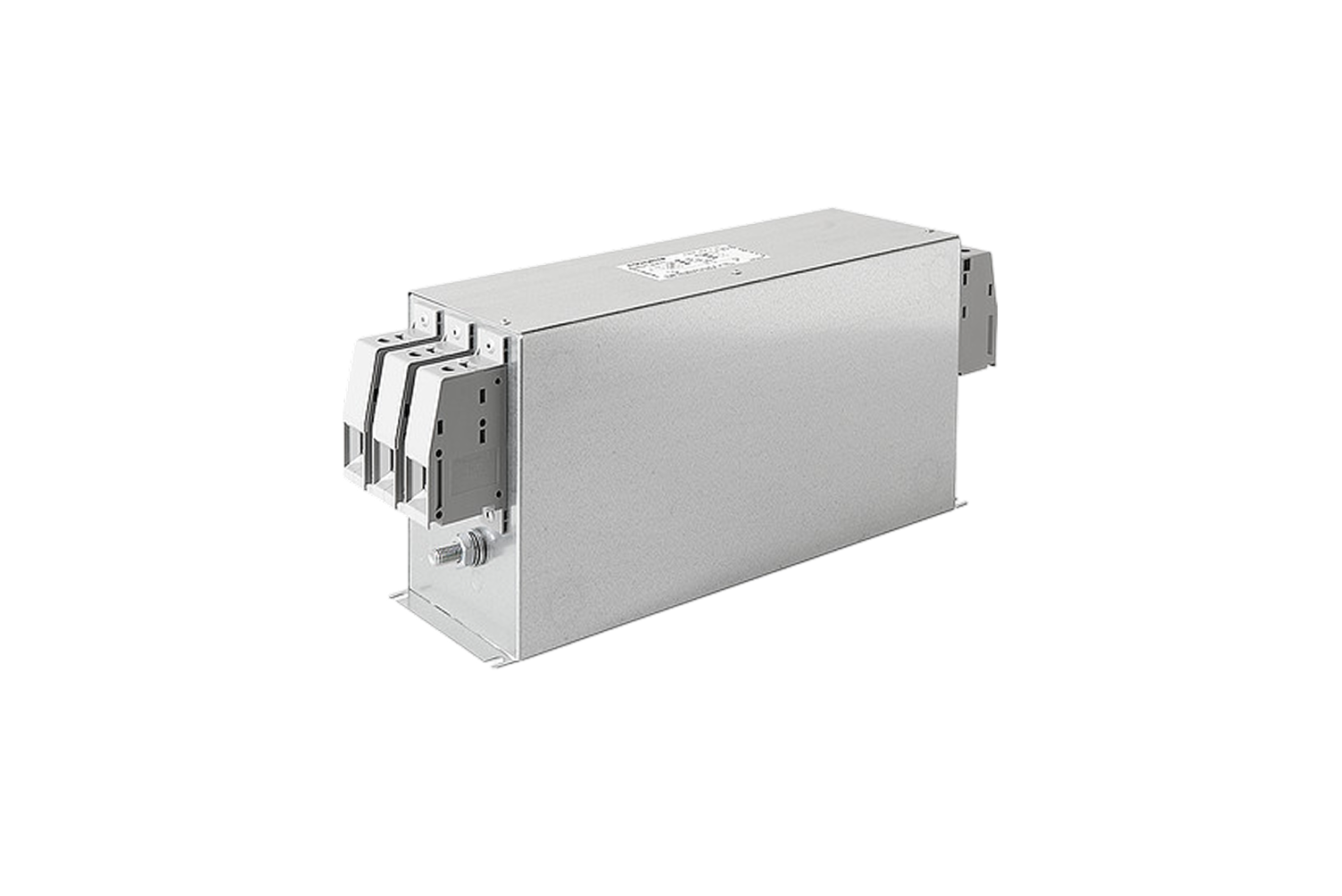

Schurter FMBC NEO Two-Stage Three-Phase EMC Filter
Chassis Mount | 480/520 VAC | 7–180 A | 2-Stage | Industrial
Schurter FMBC NEO Two-Stage Three-Phase EMC Filter Overview
The Schurter FMBC NEO is a two-stage three-phase EMC filter for three-wire systems (without neutral), rated 7–180 A at 480 VAC or 520 VAC from -25°C to 100°C. The two-stage topology provides substantially greater attenuation than a single-stage filter, making it well suited to equipment with tight conducted-emission limits. Industrial leakage only (10.2 mA). Metal housing with screw clamp terminals; 480 V and 520 V variants are available across the full current range.
-
Features
-
- Two-stage topology; 480 VAC and 520 VAC variants
- 3-phase, without neutral; industrial leakage (10.2 mA)
- Metal housing; screw clamp terminals
- IP20; Protection Class I
- VDE certificate 40029853; UL file E72928
- IEC/UL 62368-1 application standard
- CE, UKCA, RoHS, China RoHS, REACH compliant
-
Compatible Applications
For two-stage three-phase EMC filtering in industrial applications with demanding emissions requirements:
-
- Industrial drives and high-frequency inverters
- Three-phase power conversion and rectifier systems
- Large switched-mode power supplies
- CNC machine tool power inputs
- Industrial process control equipment
FMBC NEO Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 480 VAC / 520 VAC |
| Rated Current | 7–180 A |
| Frequency | 50/60 Hz |
| Filter Stages | 2 |
| Phase Configuration | 3-phase, without neutral |
| Operating Temperature | -25°C to 100°C |
| Mounting | Chassis screw |
| Terminal | Screw clamps |
| Housing Material | Metal |
| IP Rating | IP20 |
| Leakage Current | 10.2 mA (industrial) |
| VDE Certificate | 40029853 |
| UL File | E72928 |
| Application Standards | IEC/UL 62368-1 |
| Compliances | CE, UKCA, RoHS, China RoHS, REACH |
FMBC NEO Variants & Order Codes
|
Order No. |
Current (A) |
Voltage (VAC) |
Housing |
Weight (kg) |
Pkg |
|---|---|---|---|---|---|
|
FMBC-A91U-0710 |
7 |
480 |
1U |
0.8 |
3 |
|
FMBC-A91C-1610 |
16 |
480 |
1C |
1.1 |
3 |
|
FMBC-A91Q-3010 |
30 |
480 |
1Q |
1.5 |
4 |
|
FMBC-A91R-4210 |
42 |
480 |
1R |
1.9 |
3 |
|
FMBC-A91S-5510 |
55 |
480 |
1S |
2.5 |
2 |
|
FMBC-A91F-7510 |
75 |
480 |
1F |
3.8 |
1 |
|
FMBC-A91G-J010 |
100 |
480 |
1G |
5.0 |
1 |
|
FMBC-A91G-J310 |
130 |
480 |
1G |
4.8 |
1 |
|
FMBC-A91V-J810 |
180 |
480 |
1V |
8.0 |
1 |
|
FMBC-A91U-0712 |
7 |
520 |
1U |
0.8 |
3 |
|
FMBC-A91C-1612 |
16 |
520 |
1C |
1.1 |
3 |
|
FMBC-A91Q-3012 |
30 |
520 |
1Q |
1.5 |
4 |
|
FMBC-A91R-4212 |
42 |
520 |
1R |
1.9 |
3 |
|
FMBC-A91S-5512 |
55 |
520 |
1S |
2.5 |
2 |
|
FMBC-A91F-7512 |
75 |
520 |
1F |
3.8 |
1 |
|
FMBC-A91G-J012 |
100 |
520 |
1G |
5.0 |
1 |
|
FMBC-A91G-J312 |
130 |
520 |
1G |
4.8 |
1 |
|
FMBC-A91V-J812 |
180 |
520 |
1V |
8.0 |
1 |
Downloads & Documentation
FMBC NEO Datasheet
Buy Schurter FMBC NEO From the Official UK Distributor
Dalroad is the official UK distributor for Schurter. We hold reliable stock of their EMC filter range, and our team supports design engineers through component selection, system integration and supply planning for industrial power electronics, motor drive and power conversion applications. Submit an enquiry to book a call with our technical experts or request a sample.
