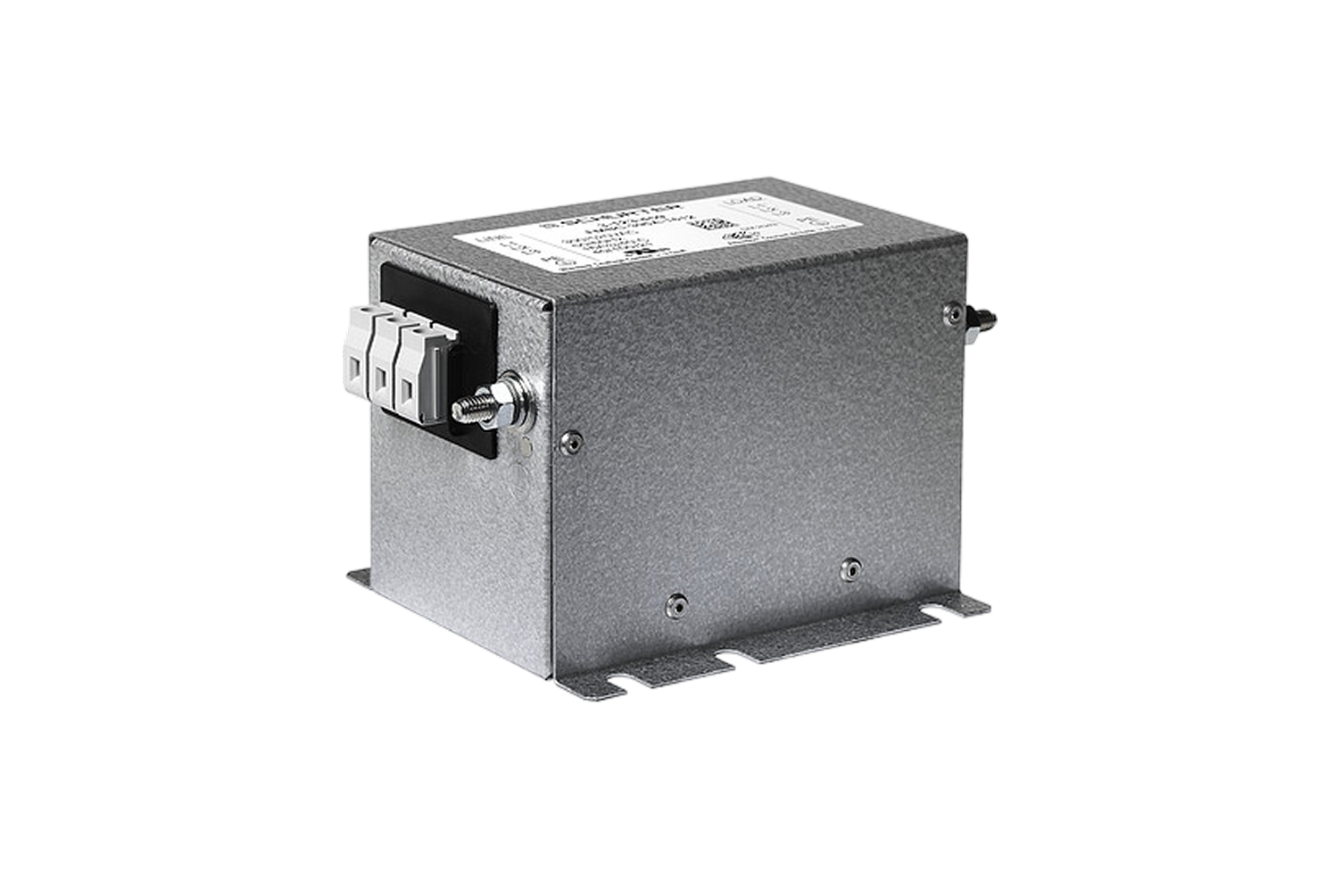

Schurter FMBC EP Two-Stage Three-Phase EMC Filter
Chassis Mount | 520/760 VAC | 16–230 A | 2-Stage | Machine Safety | Industrial & Low Leakage
Schurter FMBC EP Two-Stage Three-Phase EMC Filter Overview
The Schurter FMBC EP is a two-stage three-phase EMC filter for three-wire systems (without neutral), rated 16–230 A at 520 VAC or 760 VAC from -40°C to 100°C. The 760 V rating is notable: most three-phase EMC filters are limited to 480–520 VAC, making the FMBC EP directly applicable to higher-voltage drive systems. Industrial and low-leakage current versions are available (low leakage up to 64 A), and the full range is duplicated in a Machine Safety variant (IEC 60204-1, order series 3-138-xxx). CSA C22.2 No. 8 approval is also held alongside VDE and UL.
-
Features
-
- Two-stage topology; 520 VAC and 760 VAC ratings
- 3-phase, without neutral; industrial and low leakage versions
- Machine Safety variants (IEC 60204-1) available across full range
- Operating temperature -40°C to 100°C
- VDE certificate 40052415; UL file E495089; CSA C22.2 No. 8
- IEC/UL 62368-1 application standard
- CE, UKCA, RoHS, China RoHS, REACH compliant
- Packaging: 1 pc
-
Compatible Applications
For high-voltage two-stage three-phase EMC filtering in industrial and machine safety applications:
-
- Industrial drives and inverters at 520–760 VAC
- Machine tools and CNC centres requiring IEC 60204-1 compliance
- High-voltage three-phase power conversion systems
- Process machinery in North American and European markets
- Heavy industrial equipment with demanding emissions limits
FMBC EP Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 520 VAC / 760 VAC |
| Rated Current | 16–230 A |
| Frequency | 50/60 Hz |
| Filter Stages | 2 |
| Phase Configuration | 3-phase, without neutral |
| Operating Temperature | -40°C to 100°C |
| Mounting | Chassis screw |
| Terminal | Screw clamps, 4–95 mm² |
| Housing Material | Metal |
| IP Rating | IP20 |
| Leakage Current (Industrial, 520 V) | 2.88–3.91 mA |
| Leakage Current (Low Leakage, 520 V) | 0.8 mA (up to 64 A) |
| Leakage Current (Industrial, 760 V) | 1.64–3.03 mA |
| Leakage Current (Low Leakage, 760 V) | 1.1 mA (up to 64 A) |
| Machine Safety | IEC 60204-1 (3-138-xxx series) |
| VDE Certificate | 40052415 |
| UL File | E495089 |
| CSA Standard | C22.2 No. 8 |
| Application Standards | IEC/UL 62368-1 |
| Compliances | CE, UKCA, RoHS, China RoHS, REACH |
| Packaging | 1 pc |
FMBC EP Variants & Order Codes
|
Order No. |
Current (A) |
Voltage (VAC) |
Filter Type |
Machine Safety |
Leakage (mA) |
Housing |
Pkg |
|---|---|---|---|---|---|---|---|
|
3-123-459 |
16 |
520 |
Industrial |
No |
2.88 |
5A-4 |
1 |
|
3-123-460 |
25 |
520 |
Industrial |
No |
3.58 |
5A-10 |
1 |
|
3-123-461 |
36 |
520 |
Industrial |
No |
3.75 |
5B-10 |
1 |
|
3-123-482 |
50 |
520 |
Industrial |
No |
3.75 |
5B-10 |
1 |
|
3-123-483 |
64 |
520 |
Industrial |
No |
3.75 |
5B-16 |
1 |
|
3-123-484 |
80 |
520 |
Industrial |
No |
3.77 |
4C-25 |
1 |
|
3-123-485 |
110 |
520 |
Industrial |
No |
3.77 |
4C-50 |
1 |
|
3-123-486 |
180 |
520 |
Industrial |
No |
3.91 |
4D |
1 |
|
3-123-487 |
230 |
520 |
Industrial |
No |
3.91 |
4D |
1 |
|
3-123-488 |
16 |
520 |
Low Leakage |
No |
0.8 |
5A-4 |
1 |
|
3-123-489 |
25 |
520 |
Low Leakage |
No |
0.8 |
5A-10 |
1 |
|
3-123-490 |
36 |
520 |
Low Leakage |
No |
0.8 |
5B-10 |
1 |
|
3-123-491 |
50 |
520 |
Low Leakage |
No |
0.8 |
5B-10 |
1 |
|
3-123-492 |
64 |
520 |
Low Leakage |
No |
0.8 |
5B-16 |
1 |
|
3-123-493 |
16 |
760 |
Industrial |
No |
1.64 |
5A-4 |
1 |
|
3-123-494 |
25 |
760 |
Industrial |
No |
1.64 |
5A-10 |
1 |
|
3-123-495 |
36 |
760 |
Industrial |
No |
1.64 |
5B-10 |
1 |
|
3-123-496 |
50 |
760 |
Industrial |
No |
1.64 |
5B-10 |
1 |
|
3-123-497 |
64 |
760 |
Industrial |
No |
1.64 |
5B-16 |
1 |
|
3-123-498 |
80 |
760 |
Industrial |
No |
2.21 |
4C-25 |
1 |
|
3-123-499 |
110 |
760 |
Industrial |
No |
2.21 |
4C-50 |
1 |
|
3-123-500 |
180 |
760 |
Industrial |
No |
3.03 |
4D |
1 |
|
3-123-501 |
230 |
760 |
Industrial |
No |
3.03 |
4D |
1 |
|
3-123-502 |
16 |
760 |
Low Leakage |
No |
1.1 |
5A-4 |
1 |
|
3-123-503 |
25 |
760 |
Low Leakage |
No |
1.1 |
5A-10 |
1 |
|
3-123-504 |
36 |
760 |
Low Leakage |
No |
1.1 |
5B-10 |
1 |
|
3-123-505 |
50 |
760 |
Low Leakage |
No |
1.1 |
5B-10 |
1 |
|
3-123-506 |
64 |
760 |
Low Leakage |
No |
1.1 |
5B-16 |
1 |
|
3-138-321 |
16 |
520 |
Industrial |
Yes (IEC 60204-1) |
2.88 |
5A-4 |
1 |
|
3-138-322 |
25 |
520 |
Industrial |
Yes (IEC 60204-1) |
3.58 |
5A-10 |
1 |
|
3-138-323 |
36 |
520 |
Industrial |
Yes (IEC 60204-1) |
3.75 |
5B-10 |
1 |
|
3-138-324 |
50 |
520 |
Industrial |
Yes (IEC 60204-1) |
3.75 |
5B-10 |
1 |
|
3-138-325 |
64 |
520 |
Industrial |
Yes (IEC 60204-1) |
3.75 |
5B-16 |
1 |
|
3-138-326 |
80 |
520 |
Industrial |
Yes (IEC 60204-1) |
3.77 |
4C-25 |
1 |
|
3-138-327 |
110 |
520 |
Industrial |
Yes (IEC 60204-1) |
3.77 |
4C-50 |
1 |
|
3-138-328 |
180 |
520 |
Industrial |
Yes (IEC 60204-1) |
3.91 |
4D |
1 |
|
3-138-329 |
230 |
520 |
Industrial |
Yes (IEC 60204-1) |
3.91 |
4D |
1 |
|
3-138-330 |
16 |
520 |
Low Leakage |
Yes (IEC 60204-1) |
0.8 |
5A-4 |
1 |
|
3-138-331 |
25 |
520 |
Low Leakage |
Yes (IEC 60204-1) |
0.8 |
5A-10 |
1 |
|
3-138-332 |
36 |
520 |
Low Leakage |
Yes (IEC 60204-1) |
0.8 |
5B-10 |
1 |
|
3-138-333 |
50 |
520 |
Low Leakage |
Yes (IEC 60204-1) |
0.8 |
5B-10 |
1 |
|
3-138-334 |
64 |
520 |
Low Leakage |
Yes (IEC 60204-1) |
0.8 |
5B-16 |
1 |
|
3-138-335 |
16 |
760 |
Industrial |
Yes (IEC 60204-1) |
1.64 |
5A-4 |
1 |
|
3-138-336 |
25 |
760 |
Industrial |
Yes (IEC 60204-1) |
1.64 |
5A-10 |
1 |
|
3-138-337 |
36 |
760 |
Industrial |
Yes (IEC 60204-1) |
1.64 |
5B-10 |
1 |
|
3-138-338 |
50 |
760 |
Industrial |
Yes (IEC 60204-1) |
1.64 |
5B-10 |
1 |
|
3-138-339 |
64 |
760 |
Industrial |
Yes (IEC 60204-1) |
1.64 |
5B-16 |
1 |
|
3-138-340 |
80 |
760 |
Industrial |
Yes (IEC 60204-1) |
2.21 |
4C-25 |
1 |
|
3-138-341 |
110 |
760 |
Industrial |
Yes (IEC 60204-1) |
2.21 |
4C-50 |
1 |
|
3-138-342 |
180 |
760 |
Industrial |
Yes (IEC 60204-1) |
3.03 |
4D |
1 |
|
3-138-343 |
230 |
760 |
Industrial |
Yes (IEC 60204-1) |
3.03 |
4D |
1 |
|
3-138-344 |
16 |
760 |
Low Leakage |
Yes (IEC 60204-1) |
1.1 |
5A-4 |
1 |
|
3-138-345 |
25 |
760 |
Low Leakage |
Yes (IEC 60204-1) |
1.1 |
5A-10 |
1 |
|
3-138-346 |
36 |
760 |
Low Leakage |
Yes (IEC 60204-1) |
1.1 |
5B-10 |
1 |
|
3-138-347 |
50 |
760 |
Low Leakage |
Yes (IEC 60204-1) |
1.1 |
5B-10 |
1 |
|
3-138-348 |
64 |
760 |
Low Leakage |
Yes (IEC 60204-1) |
1.1 |
5B-16 |
1 |
Low leakage current version is only available up to 64 A.
