Schurter FMBB NEO Two-Stage Single-Phase EMC Filter
Chassis Mount | 250 VAC | 1–36 A | 2-Stage | 3 Designs | Standard & Medical (IEC 60601-1)

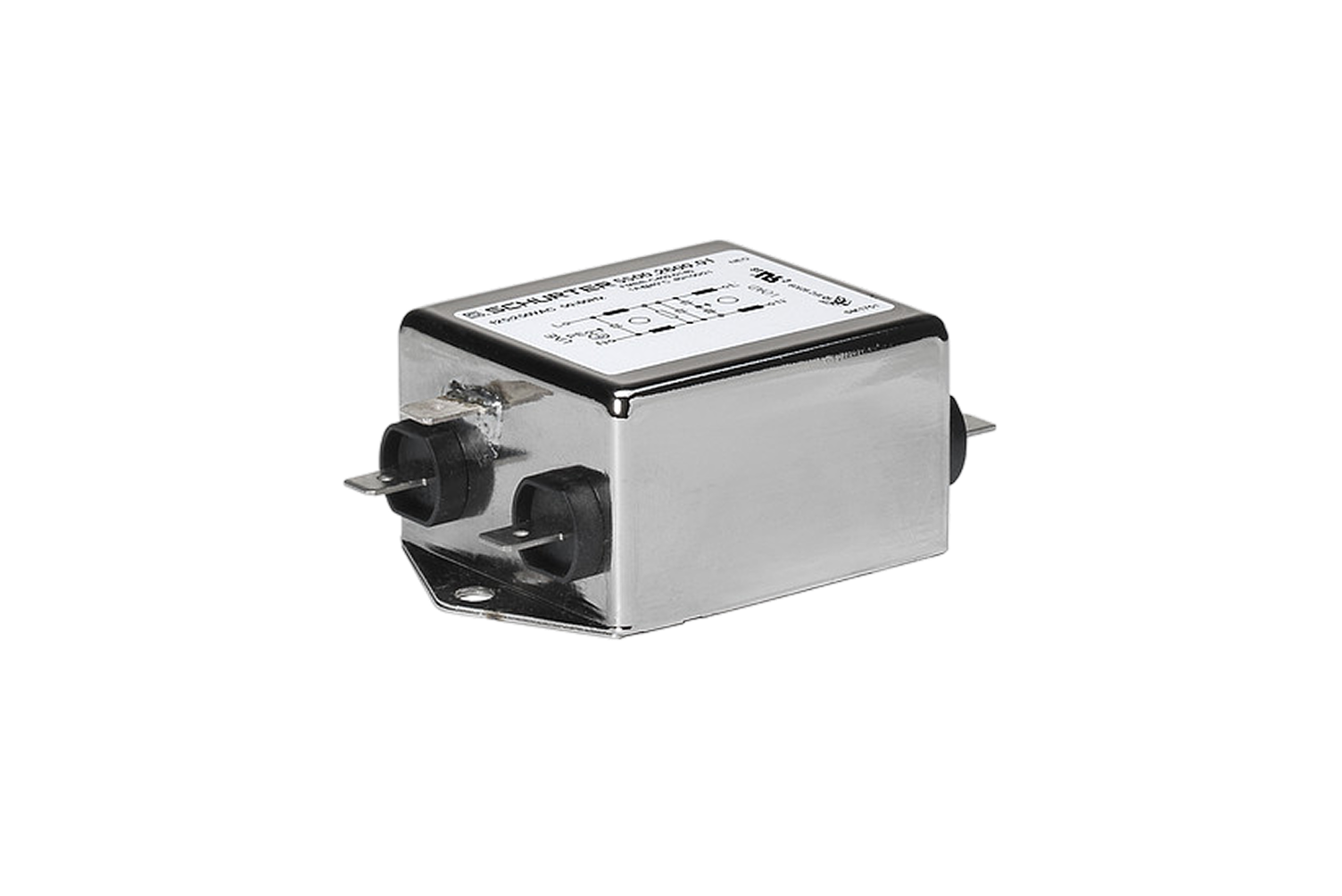

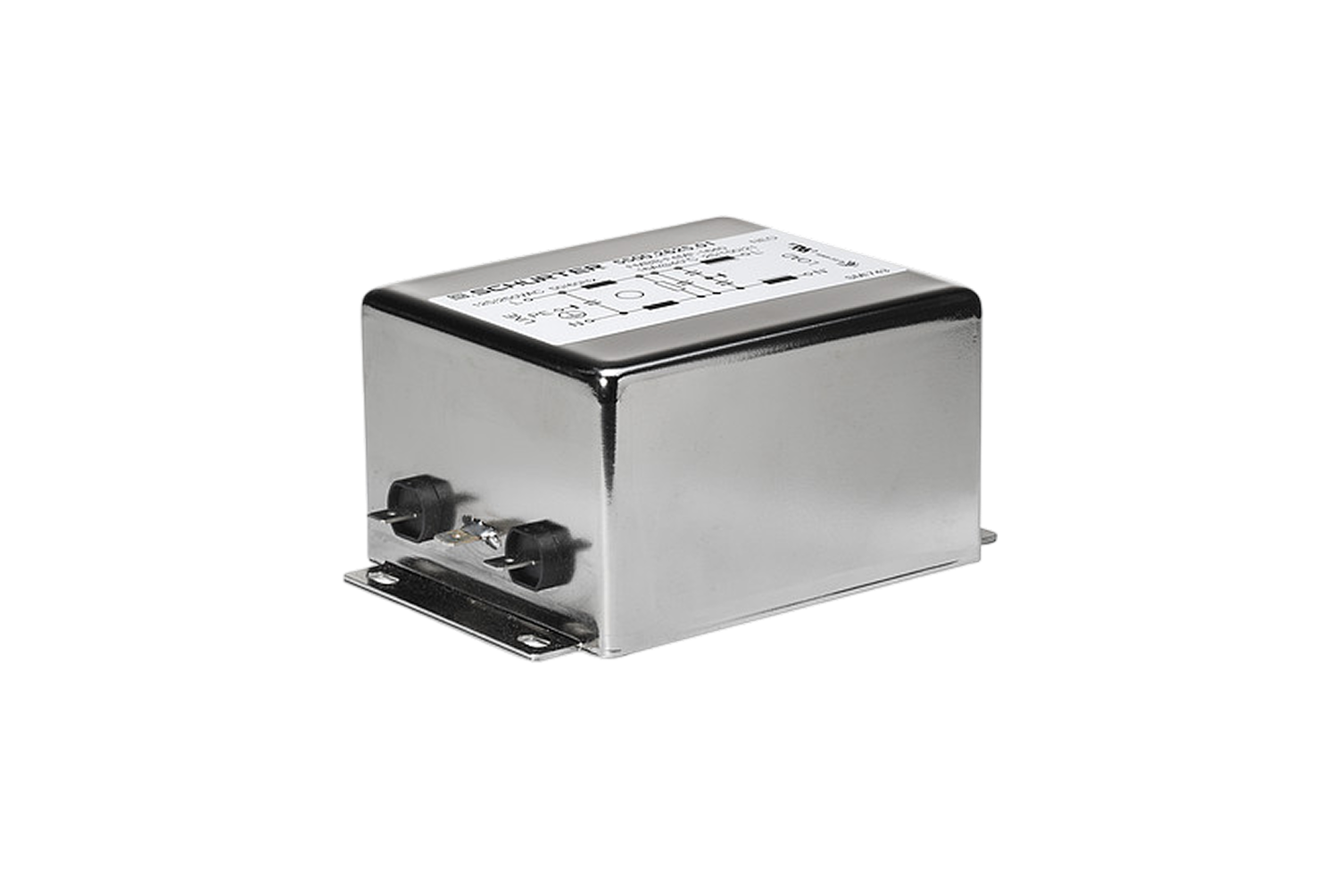

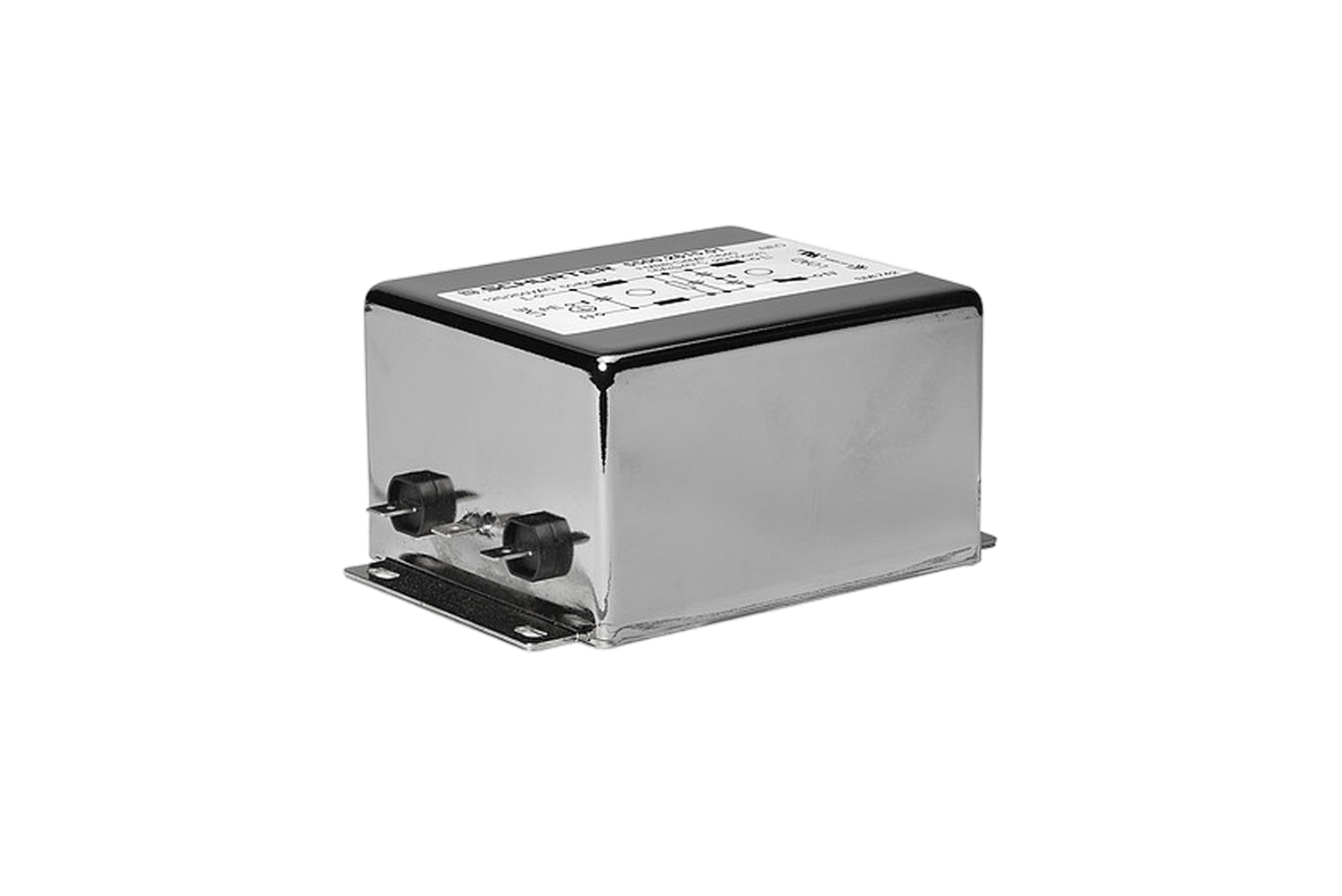

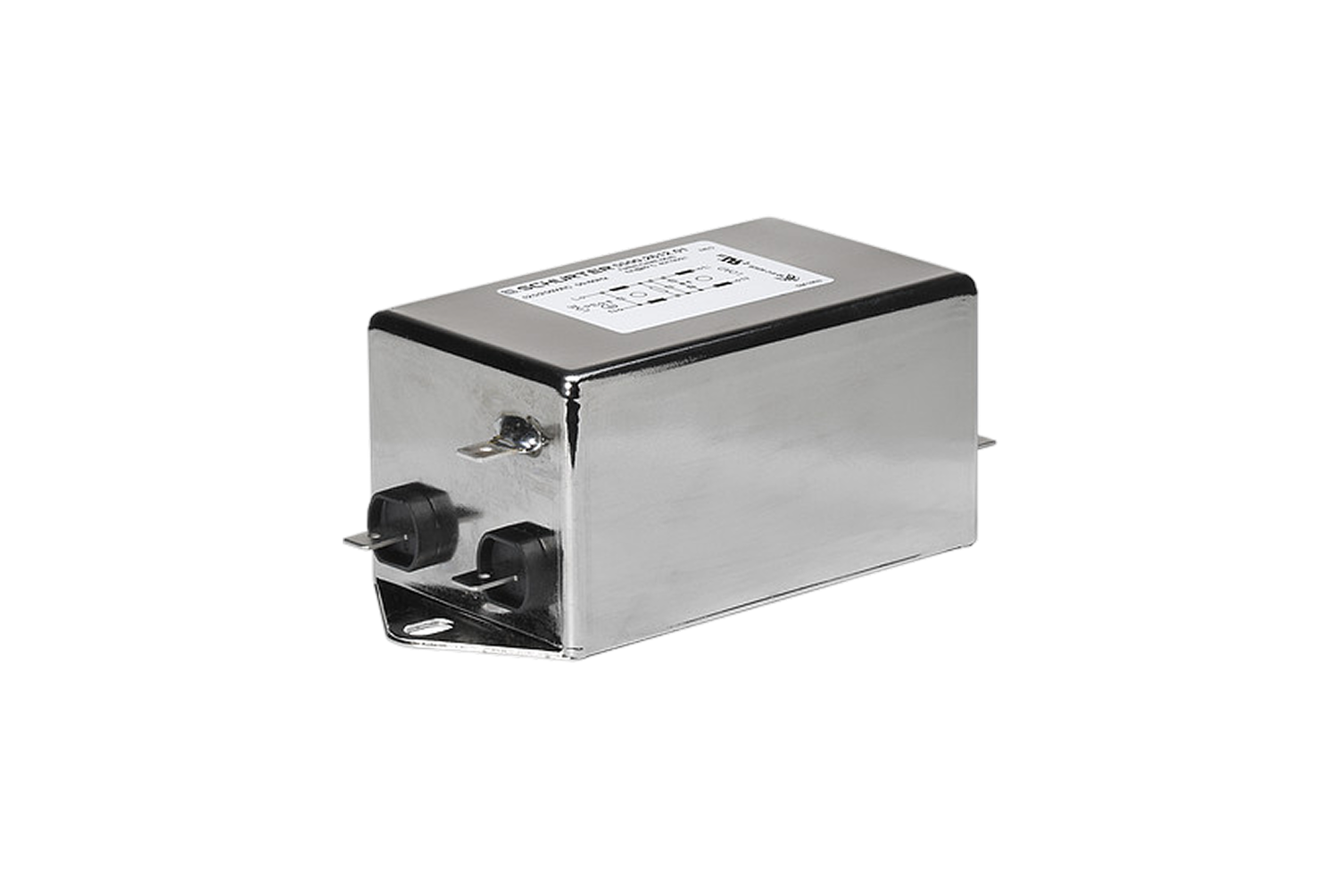

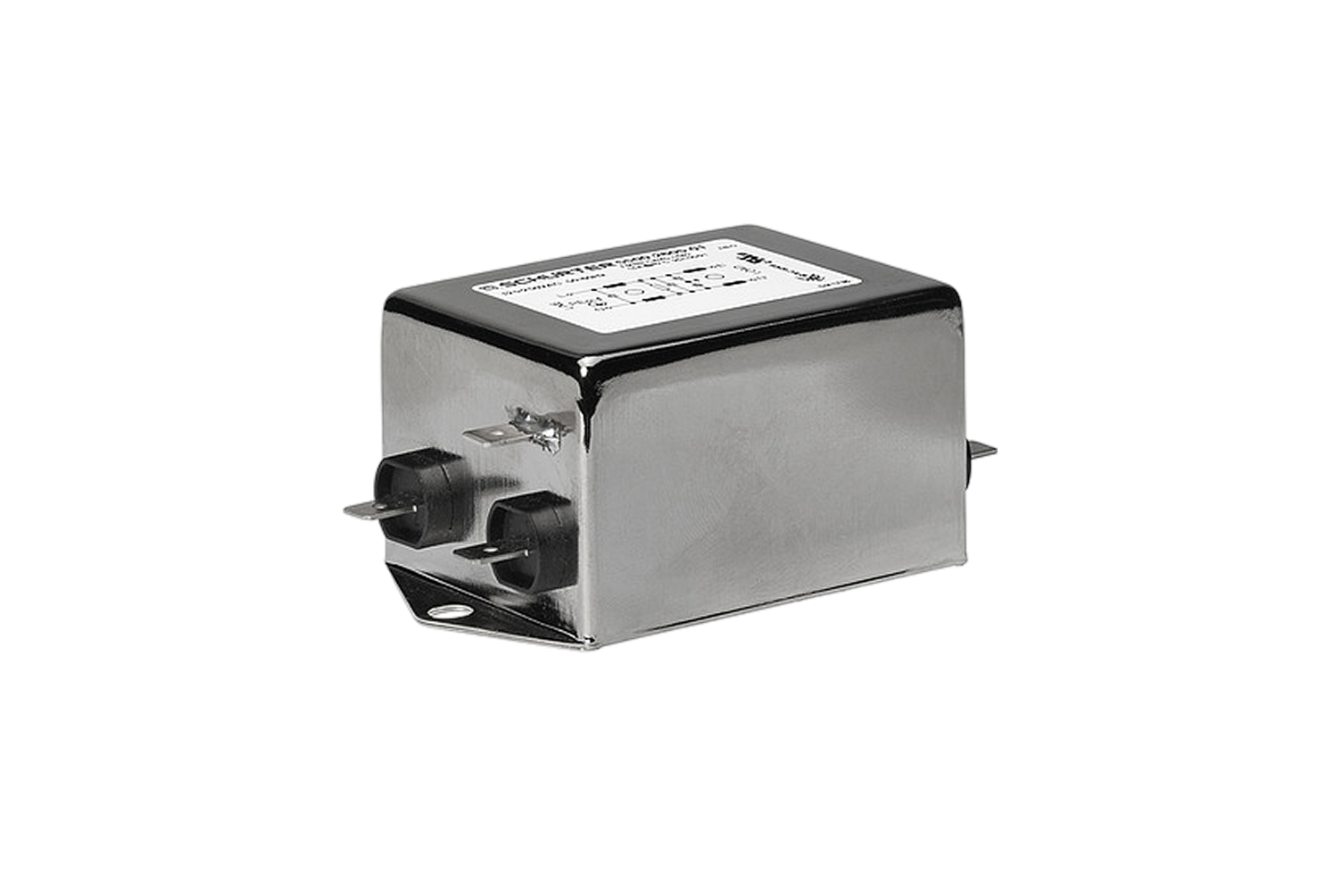

Schurter FMBB NEO Two-Stage EMC Filter Overview
The Schurter FMBB NEO is the current-generation two-stage single-phase EMC filter, rated 1–36 A at 250 VAC from -40°C to 100°C. It supersedes the FMBB series. Three design variants optimise attenuation for different frequency profiles: Design C (high symmetrical and asymmetrical attenuation), Design D (excellent high-frequency attenuation), and Design F (excellent low-frequency attenuation). Standard, medical M5 (<0.005 mA) and medical M80 (<0.08 mA) leakage versions are available across all three designs.
-
Features
-
- Two-stage topology with three designs: C (high symm./asymm.), D (excellent HF), F (excellent LF)
- Nickel-plated steel housing; Quick connect 6.3×0.8 mm (≤20 A) or Bolt/nut M4 (25–36 A)
- IP20 rated
- Standard (<0.5 mA), medical M5 (<0.005 mA) and medical M80 (<0.08 mA) leakage versions
- VDE certificate 40030410; UL file E72928
- IEC/UL 62368-1 and IEC/UL 60601-1 (1 MOOP / 1 MOPP) application standards
- CE, UKCA, RoHS, China RoHS, REACH compliant
-
Compatible Applications
Two-stage single-phase filtering for equipment with stringent conducted emission requirements:
-
- Industrial drives and high-frequency inverters
- Medical power supply units
- Power conversion and UPS systems
- Switched-mode power supplies with high-frequency switching
- Measurement and laboratory equipment
FMBB NEO Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 250 VAC |
| Rated Current | 1–36 A |
| Frequency | 50/60 Hz |
| Filter Stages | 2 |
| Operating Temperature | -40°C to 100°C |
| Designs Available | C (high symm./asymm.), D (excellent HF), F (excellent LF) |
| Housing Material | Nickel-plated steel |
| Terminal (≤20 A) | Quick connect 6.3×0.8 mm |
| Terminal (25–36 A) | Bolt/nut M4 |
| IP Rating | IP20 |
| Leakage Current (Standard) | < 0.5 mA |
| Leakage Current (Medical M5) | < 0.005 mA |
| Leakage Current (Medical M80) | < 0.08 mA (CY = 0.47 nF) |
| VDE Certificate | 40030410 |
| UL File | E72928 |
| Application Standards | IEC/UL 62368-1; IEC/UL 60601-1 |
| Compliances | CE, UKCA, RoHS, China RoHS, REACH |
FMBB NEO Variants & Order Codes
|
Order No. |
Current (A) |
Type |
Design |
L (mH) |
Cx (µF) |
Housing |
Pkg |
|---|---|---|---|---|---|---|---|
|
5500.2600.01 |
1 |
Standard |
C |
12 |
0.22 |
09 |
15 |
|
5500.2601.01 |
3 |
Standard |
C |
2.5 |
— |
09 |
15 |
|
5500.2602.01 |
6 |
Standard |
C |
0.97 |
— |
09 |
15 |
|
5500.2603.01 |
10 |
Standard |
C |
0.8 |
0.47 |
MC |
10 |
|
5500.2604.01 |
12 |
Standard |
C |
0.58 |
0.47 |
MC |
10 |
|
5500.2605.01 |
16 |
Standard |
C |
0.65 |
0.33 |
UB |
10 |
|
5500.2606.01 |
20 |
Standard |
C |
0.6 |
1 |
ME |
5 |
|
5500.2607.03 |
30 |
Standard |
C |
0.6 |
1 |
MF |
3 |
|
5500.2610.01 |
1 |
Standard |
D |
22 |
0.33 |
MC |
10 |
|
5500.2611.01 |
3 |
Standard |
D |
9.8 |
0.47 |
UB |
10 |
|
5500.2612.01 |
6 |
Standard |
D |
7.8 |
1 |
ME |
5 |
|
5500.2613.01 |
10 |
Standard |
D |
4.5 |
1 |
MB |
4 |
|
5500.2614.01 |
12 |
Standard |
D |
3.25 |
— |
MB |
4 |
|
5500.2615.01 |
16 |
Standard |
D |
2.8 |
— |
MF |
3 |
|
5500.2616.03 |
25 |
Standard |
D |
2.0 |
2.2 |
MB |
4 |
|
5500.2617.03 |
36 |
Standard |
D |
1.23 |
2.2 |
MB |
4 |
|
5500.2620.01 |
1 |
Standard |
F |
22 |
0.33 |
MC |
10 |
|
5500.2621.01 |
3 |
Standard |
F |
9.8 |
0.47 |
UB |
10 |
|
5500.2622.01 |
6 |
Standard |
F |
7.8 |
1 |
ME |
5 |
|
5500.2623.01 |
10 |
Standard |
F |
4.5 |
1 |
MB |
4 |
|
5500.2624.01 |
12 |
Standard |
F |
3.25 |
1 |
MB |
4 |
|
5500.2625.01 |
16 |
Standard |
F |
2.8 |
1 |
MF |
3 |
|
5500.2600.04 |
1 |
Medical M5 |
C |
12 |
0.22 |
09 |
15 |
|
5500.2601.04 |
3 |
Medical M5 |
C |
2.5 |
— |
09 |
15 |
|
5500.2602.04 |
6 |
Medical M5 |
C |
0.97 |
— |
09 |
15 |
|
5500.2603.04 |
10 |
Medical M5 |
C |
0.8 |
0.47 |
MC |
10 |
|
5500.2604.04 |
12 |
Medical M5 |
C |
0.58 |
0.47 |
MC |
10 |
|
5500.2605.04 |
16 |
Medical M5 |
C |
0.65 |
0.33 |
UB |
10 |
|
5500.2606.04 |
20 |
Medical M5 |
C |
0.6 |
1 |
ME |
5 |
|
5500.2607.06 |
30 |
Medical M5 * |
C |
0.6 |
1 |
MF |
3 |
|
5500.2610.04 |
1 |
Medical M5 |
D |
22 |
0.33 |
MC |
10 |
|
5500.2611.04 |
3 |
Medical M5 |
D |
9.8 |
0.47 |
UB |
10 |
|
5500.2612.04 |
6 |
Medical M5 |
D |
7.8 |
1 |
ME |
5 |
|
5500.2613.04 |
10 |
Medical M5 |
D |
4.5 |
1 |
MB |
4 |
|
5500.2614.04 |
12 |
Medical M5 |
D |
3.25 |
— |
MB |
4 |
|
5500.2615.04 |
16 |
Medical M5 |
D |
2.8 |
— |
MF |
3 |
|
5500.2616.06 |
25 |
Medical M5 * |
D |
2.0 |
2.2 |
MB |
4 |
|
5500.2617.06 |
36 |
Medical M5 * |
D |
1.23 |
2.2 |
MB |
4 |
|
5500.2620.04 |
1 |
Medical M5 |
F |
22 |
0.33 |
MC |
10 |
|
5500.2621.04 |
3 |
Medical M5 |
F |
9.8 |
0.47 |
UB |
10 |
|
5500.2622.04 |
6 |
Medical M5 |
F |
7.8 |
1 |
ME |
5 |
|
5500.2623.04 |
10 |
Medical M5 |
F |
4.5 |
1 |
MB |
4 |
|
5500.2624.04 |
12 |
Medical M5 |
F |
3.25 |
1 |
MB |
4 |
|
5500.2625.04 |
16 |
Medical M5 |
F |
2.8 |
1 |
MF |
3 |
|
5500.2600.07 |
1 |
Medical M80 |
C |
12 |
0.22 |
09 |
15 |
|
5500.2601.07 |
3 |
Medical M80 |
C |
2.5 |
— |
09 |
15 |
|
5500.2602.07 |
6 |
Medical M80 |
C |
0.97 |
— |
09 |
15 |
|
5500.2603.07 |
10 |
Medical M80 |
C |
0.8 |
0.47 |
MC |
10 |
|
5500.2604.07 |
12 |
Medical M80 |
C |
0.58 |
0.47 |
MC |
10 |
|
5500.2605.07 |
16 |
Medical M80 |
C |
0.65 |
0.33 |
UB |
10 |
|
5500.2606.07 |
20 |
Medical M80 |
C |
0.6 |
1 |
ME |
5 |
|
5500.2607.09 |
30 |
Medical M80 * |
C |
0.6 |
1 |
MF |
3 |
|
5500.2610.07 |
1 |
Medical M80 |
D |
22 |
0.33 |
MC |
10 |
|
5500.2611.07 |
3 |
Medical M80 |
D |
9.8 |
0.47 |
UB |
10 |
|
5500.2612.07 |
6 |
Medical M80 |
D |
7.8 |
1 |
ME |
5 |
|
5500.2613.07 |
10 |
Medical M80 |
D |
4.5 |
1 |
MB |
4 |
|
5500.2614.07 |
12 |
Medical M80 |
D |
3.25 |
— |
MB |
4 |
|
5500.2615.07 |
16 |
Medical M80 |
D |
2.8 |
— |
MF |
3 |
|
5500.2616.09 |
25 |
Medical M80 * |
D |
2.0 |
2.2 |
MB |
4 |
|
5500.2617.09 |
36 |
Medical M80 * |
D |
1.23 |
2.2 |
MB |
4 |
|
5500.2620.07 |
1 |
Medical M80 |
F |
22 |
0.33 |
MC |
10 |
|
5500.2621.07 |
3 |
Medical M80 |
F |
9.8 |
0.47 |
UB |
10 |
|
5500.2622.07 |
6 |
Medical M80 |
F |
7.8 |
1 |
ME |
5 |
|
5500.2623.07 |
10 |
Medical M80 |
F |
4.5 |
1 |
MB |
4 |
|
5500.2624.07 |
12 |
Medical M80 |
F |
3.25 |
1 |
MB |
4 |
|
5500.2625.07 |
16 |
Medical M80 |
F |
2.8 |
1 |
MF |
3 |
25 A, 30 A and 36 A medical M5 and M80 variants are suitable only for permanently connected medical equipment.
Downloads & Documentation
FMBB NEO Datasheet
