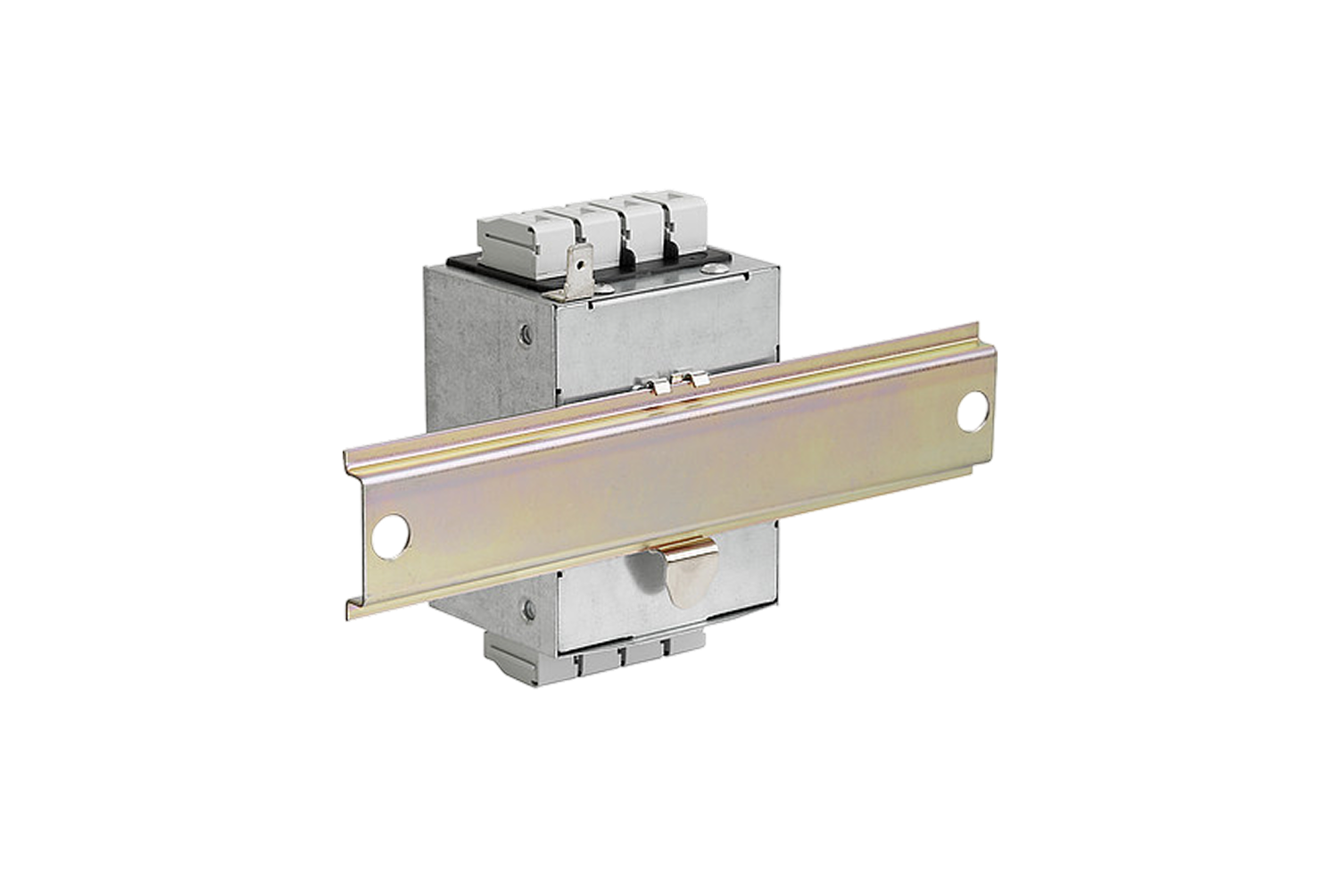

Schurter FMAD RAIL DIN Rail Three-Phase Single-Stage EMC Filter With Neutral
DIN Rail | 277/480 VAC | 3–20 A | 3-Phase With Neutral
Schurter FMAD RAIL DIN Rail EMC Filter Overview
The Schurter FMAD RAIL is a single-stage three-phase DIN rail EMC filter for systems with a neutral conductor (L1, L2, L3, N, PE), rated 3–20 A at 277/480 VAC from -25°C to 100°C. Unlike the FMAC RAIL (which covers three-wire systems), the FMAD RAIL includes the neutral conductor for use in 4-wire control cabinet applications. It is specifically designed for electric switch and control cabinets, with M4 bolt-and-nut phase terminals and a quick-connect 6.3×0.8 mm PE terminal.
-
Features
-
- DIN rail mount; M4 bolt/nut phase terminals, quick connect 6.3×0.8 mm PE
- 4-wire (L1, L2, L3, N, PE); standard leakage < 0.5 mA
- Designed specifically for switch and control cabinets
- Metal housing; IP20; Protection Class I
- VDE certificate 40030736; UL file E72928
- IEC/UL 62368-1 application standard
- CE, UKCA, RoHS, China RoHS, REACH compliant
- Packaging: 5 pcs
-
Compatible Applications
For DIN rail three-phase EMC filtering with neutral conductor in control cabinet assemblies:
-
- PLC and automation control panels with 4-wire supply
- Machine tool control cabinets
- HVAC and building services switchgear
- Industrial drives connected to systems with neutral
- Panel-mounted power conditioning
FMAD RAIL Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 277/480 VAC |
| Rated Current | 3–20 A |
| Frequency | 50/60 Hz |
| Filter Stages | 1 |
| Phase Configuration | 3-phase with neutral (L1, L2, L3, N, PE) |
| Operating Temperature | -25°C to 100°C |
| Mounting | DIN rail |
| Terminal (phases) | Bolt/nut M4 |
| Terminal (PE) | Quick connect 6.3×0.8 mm |
| Housing Material | Metal |
| IP Rating | IP20 |
| Leakage Current | < 0.5 mA |
| VDE Certificate | 40030736 |
| UL File | E72928 |
| Application Standards | IEC/UL 62368-1 |
| Compliances | CE, UKCA, RoHS, China RoHS, REACH |
| Packaging | 5 pcs |
FMAD RAIL Variants & Order Codes
|
Order No. |
Current (A) |
Weight (g) |
Pkg (pcs) |
|---|---|---|---|
|
FMAD-MRYB-0310 |
3 |
385 |
5 |
|
FMAD-MRYB-0610 |
6 |
385 |
5 |
|
FMAD-MRYB-1010 |
10 |
395 |
5 |
|
FMAD-MRYB-2010 |
20 |
420 |
5 |
Downloads & Documentation
FMAD RAIL Datasheet
Buy Schurter FMAD RAIL From the Official UK Distributor
Dalroad is the official UK distributor for Schurter. We hold reliable stock of their EMC filter range, and our team supports design engineers through component selection, system integration and supply planning for industrial power electronics, motor drive and power conversion applications. Submit an enquiry to book a call with our technical experts or request a sample.
