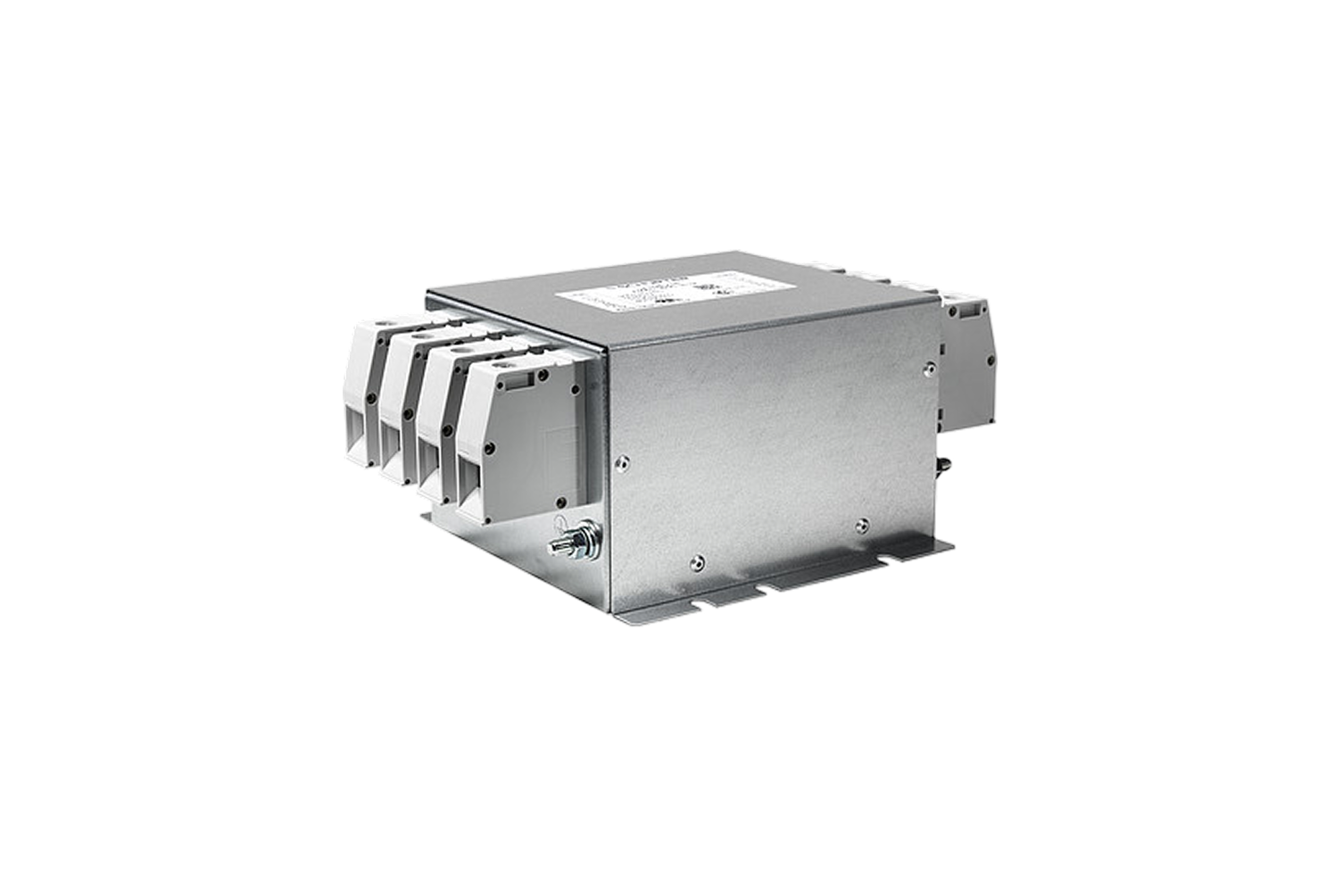

Schurter FMAD NEO Three-Phase Single-Stage EMC Filter With Neutral
Chassis Mount | 300/520 VAC | 16–230 A | 3-Phase With Neutral | Machine Safety | Industrial & Low Leakage
Schurter FMAD NEO EMC Filter Overview
The Schurter FMAD NEO is the current-generation single-stage three-phase EMC filter for systems with a neutral conductor (L1, L2, L3, N, PE), rated 16–230 A at 300/520 VAC from -40°C to 100°C. It supersedes the FMAD series. Both industrial and low-leakage versions are available (low leakage up to 64 A), and machine safety variants qualified to IEC 60204-1 cover the full range in both types. The compact metal housing family spans cases 5A through 5D, keeping the footprint smaller than the outgoing FMAD for the same current ratings.
-
Features
-
- 4-wire filter (L1, L2, L3, N, PE); screw clamp terminals, 4–95 mm²
- Industrial and low leakage versions; low leakage available up to 64 A
- Machine Safety variants (IEC 60204-1) available across both filter types
- Wider operating temperature than FMAD: -40°C to 100°C
- VDE certificate 40049000; UL file E495089
- IEC/UL 62368-1 application standard
- CE, UKCA, RoHS, China RoHS, REACH compliant
- Packaging: 1 pc
-
Compatible Applications
For single-stage three-phase EMC filtering with neutral in industrial and machine safety applications:
-
- Industrial drives and frequency converters with neutral conductor
- Machine tools and CNC systems (machine safety variants)
- Three-phase UPS and rectifier systems
- Power conversion equipment in industrial environments
- Automation systems requiring IEC 60204-1 compliance
FMAD NEO Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 300/520 VAC |
| Rated Current | 16–230 A |
| Frequency | 50/60 Hz |
| Filter Stages | 1 |
| Phase Configuration | 3-phase with neutral (L1, L2, L3, N, PE) |
| Operating Temperature | -40°C to 100°C |
| Mounting | Chassis screw |
| Terminal | Screw clamps, 4–95 mm² |
| Housing Material | Metal |
| IP Rating | IP20 |
| Leakage Current (Industrial) | ≤ 13.1 mA |
| Leakage Current (Low Leakage) | 1.4–3 mA (available up to 64 A) |
| Machine Safety | IEC 60204-1 (selected variants) |
| VDE Certificate | 40049000 |
| UL File | E495089 |
| Application Standards | IEC/UL 62368-1 |
| Compliances | CE, UKCA, RoHS, China RoHS, REACH |
| Packaging | 1 pc |
FMAD NEO Variants & Order Codes
|
Order No. |
Current (A) |
Filter Type |
Machine Safety |
Leakage (mA) |
Pkg |
|---|---|---|---|---|---|
|
3-108-700 |
16 |
Industrial |
No |
10.5 |
1 |
|
3-108-701 |
25 |
Industrial |
No |
10.7 |
1 |
|
3-108-712 |
36 |
Industrial |
No |
10.7 |
1 |
|
3-108-713 |
50 |
Industrial |
No |
11.4 |
1 |
|
3-108-714 |
64 |
Industrial |
No |
11.4 |
1 |
|
3-108-715 |
80 |
Industrial |
No |
12.2 |
1 |
|
3-108-716 |
110 |
Industrial |
No |
12.2 |
1 |
|
3-108-717 |
180 |
Industrial |
No |
12.2 |
1 |
|
3-108-718 |
230 |
Industrial |
No |
13.1 |
1 |
|
3-109-852 |
16 |
Low Leakage |
No |
1.4 |
1 |
|
3-109-853 |
25 |
Low Leakage |
No |
3.0 |
1 |
|
3-109-854 |
36 |
Low Leakage |
No |
3.0 |
1 |
|
3-109-855 |
50 |
Low Leakage |
No |
3.0 |
1 |
|
3-109-856 |
64 |
Low Leakage |
No |
3.0 |
1 |
|
3-138-306 |
16 |
Industrial |
Yes (IEC 60204-1) |
10.5 |
1 |
|
3-138-307 |
25 |
Industrial |
Yes (IEC 60204-1) |
10.7 |
1 |
|
3-138-308 |
36 |
Industrial |
Yes (IEC 60204-1) |
10.7 |
1 |
|
3-138-309 |
50 |
Industrial |
Yes (IEC 60204-1) |
11.4 |
1 |
|
3-138-310 |
64 |
Industrial |
Yes (IEC 60204-1) |
11.4 |
1 |
|
3-138-311 |
80 |
Industrial |
Yes (IEC 60204-1) |
12.2 |
1 |
|
3-138-312 |
110 |
Industrial |
Yes (IEC 60204-1) |
12.2 |
1 |
|
3-138-313 |
180 |
Industrial |
Yes (IEC 60204-1) |
12.2 |
1 |
|
3-138-314 |
230 |
Industrial |
Yes (IEC 60204-1) |
13.1 |
1 |
|
3-138-315 |
16 |
Low Leakage |
Yes (IEC 60204-1) |
1.4 |
1 |
|
3-138-316 |
25 |
Low Leakage |
Yes (IEC 60204-1) |
3.0 |
1 |
|
3-138-317 |
36 |
Low Leakage |
Yes (IEC 60204-1) |
3.0 |
1 |
|
3-138-318 |
50 |
Low Leakage |
Yes (IEC 60204-1) |
3.0 |
1 |
|
3-138-319 |
64 |
Low Leakage |
Yes (IEC 60204-1) |
3.0 |
1 |
