Schurter FMAC NEO Three-Phase Single-Stage EMC Filter
3-Phase Without Neutral | 300/520 VAC | 16–230 A | Machine Safety | Industrial & Low Leakage

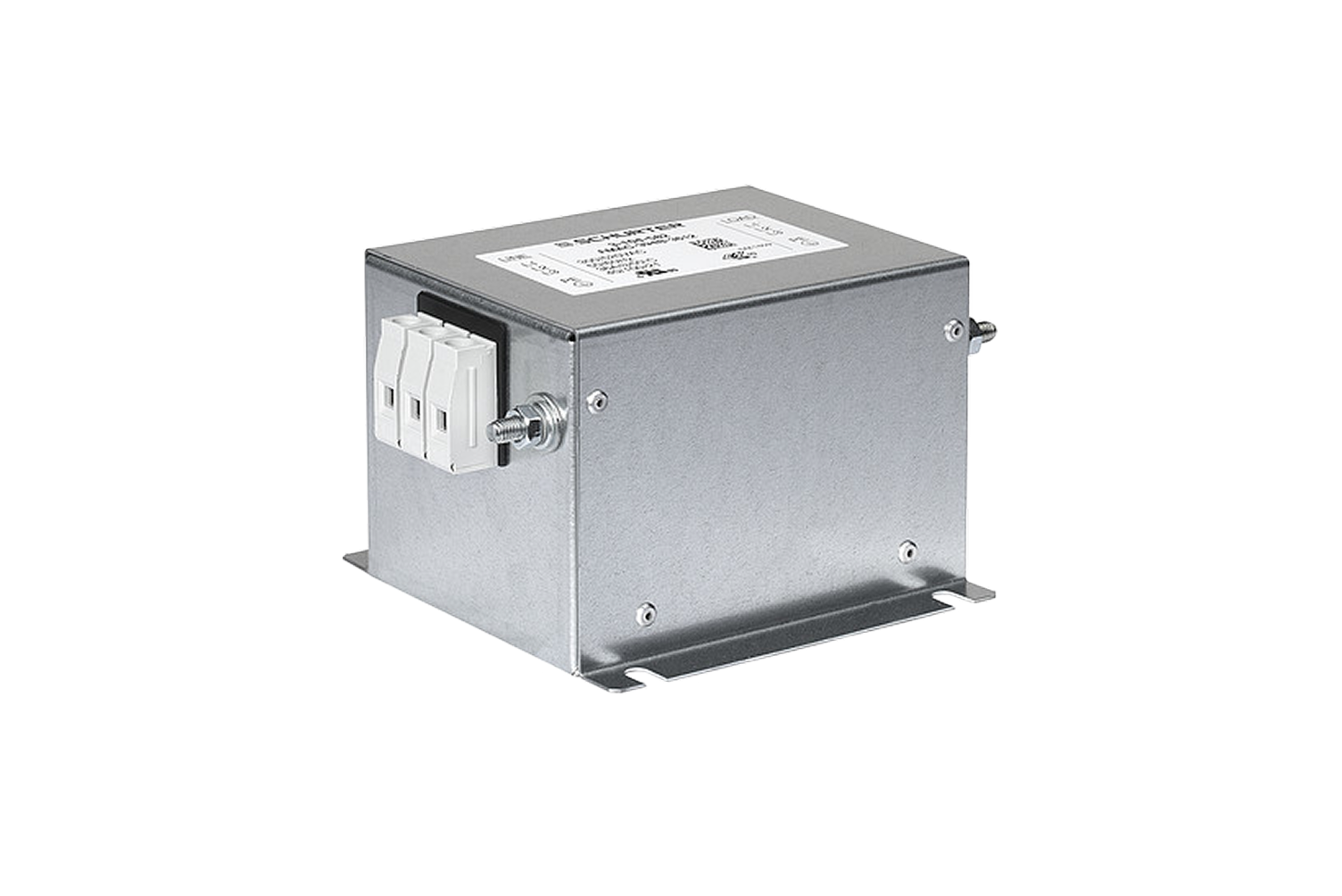

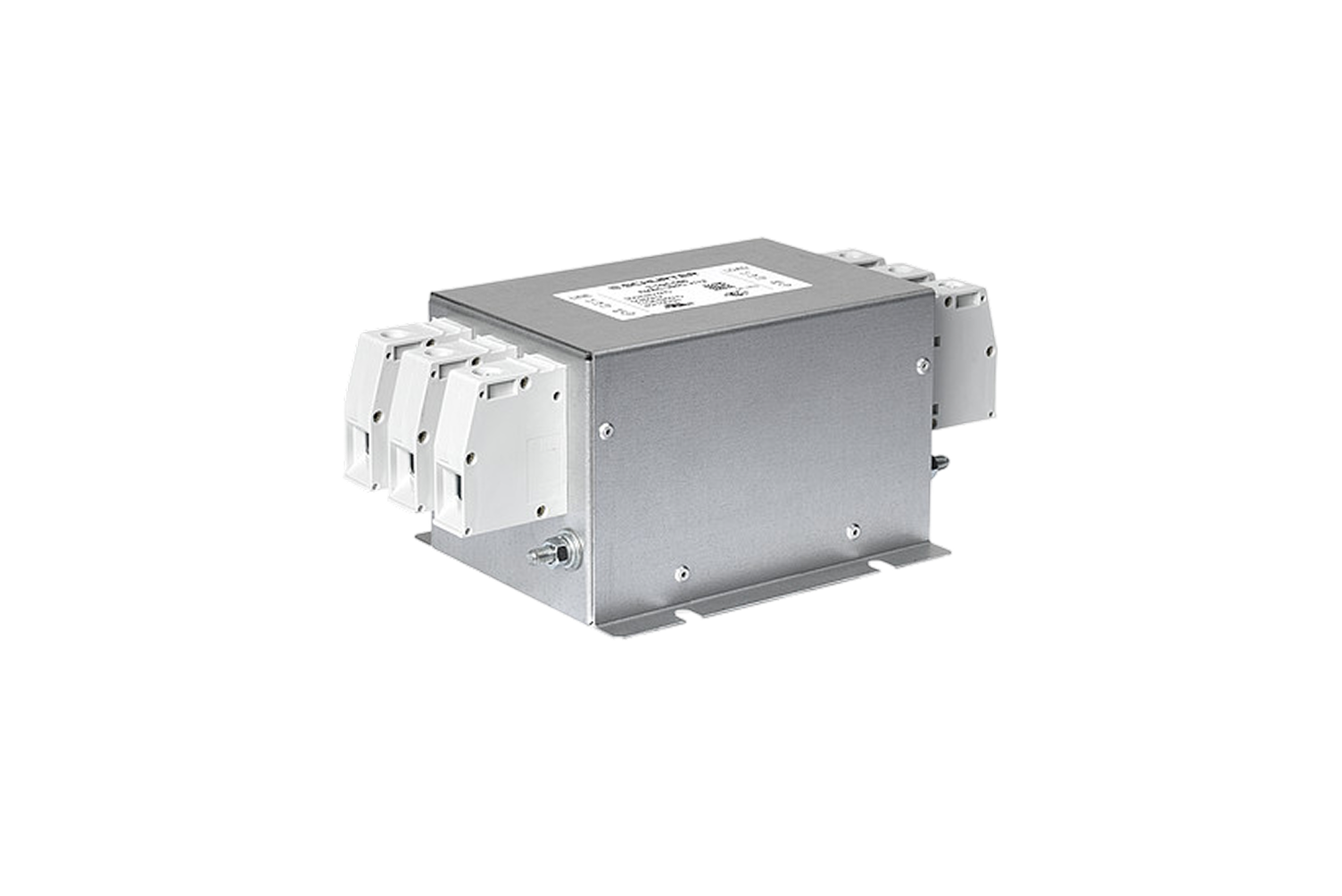

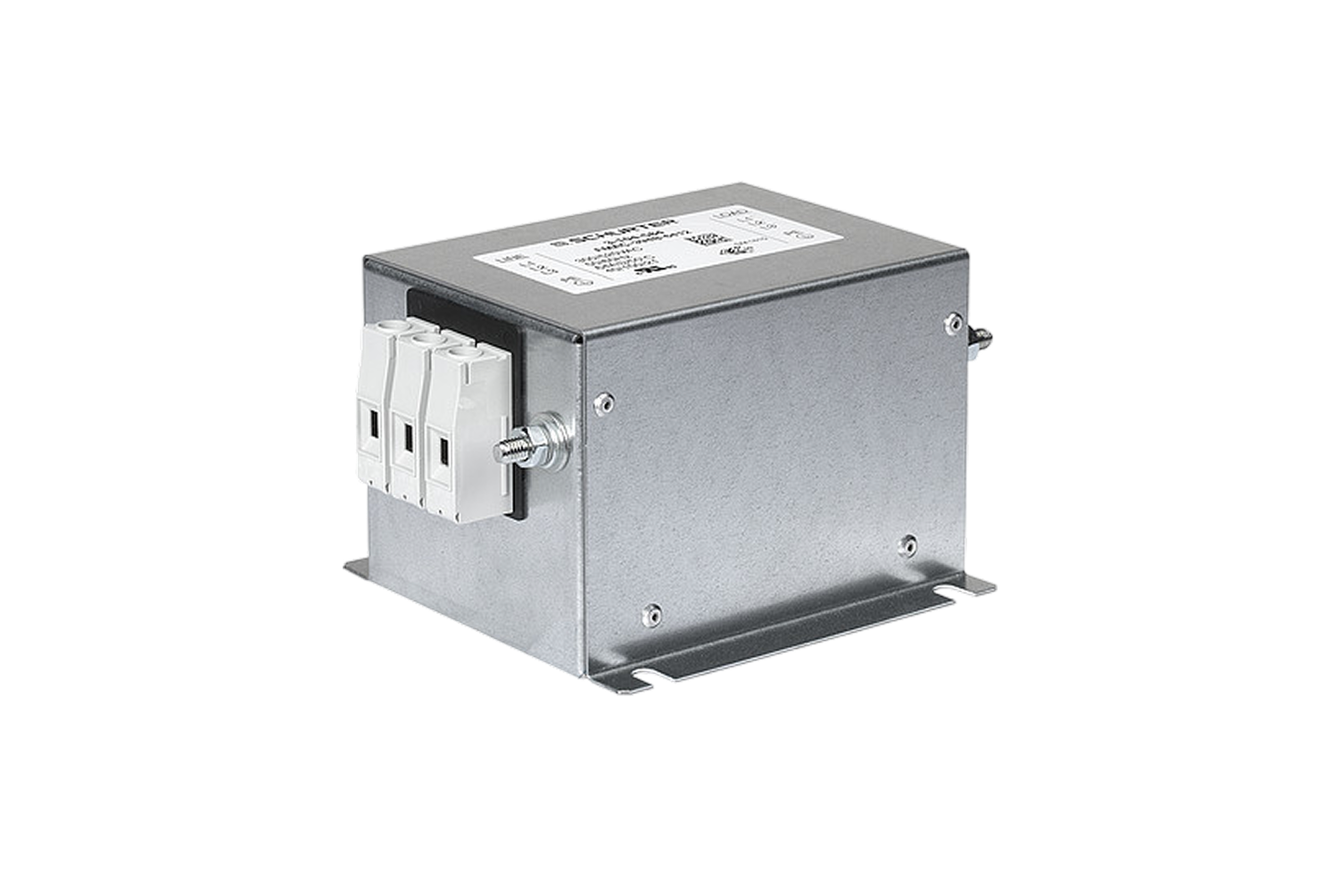

Schurter FMAC NEO Three-Phase EMC Filter Overview
The Schurter FMAC NEO is the current-generation three-phase single-stage EMC filter for three-wire systems (without neutral), rated 16–230 A at 300/520 VAC from -40°C to 100°C. It supersedes the FMAC series. Both industrial and low-leakage versions are available (low leakage up to 64 A), and machine safety variants qualified to IEC 60204-1 extend application coverage to safety-rated machine control circuits. Metal housing with screw clamp terminals.
-
Features
-
- Three-phase, without neutral (3-wire)
- Machine Safety variants available, qualified to IEC 60204-1
- Industrial and low leakage versions (low leakage available up to 64 A)
- Metal housing; screw clamp terminals
- Weight range: 0.9–4 kg depending on current rating
- VDE certificate 40049000; UL file E72928
- IEC/UL 62368-1 application standard
- CE, UKCA, RoHS, China RoHS, REACH compliant
- Packaging: 1 pc
-
Compatible Applications
Three-phase single-stage EMI filtering for industrial and machine safety applications:
-
- Industrial machines and machine tools (IEC 60204-1 compliant variants)
- Three-phase motor drives and inverters
- Industrial HVAC and compressor drives
- Power conversion and rectifier systems
- Process control and automation equipment
FMAC NEO Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 300 VAC (standard) / 520 VAC (machine safety) |
| Rated Current | 16–230 A |
| Frequency | 50/60 Hz |
| Filter Stages | 1 |
| Phase Configuration | 3-phase, without neutral |
| Operating Temperature | -40°C to 100°C |
| Housing Material | Metal |
| Terminal Type | Screw clamps |
| Machine Safety | IEC 60204-1 (selected variants) |
| Leakage Current (Industrial) | Standard |
| Leakage Current (Low Leakage) | Low leakage (available up to 64 A) |
| Weight | 0.9–4 kg |
| VDE Certificate | 40049000 |
| UL File | E72928 |
| Application Standards | IEC/UL 62368-1 |
| Compliances | CE, UKCA, RoHS, China RoHS, REACH |
| Packaging | 1 pc |
FMAC NEO Variants & Order Codes
|
Order No. |
Current (A) |
Type |
Machine Safety |
Pkg |
|---|---|---|---|---|
|
3-138-283 |
16 |
Industrial |
Yes (IEC 60204-1) |
1 |
|
3-138-284 |
25 |
Industrial |
Yes (IEC 60204-1) |
1 |
|
3-138-285 |
36 |
Industrial |
Yes (IEC 60204-1) |
1 |
|
3-138-286 |
50 |
Industrial |
Yes (IEC 60204-1) |
1 |
|
3-138-287 |
64 |
Industrial |
Yes (IEC 60204-1) |
1 |
|
3-138-288 |
80 |
Industrial |
Yes (IEC 60204-1) |
1 |
|
3-138-289 |
110 |
Industrial |
Yes (IEC 60204-1) |
1 |
|
3-138-290 |
180 |
Industrial |
Yes (IEC 60204-1) |
1 |
|
3-138-291 |
230 |
Industrial |
Yes (IEC 60204-1) |
1 |
|
3-138-292 |
16 |
Low Leakage |
Yes (IEC 60204-1) |
1 |
|
3-138-293 |
25 |
Low Leakage |
Yes (IEC 60204-1) |
1 |
|
3-138-294 |
36 |
Low Leakage |
Yes (IEC 60204-1) |
1 |
|
3-138-296 |
50 |
Low Leakage |
Yes (IEC 60204-1) |
1 |
|
3-138-297 |
64 |
Low Leakage |
Yes (IEC 60204-1) |
1 |
|
3-104-580 |
16 |
Industrial |
No |
1 |
|
3-104-581 |
25 |
Industrial |
No |
1 |
|
3-104-582 |
36 |
Industrial |
No |
1 |
|
3-104-583 |
50 |
Industrial |
No |
1 |
|
3-104-584 |
64 |
Industrial |
No |
1 |
|
3-104-585 |
80 |
Industrial |
No |
1 |
|
3-104-586 |
110 |
Industrial |
No |
1 |
|
3-104-587 |
180 |
Industrial |
No |
1 |
|
3-104-588 |
230 |
Industrial |
No |
1 |
|
3-104-862 |
16 |
Low Leakage |
No |
1 |
|
3-104-841 |
25 |
Low Leakage |
No |
1 |
|
3-104-872 |
36 |
Low Leakage |
No |
1 |
|
3-104-873 |
50 |
Low Leakage |
No |
1 |
|
3-104-874 |
64 |
Low Leakage |
No |
1 |
Downloads & Documentation
FMAC NEO Datasheet
