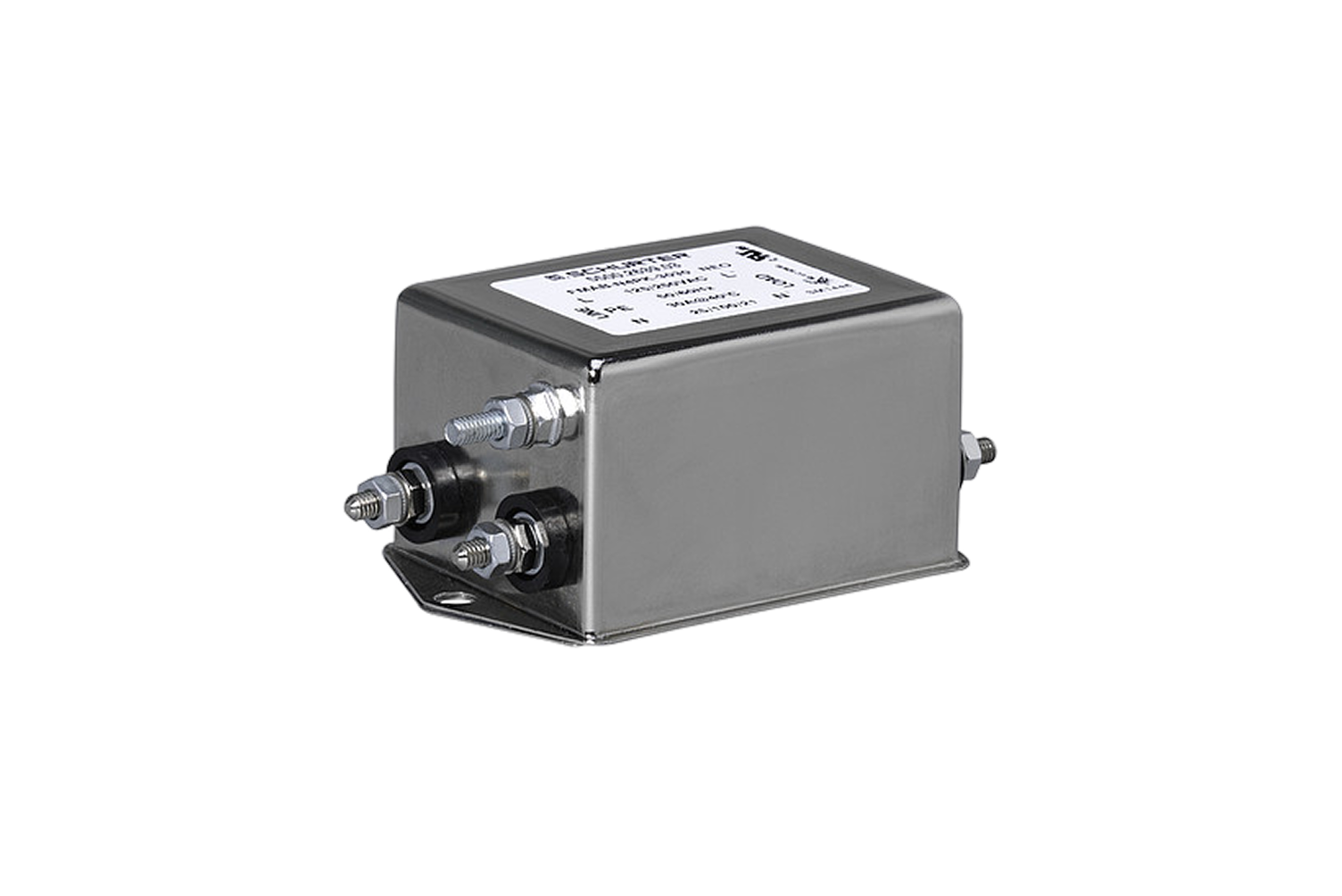

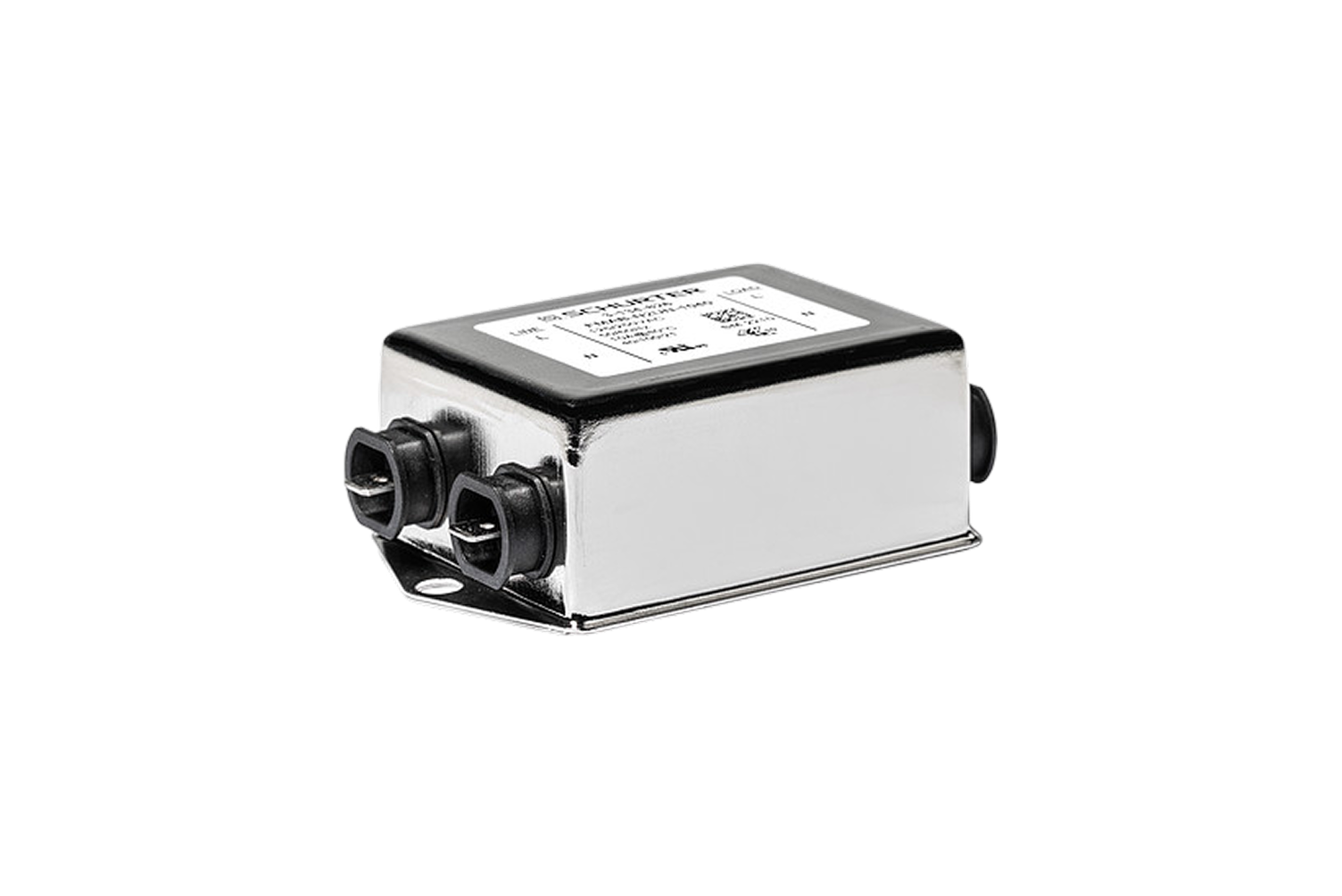

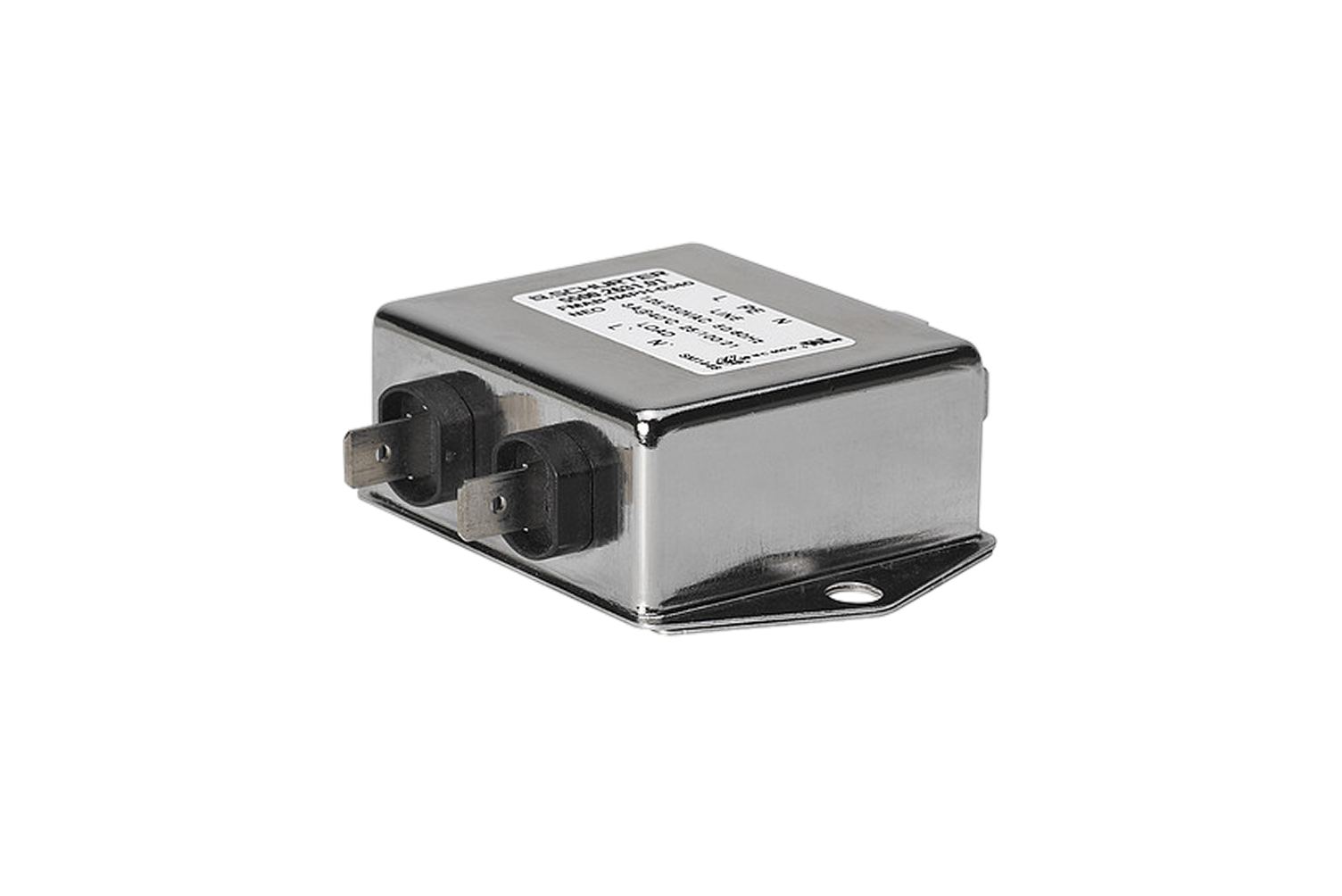

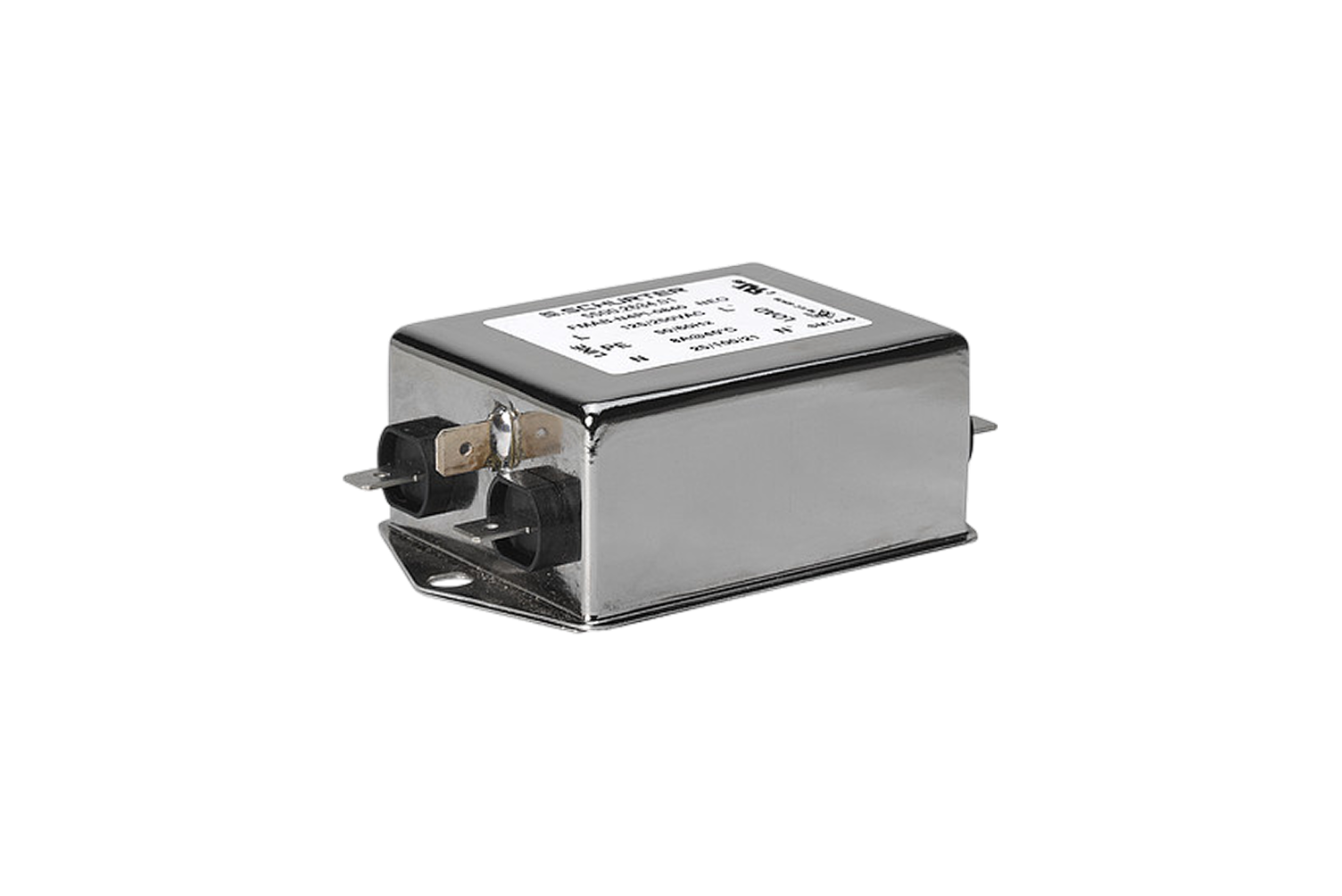

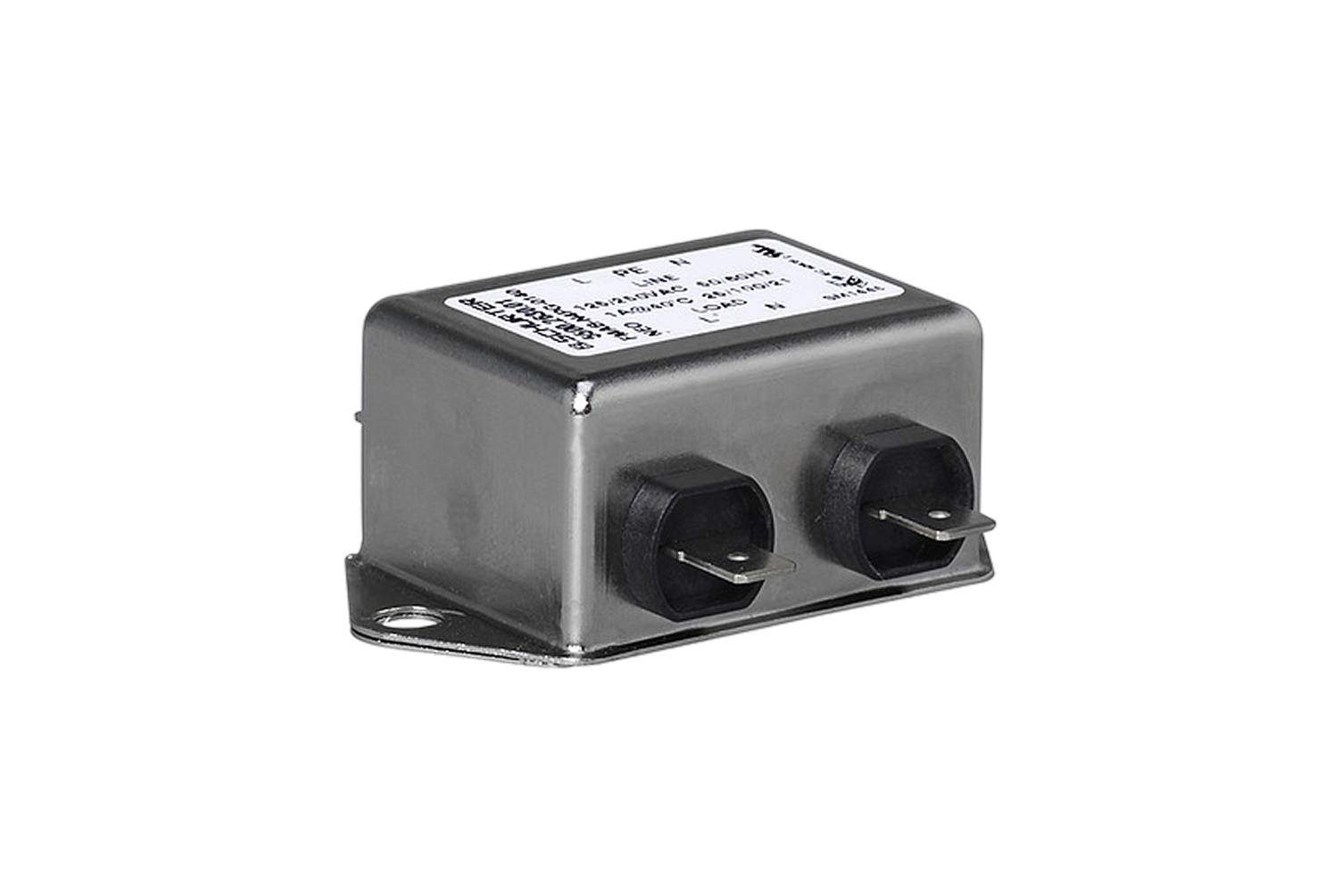

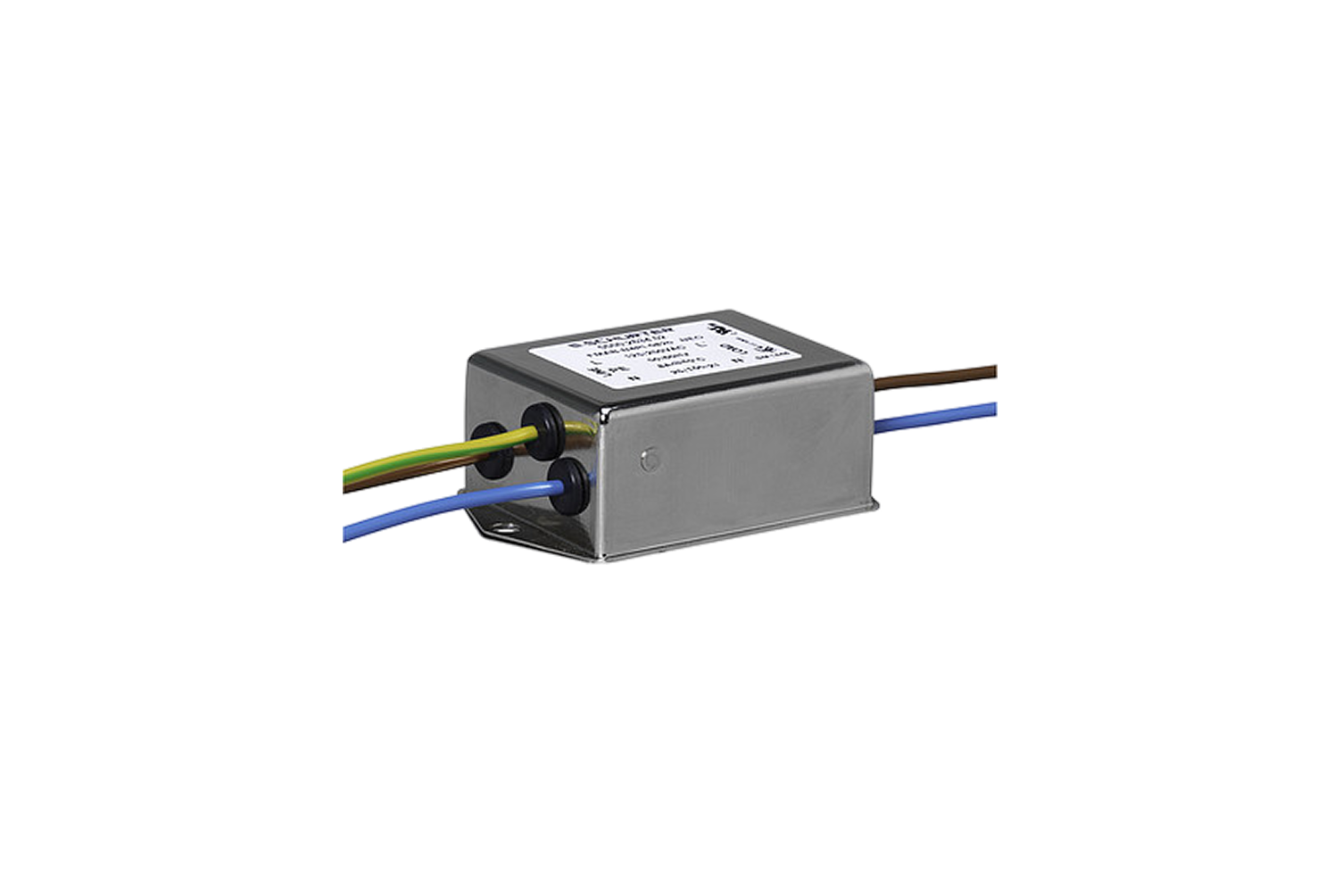

Schurter FMAB NEO Single-Phase EMC Filter
250 VAC | 1–60 A | 4 Designs | Standard & Medical (IEC 60601-1) | Protection Class I & II
Schurter FMAB NEO Single-Phase EMC Filter Overview
The Schurter FMAB NEO is the current-generation single-phase EMC filter, rated 1–60 A at 250 VAC from -40°C to 100°C. It supersedes the FMAB, FMLB-09 and FMW-41 series. Four design variants are available – N (excellent symmetrical attenuation), P (high symmetrical), Q (standard symmetrical), and HP (high performance) – giving engineers precise attenuation optimisation for their specific EMC environment. Standard, medical M5 (<0.005 mA) and medical M80 (<0.08 mA) leakage versions are all available, with Protection Class I and Class II options for medical applications. An optional integrated VDR (320 VAC / 420 VDC / 67 J) and ground line choke variants expand application coverage.
-
Features
-
- Four design variants: N (excellent symm.), P (high symm.), Q (standard symm.), HP (high performance)
- Protection Class I and II versions available for medical applications
- Ground line choke variants available for design N
- Optional surge protection VDR: 320 VAC / 420 VDC / 67 J
- Quick connect 6.3×0.8 mm or bolt/nut M4/M6 terminals depending on current rating
- VDE certificate 40041643; UL file E72928
- IEC/UL 62368-1; IEC/UL 60601-1 (medical: 1 MOOP/1 MOPP Class I; 2 MOOP/2 MOPP Class II)
- CE, UKCA, RoHS, China RoHS, REACH compliant
-
Compatible Applications
The FMAB NEO is used across a broad range of single-phase AC equipment, from general industrial to medical-grade applications:
-
- Industrial power supplies and motor drives
- Medical instruments and patient-connected equipment
- Power conversion and inverter systems
- Test and measurement equipment
- IT infrastructure and telecommunications
FMAB NEO Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 250 VAC |
| Rated Current | 1–60 A |
| Frequency | 50/60 Hz |
| Filter Stages | 1 |
| Operating Temperature | -40°C to 100°C |
| Designs Available | N (excellent symm.), P (high symm.), Q (standard symm.), HP (high performance) |
| Protection Class | Class I and Class II |
| Leakage Current (Standard) | < 0.5 mA (1–20 A); < 1 mA (10 A design N) |
| Leakage Current (Medical M5) | < 0.005 mA |
| Leakage Current (Medical M80) | < 0.08 mA |
| Surge Protection (VDR option) | 320 VAC / 420 VDC / 67 J |
| Terminal (≤20 A) | Quick connect 6.3×0.8 mm |
| Terminal (30 A) | Bolt/nut M4 |
| Terminal (60 A) | Bolt/nut M6 |
| IP Rating | IP20 |
| VDE Certificate | 40041643 |
| UL File | E72928 |
| Application Standards | IEC/UL 62368-1; IEC/UL 60601-1 |
| Compliances | CE, UKCA, RoHS, China RoHS, REACH |
