Schurter FMAB HV High Voltage Single-Phase EMC Filter
277 VAC / 400 VDC | 1–20 A | Standard, Medical M5 & M80

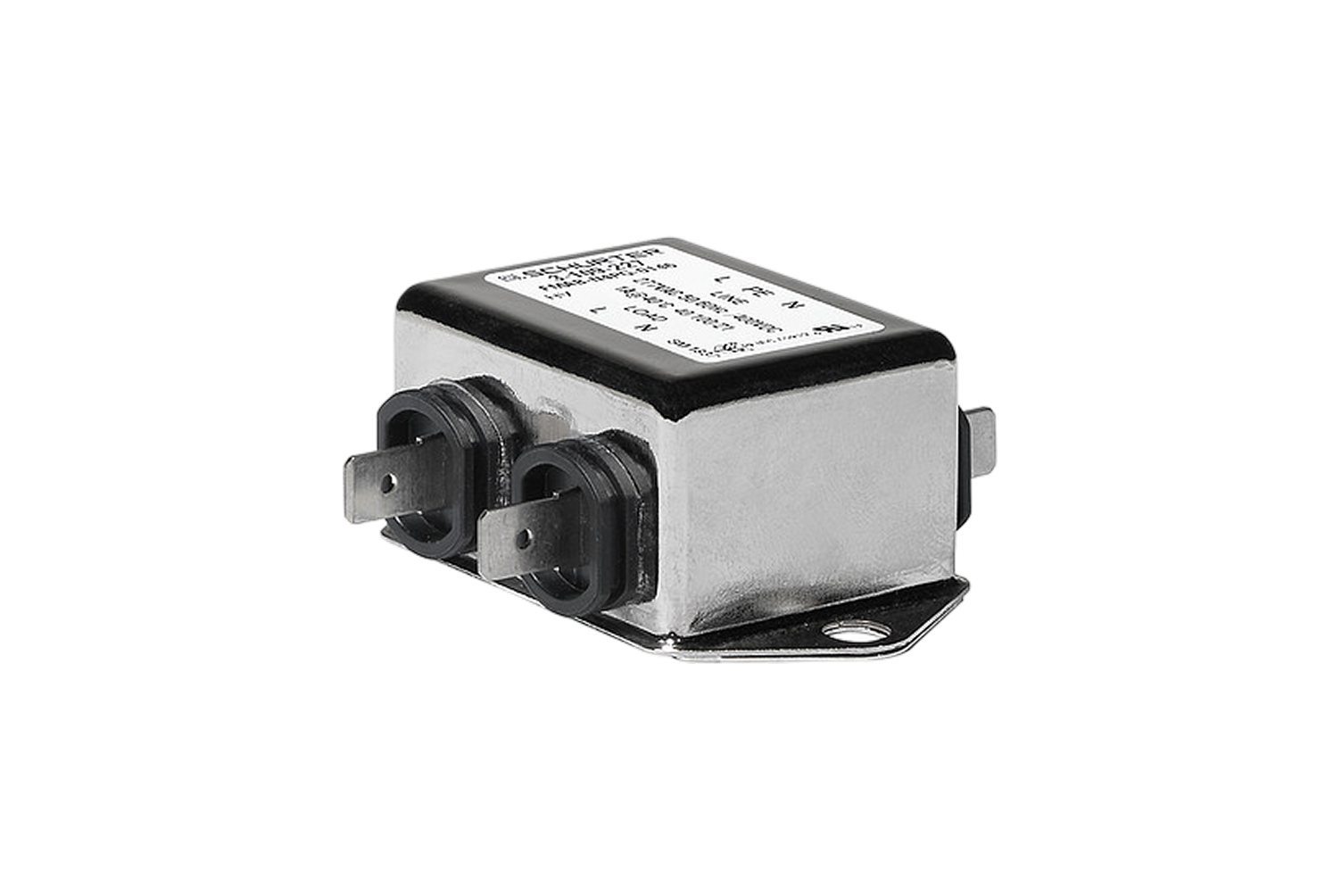

Schurter FMAB HV High Voltage EMC Filter Overview
The Schurter FMAB HV is a single-phase EMC filter rated for operation at 277 VAC and 400 VDC, covering currents from 1 to 20 A at temperatures from -40°C to 100°C. Its higher voltage rating makes it directly applicable to North American 277 V single-phase mains and to DC bus filtering at 400 VDC, where standard 250 VAC filters are insufficient. Standard, medical M5 (<0.005 mA) and medical M80 (<0.08 mA) leakage versions are available.
-
Features
-
- Rated for 277 VAC and 400 VDC — suitable for North American supply voltages and DC bus applications
- Standard (< 0.5 mA), medical M5 (< 0.005 mA) and medical M80 (< 0.08 mA) leakage versions
- Operating temperature -40°C to 100°C
- VDE certificate 40050001; UL file E495089
- IEC/UL 62368-1 and IEC/UL 60601-1 (1 MOOP / 1 MOPP) application standards
- CE, UKCA, RoHS, China RoHS, REACH compliant
-
Compatible Applications
Targeted at equipment requiring EMC filtering at higher AC or DC voltages:
-
- 277 VAC single-phase equipment for the North American market
- DC bus filtering in industrial converters at 400 VDC
- Power supplies for high-voltage medical equipment
- Industrial motor drive input stages
- Renewable energy inverter auxiliary circuits
FMAB HV Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 277 VAC / 400 VDC |
| Rated Current | 1–20 A |
| Frequency | 50/60 Hz |
| Filter Stages | 1 |
| Operating Temperature | -40°C to 100°C |
| Leakage Current (Standard) | < 0.5 mA |
| Leakage Current (Medical M5) | < 0.005 mA |
| Leakage Current (Medical M80) | < 0.08 mA |
| VDE Certificate | 40050001 |
| UL File | E495089 |
| Application Standards | IEC/UL 62368-1; IEC/UL 60601-1 |
| Compliances | CE, UKCA, RoHS, China RoHS, REACH |
FMAB HV Variants & Order Codes
|
Order No. |
Current (A) |
Type |
Leakage (mA) |
Housing |
|---|---|---|---|---|
|
3-109-227 |
1 |
Standard |
<0.5 |
PG |
|
3-109-228 |
3 |
Standard |
<0.5 |
PH |
|
3-109-229 |
4 |
Standard |
<0.5 |
PH |
|
3-109-230 |
6 |
Standard |
<0.5 |
PH |
|
3-109-231 |
8 |
Standard |
<0.5 |
PI |
|
3-109-232 |
10 |
Industrial |
<0.5 |
PI |
|
3-109-233 |
12 |
Industrial |
<0.5 |
PI |
|
3-109-234 |
16 |
Industrial |
<0.5 |
UB |
|
3-109-235 |
20 |
Industrial |
<0.5 |
UB |
|
3-109-236 |
1 |
Medical M5 |
<0.005 |
PG |
|
3-109-237 |
3 |
Medical M5 |
<0.005 |
PH |
|
3-109-238 |
4 |
Medical M5 |
<0.005 |
PH |
|
3-109-239 |
6 |
Medical M5 |
<0.005 |
PH |
|
3-109-240 |
8 |
Medical M5 |
<0.005 |
PI |
|
3-109-241 |
10 |
Medical M5 |
<0.005 |
PI |
|
3-109-242 |
12 |
Medical M5 |
<0.005 |
PI |
|
3-109-243 |
16 |
Medical M5 |
<0.005 |
UB |
|
3-109-244 |
20 |
Medical M5 |
<0.005 |
UB |
|
3-109-426 |
1 |
Medical M80 |
<0.08 |
PG |
|
3-109-427 |
3 |
Medical M80 |
<0.08 |
PH |
|
3-109-428 |
4 |
Medical M80 |
<0.08 |
PH |
|
3-109-429 |
6 |
Medical M80 |
<0.08 |
PH |
|
3-109-430 |
8 |
Medical M80 |
<0.08 |
PI |
|
3-109-431 |
10 |
Medical M80 |
<0.08 |
PI |
|
3-109-432 |
12 |
Medical M80 |
<0.08 |
PI |
|
3-109-433 |
16 |
Medical M80 |
<0.08 |
UB |
|
3-109-434 |
20 |
Medical M80 |
<0.08 |
UB |
