Schurter 5500 PCB Mount Single-Phase EMC Filter
PCB Mount | 250 VAC | 1–10 A | Standard & Medical (IEC 60601-1)
Schurter 5500 PCB Mount EMC Filter Overview
The Schurter 5500 is a compact single-phase line filter designed for direct PCB mounting, rated 1–10 A at 250 VAC across an operating temperature range of -25°C to 85°C. The thermoplastic UL 94V-0 housing integrates directly onto the board, making it well suited to space-constrained equipment where a chassis-mount filter is impractical. A medical M5 configuration is available with the Y-capacitor omitted and a 1 MΩ discharge resistor fitted, achieving leakage current below 0.005 mA to satisfy IEC 60601-1 (1 MOOP / 1 MOPP) requirements.
-
Features
-
- Thermoplastic UL 94V-0 housing; direct PCB mounting
- CX = 47 nF; standard CY = 2.2 nF; medical M5: CY omitted, discharge resistor R = 1 MΩ
- Inductance range: 2×11 mH (1 A) to 2×0.4 mH (10 A)

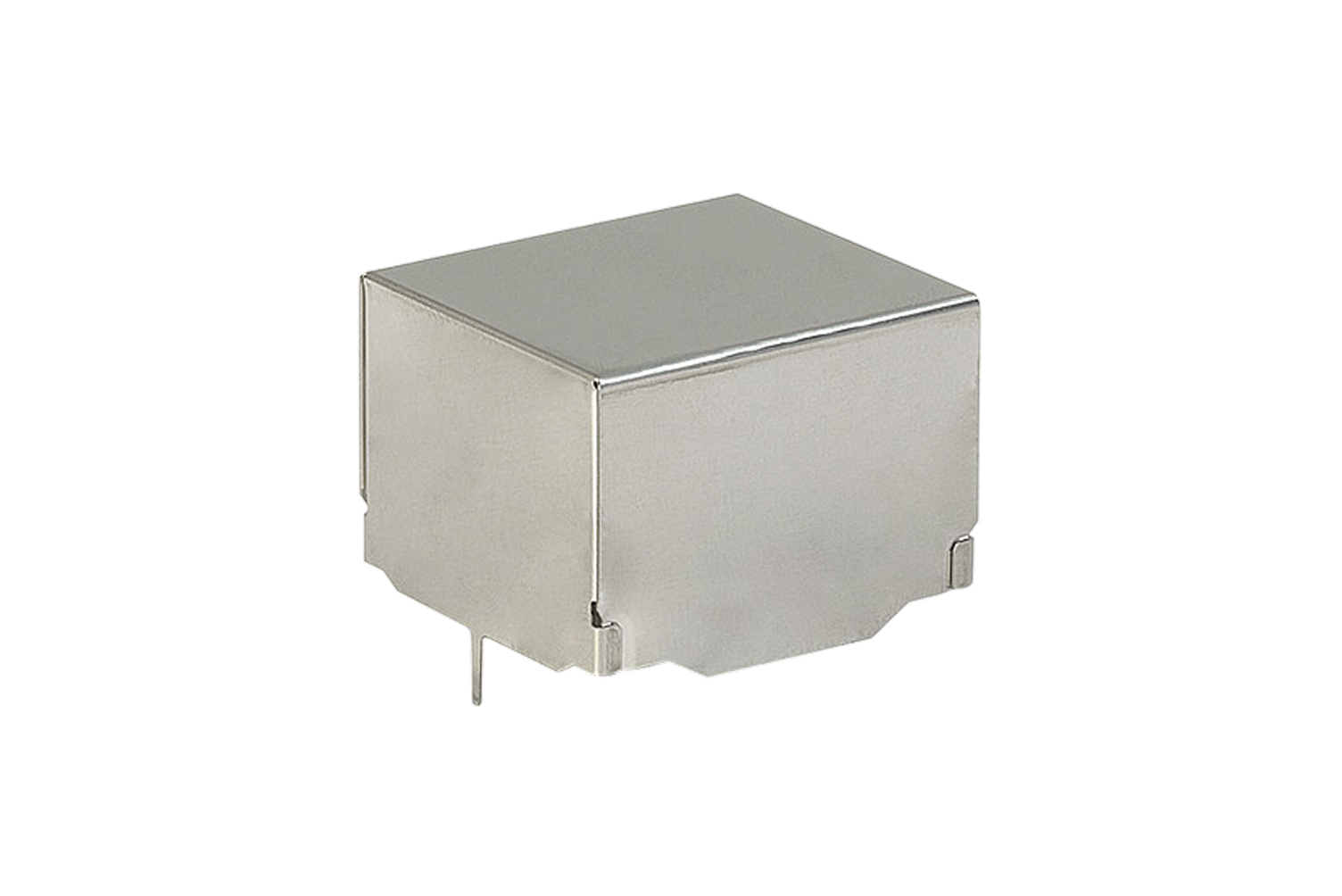

- Optional PCB shield variant (order 5500.0001, 20 g) available for isolating sensitive board areas
- VDE certificate 101307; UL file E72928
- CE, UKCA, RoHS, China RoHS, REACH compliant
- Packaging: 100 pcs
-
Compatible Applications
The 5500 is suited to board-level EMI suppression in single-phase AC-powered equipment where PCB real estate is limited:
-
- Medical and diagnostic instruments
- Laboratory and measurement equipment
- IT and telecommunications equipment
- Industrial control boards and embedded systems
- Consumer and domestic appliances
5500 Technical Specifications
Technical specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 250 VAC |
| Rated Current | 1–10 A |
| Frequency | 50/60 Hz |
| Filter Stages | 1 |
| Operating Temperature | -25°C to 85°C |
| Housing Material | Thermoplastic, UL 94V-0 |
| Mounting | PCB direct |
| CX Capacitor | 47 nF |
| CY Capacitor (Standard) | 2.2 nF |
| CY Capacitor (Medical M5) | Not fitted |
| Discharge Resistor (Medical M5) | 1 MΩ |
| Leakage Current (Standard) | < 3.5 mA |
| Leakage Current (Medical M5) | < 0.005 mA |
| VDE Certificate | 101307 |
| UL File | E72928 |
| Application Standards | IEC/UL 62368-1; IEC/UL 60601-1 |
| Compliances | CE, UKCA, RoHS, China RoHS, REACH |
| Packaging | 100 pcs |
5500 Variants & Order Codes
|
Order No. |
Current (A) |
Type |
Weight (g) |
Pkg (pcs) |
|---|---|---|---|---|
|
5500.0001 |
— |
PCB Shield |
20 |
100 |
|
5500.0155.1 |
1 |
Standard |
26 |
100 |
|
5500.0255.1 |
2 |
Standard |
26 |
100 |
|
5500.0455.1 |
4 |
Standard |
28 |
100 |
|
5500.0655.1 |
6 |
Standard |
30 |
100 |
|
5500.0855.1 |
8 |
Standard |
32 |
100 |
|
5500.1055.1 |
10 |
Standard |
36 |
100 |
|
5500.0155.3 |
1 |
Medical M5 |
26 |
100 |
|
5500.0255.3 |
2 |
Medical M5 |
26 |
100 |
|
5500.0455.3 |
4 |
Medical M5 |
28 |
100 |
|
5500.0655.3 |
6 |
Medical M5 |
30 |
100 |
|
5500.0855.3 |
8 |
Medical M5 |
32 |
100 |
|
5500.1055.3 |
10 |
Medical M5 |
36 |
100 |
Downloads and Resources
5500 Datasheet
