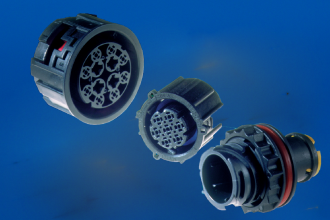

The VKR PLUS / VKS PLUS system is designed for splash-proof and high vibration resistance applications according to DIN 72585. Low and high current ratings are possible, so that the system can be used in many different places (e.g. sensors near commercial vehicle engines, solenoid valves). The terminals have an external stainless steel spring. It guarantees the required high contact pressure and secure support in the housing cavity. The insulation claw is designed for single wire seals. Stainless steel spring and single wire seal absorbs the vibrations in the housing. For this kind of application, housings with different coding variations are available. The 4-way coupling is according to DIN 72 585. It has either angled or straight wire entries designed for the connection of convoluted tube or multicore cable.
Document downloads
Further information
VKR PLUS / VKS PLUS uses
- For high vibration resistance application
- For splash-proof application
- For transmission of low and high currents
- As a flying coupling and for contacting of sensors with a connection according to DIN 72585
- As a combined connector system with MKR PLUS / MKS PLUS terminals
Lear Corporation, formerly Grote and Hartmann, manufacture terminals and connectors, junction boxes, machinery to produce wire harnesses and much more.
Key benefits
-
External stainless steel spring of the VKR PLUS with 4-point contact for secure locking in the housing and absorption of vibration
-
High contact back-out force through locking in housing with stainless steel spring
-
High contact force
