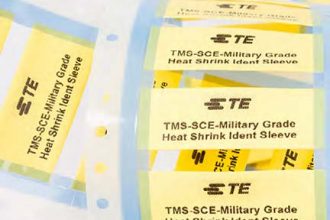

TMS-SCE marker sleeves are designed to meet wire and cable identification needs with high performance requirements. Made from durable, flame retardant, radiation cross linked heat-shrinkable polyolefin.
| Ordering Description |
Part Number | Pack Size |
Colour | Supplied dia (mm) |
Recovered dia (mm) |
Recommended Use Range (Min – Max) |
|||
| pc | mm | Inches | mm | Inches | mm | Inches | |||
| TMS-SCE-3/32-2.0-4 | 4407170001 | 250 | Yellow | 2.4 | 0.093 | 0.7 | 0.031 | 0.8-1.9 | 0.032-0.075 |
| TMS-SCE-1K-3/32-2.0-4 | 1289310001 | 1000 | Yellow | 2.4 | 0.093 | 0.7 | 0.031 | 0.8-1.9 | 0.032-0.075 |
| TMS-SCE-3/32-2.0-S1-4 | 3249670001 | 250 | Yellow | 2.4 | 0.093 | 0.7 | 0.031 | 0.8-1.9 | 0.032-0.075 |
| TMS-SCE-1K-3/32-2.0-S1-4 | E85726-000 | 1000 | Yellow | 2.4 | 0.093 | 0.7 | 0.031 | 0.8-1.9 | 0.032-0.075 |
| TMS-SCE-1/8-2.0-4 | 8350110001 | 250 | Yellow | 3.2 | 0.125 | 1 | 0.042 | 1.1-2.6 | 0.044-0.105 |
| TMS-SCE-1K-1/8-2.0-4 | 43430001 | 1000 | Yellow | 3.2 | 0.125 | 1 | 0.042 | 1.1-2.6 | 0.044-0.105 |
| TMS-SCE-1/8-2.0-S1-4 | 9246090001 | 250 | Yellow | 3.2 | 0.125 | 1 | 0.042 | 1.1-2.6 | 0.044-0.105 |
| TMS-SCE-1K-1/8-2.0-S1-4 | 2165230001 | 1000 | Yellow | 3.2 | 0.125 | 1 | 0.042 | 1.1-2.6 | 0.044-0.105 |
| TMS-SCE-3/16-2.0-4 | 5332610001 | 250 | Yellow | 4.8 | 0.187 | 1.5 | 0.062 | 1.7-4.0 | 0.069-0.160 |
| TMS-SCE-1K-3/16-2.0-4 | 7957790001 | 1000 | Yellow | 4.8 | 0.187 | 1.5 | 0.062 | 1.7-4.0 | 0.069-0.160 |
| TMS-SCE-3/16-2.0-S1-4 | 5883010001 | 250 | Yellow | 4.8 | 0.187 | 1.5 | 0.062 | 1.7-4.0 | 0.069-0.160 |
| TMS-SCE-1K-3/16-2.0-S1-4 | 2489010001 | 1000 | Yellow | 4.8 | 0.187 | 1.5 | 0.062 | 1.7-4.0 | 0.069-0.160 |
| TMS-SCE-1/4-2.0-4 | 3906690001 | 250 | Yellow | 6.4 | 0.25 | 2.1 | 0.083 | 2.3-5.4 | 0.091-0.215 |
| TMS-SCE-1K-1/4-2.0-4 | 7525070001 | 1000 | Yellow | 6.4 | 0.25 | 2.1 | 0.083 | 2.3-5.4 | 0.091-0.215 |
| TMS-SCE-1/4-2.0-S1-4 | 4785230001 | 250 | Yellow | 6.4 | 0.25 | 2.1 | 0.083 | 2.3-5.4 | 0.091-0.215 |
| TMS-SCE-1K-1/4-2.0-S1-4 | 5460650001 | 1000 | Yellow | 6.4 | 0.25 | 2.1 | 0.083 | 2.3-5.4 | 0.091-0.215 |
| TMS-SCE-3/8-2.0-4 | 5294130001 | 250 | Yellow | 9.5 | 0.375 | 3.1 | 0.125 | 3.4-8.1 | 0.137-0.320 |
| TMS-SCE-1K-3/8-2.0-4 | 2410510001 | 1000 | Yellow | 9.5 | 0.375 | 3.1 | 0.125 | 3.4-8.1 | 0.137-0.320 |
| TMS-SCE-3/8-2.0-S1-4 | 313730001 | 250 | Yellow | 9.5 | 0.375 | 3.1 | 0.125 | 3.4-8.1 | 0.137-0.320 |
| TMS-SCE-1K-3/8-2.0-S1-4 | 6694470001 | 1000 | Yellow | 9.5 | 0.375 | 3.1 | 0.125 | 3.4-8.1 | 0.137-0.320 |
| TMS-SCE-1/2-2.0-4 | 6325250001 | 250 | Yellow | 12.7 | 0.5 | 4.2 | 0.166 | 4.6-10.7 | 0.183-0.425 |
| TMS-SCE-1K-1/2-2.0-4 | 8988010001 | 1000 | Yellow | 12.7 | 0.5 | 4.2 | 0.166 | 4.6-10.7 | 0.183-0.425 |
| TMS-SCE-1/2-2.0-S1-4 | 4809650001 | 250 | Yellow | 12.7 | 0.5 | 4.2 | 0.166 | 4.6-10.7 | 0.183-0.425 |
| TMS-SCE-1K-1/2-2.0-S1-4 | 5768930001 | 1000 | Yellow | 12.7 | 0.5 | 4.2 | 0.166 | 4.6-10.7 | 0.183-0.425 |
| TMS-SCE-3/4-2.0-4 | 6315830001 | 250 | Yellow | 19 | 0.75 | 6.3 | 0.25 | 6.9-16.2 | 0.275-0.640 |
| TMS-SCE-1K-3/4-2.0-4 | 9463210001 | 1000 | Yellow | 19 | 0.75 | 6.3 | 0.25 | 6.9-16.2 | 0.275-0.640 |
| TMS-SCE-3/4-2.0-S1-4 | 6176350001 | 250 | Yellow | 19 | 0.75 | 6.3 | 0.25 | 6.9-16.2 | 0.275-0.640 |
| TMS-SCE-1K-3/4-2.0-S1-4 | A60108-000 | 1000 | Yellow | 19 | 0.75 | 6.3 | 0.25 | 6.9-16.2 | 0.275-0.640 |
| TMS-SCE-1-2.0-4 | 7992730001 | 250 | Yellow | 25.4 | 1 | 8.4 | 0.333 | 9.2-21.5 | 0.366-0.850 |
| TMS-SCE-1K-1-2.0-4 | 2290750001 | 1000 | Yellow | 25.4 | 1 | 8.4 | 0.333 | 9.2-21.5 | 0.366-0.850 |
| TMS-SCE-1-2.0-S1-4 | 1130910001 | 250 | Yellow | 25.4 | 1 | 8.4 | 0.333 | 9.2-21.5 | 0.366-0.850 |
| TMS-SCE-1K-1-2.0-S1-4 | 5688990001 | 1000 | Yellow | 25.4 | 1 | 8.4 | 0.333 | 9.2-21.5 | 0.366-0.850 |
| TMS-SCE-1-1/2-2.0-4 | 6706090001 | 250 | Yellow | 38.1 | 1.5 | 19 | 0.75 | 20.9-33.0 | 0.825-1.300 |
| TMS-SCE-1K-1-1/2-2.0-4 | 3880430001 | 1000 | Yellow | 38.1 | 1.5 | 19 | 0.75 | 20.9-33.0 | 0.825-1.300 |
| TMS-SCE-1-1/2-2.0-S1-4 | 907130001 | 250 | Yellow | 38.1 | 1.5 | 19 | 0.75 | 20.9-33.0 | 0.825-1.300 |
| TMS-SCE-1K-1-1/2-2.0-S1-4 | C857260001 | 1000 | Yellow | 38.1 | 1.5 | 19 | 0.75 | 20.9-33.0 | 0.825-1.300 |
| TMS-SCE-2-2.0-4 | 3279370001 | 250 | Yellow | 50.8 | 2 | 25.4 | 1 | 27.9-44.9 | 1.100-1.750 |
| TMS-SCE-1K-2-2.0-4 | 6194590001 | 1000 | Yellow | 50.8 | 2 | 25.4 | 1 | 27.9-44.9 | 1.100-1.750 |
| TMS-SCE-2-2.0-S1-4 | EJ2639-000 | 250 | Yellow | 50.8 | 2 | 25.4 | 1 | 27.9-44.9 | 1.100-1.750 |
| TMS-SCE-1K-2-2.0-S1-4 | EH8583-000 | 1000 | Yellow | 50.8 | 2 | 25.4 | 1 | 27.9-44.9 | 1.100-1.750 |
| TMS-SCE-2-1/4-2.0-4 | 186782-000 | 250 | Yellow | 57.1 | 2.25 | 19 | 0.75 | 22.3-50.8 | 0.880-2.000 |
| TMS-SCE-1K-2-1/4-2.0-4 | E09585-000 | 1000 | Yellow | 57.1 | 2.25 | 19 | 0.75 | 22.3-50.8 | 0.880-2.000 |
| TMS-SCE-2-1/4-2.0-S1-4 | CC9058-000 | 250 | Yellow | 57.1 | 2.25 | 19 | 0.75 | 22.3-50.8 | 0.880-2.000 |
| TMS-SCE-1K-2-1/4-2.0-S1-4 | EF8491-000 | 1000 | Yellow | 57.1 | 2.25 | 19 | 0.75 | 22.3-50.8 | 0.880-2.000 |
| TMS-SCE-3/32-2.0-9 | 6632750001 | 250 | White | 2.4 | 0.093 | 0.7 | 0.031 | 0.8-1.9 | 0.032-0.075 |
| TMS-SCE-1K-3/32-2.0-9 | 969750001 | 1000 | White | 2.4 | 0.093 | 0.7 | 0.031 | 0.8-1.9 | 0.032-0.075 |
| TMS-SCE-3/32-2.0-S1-9 | 1506550001 | 250 | White | 2.4 | 0.093 | 0.7 | 0.031 | 0.8-1.9 | 0.032-0.075 |
| TMS-SCE-1K-3/32-2.0-S1-9 | 5248310001 | 1000 | White | 2.4 | 0.093 | 0.7 | 0.031 | 0.8-1.9 | 0.032-0.075 |
| TMS-SCE-1/8-2.0-9 | 8350110001 | 250 | White | 3.2 | 0.125 | 1 | 0.042 | 1.1-2.6 | 0.044-0.105 |
| TMS-SCE-1K-1/8-2.0-9 | 4554650001 | 1000 | White | 3.2 | 0.125 | 1 | 0.042 | 1.1-2.6 | 0.044-0.105 |
| TMS-SCE-1/8-2.0-S1-9 | 9246090001 | 250 | White | 3.2 | 0.125 | 1 | 0.042 | 1.1-2.6 | 0.044-0.105 |
| TMS-SCE-1K-1/8-2.0-S1-9 | 9435730001 | 1000 | White | 3.2 | 0.125 | 1 | 0.042 | 1.1-2.6 | 0.044-0.105 |
| TMS-SCE-3/16-2.0-9 | 5273550001 | 250 | White | 4.8 | 0.187 | 1.5 | 0.062 | 1.7-4.0 | 0.069-0.160 |
| TMS-SCE-1K-3/16-2.0-9 | 1099510001 | 1000 | White | 4.8 | 0.187 | 1.5 | 0.062 | 1.7-4.0 | 0.069-0.160 |
| TMS-SCE-3/16-2.0-S1-9 | 3573650001 | 250 | White | 4.8 | 0.187 | 1.5 | 0.062 | 1.7-4.0 | 0.069-0.160 |
| TMS-SCE-1K-3/16-2.0-S1-9 | 3549610001 | 1000 | White | 4.8 | 0.187 | 1.5 | 0.062 | 1.7-4.0 | 0.069-0.160 |
| TMS-SCE-1/4-2.0-9 | 1-1878866-4 | 250 | White | 6.4 | 0.25 | 2.1 | 0.083 | 2.3-5.4 | 0.091-0.215 |
| TMS-SCE-1K-1/4-2.0-9 | 7474490001 | 1000 | White | 6.4 | 0.25 | 2.1 | 0.083 | 2.3-5.4 | 0.091-0.215 |
| TMS-SCE-1/4-2.0-S1-9 | 3593590001 | 250 | White | 6.4 | 0.25 | 2.1 | 0.083 | 2.3-5.4 | 0.091-0.215 |
| TMS-SCE-1K-1/4-2.0-S1-9 | 4377070001 | 1000 | White | 6.4 | 0.25 | 2.1 | 0.083 | 2.3-5.4 | 0.091-0.215 |
| TMS-SCE-3/8-2.0-9 | 9422810001 | 250 | White | 9.5 | 0.375 | 3.1 | 0.125 | 3.4-8.1 | 0.137-0.320 |
| TMS-SCE-1K-3/8-2.0-9 | 120930001 | 1000 | White | 9.5 | 0.375 | 3.1 | 0.125 | 3.4-8.1 | 0.137-0.320 |
| TMS-SCE-3/8-2.0-S1-9 | 937690001 | 250 | White | 9.5 | 0.375 | 3.1 | 0.125 | 3.4-8.1 | 0.137-0.320 |
| TMS-SCE-1K-3/8-2.0-S1-9 | 846169-000 | 1000 | White | 9.5 | 0.375 | 3.1 | 0.125 | 3.4-8.1 | 0.137-0.320 |
| TMS-SCE-1/2-2.0-9 | 5061850001 | 250 | White | 12.7 | 0.5 | 4.2 | 0.166 | 4.6-10.7 | 0.183-0.425 |
| TMS-SCE-1K-1/2-2.0-9 | 7385170001 | 1000 | White | 12.7 | 0.5 | 4.2 | 0.166 | 4.6-10.7 | 0.183-0.425 |
| TMS-SCE-1/2-2.0-S1-9 | 138090001 | 250 | White | 12.7 | 0.5 | 4.2 | 0.166 | 4.6-10.7 | 0.183-0.425 |
| TMS-SCE-1K-1/2-2.0-S1-9 | 3212430001 | 1000 | White | 12.7 | 0.5 | 4.2 | 0.166 | 4.6-10.7 | 0.183-0.425 |
| TMS-SCE-3/4-2.0-9 | 567590001 | 250 | White | 19 | 0.75 | 6.3 | 0.25 | 6.9-16.2 | 0.275-0.640 |
| TMS-SCE-1K-3/4-2.0-9 | 4575670001 | 1000 | White | 19 | 0.75 | 6.3 | 0.25 | 6.9-16.2 | 0.275-0.640 |
| TMS-SCE-3/4-2.0-S1-9 | 6656610001 | 250 | White | 19 | 0.75 | 6.3 | 0.25 | 6.9-16.2 | 0.275-0.640 |
| TMS-SCE-1K-3/4-2.0-S1-9 | 9203730001 | 1000 | White | 19 | 0.75 | 6.3 | 0.25 | 6.9-16.2 | 0.275-0.640 |
| TMS-SCE-1-2.0-9 | 4397130001 | 250 | White | 25.4 | 1 | 8.4 | 0.333 | 9.2-21.5 | 0.366-0.850 |
| TMS-SCE-1K-1-2.0-9 | 253350001 | 1000 | White | 25.4 | 1 | 8.4 | 0.333 | 9.2-21.5 | 0.366-0.850 |
| TMS-SCE-1-2.0-S1-9 | 5134530001 | 250 | White | 25.4 | 1 | 8.4 | 0.333 | 9.2-21.5 | 0.366-0.850 |
| TMS-SCE-1K-1-2.0-S1-9 | 1340650001 | 1000 | White | 25.4 | 1 | 8.4 | 0.333 | 9.2-21.5 | 0.366-0.850 |
| TMS-SCE-1-1/2-2.0-9 | 5414710001 | 250 | White | 38.1 | 1.5 | 19 | 0.75 | 20.9-33.0 | 0.825-1.300 |
| TMS-SCE-1K-1-1/2-2.0-9 | 1505370001 | 1000 | White | 38.1 | 1.5 | 19 | 0.75 | 20.9-33.0 | 0.825-1.300 |
| TMS-SCE-1-1/2-2.0-S1-9 | 2983910001 | 250 | White | 38.1 | 1.5 | 19 | 0.75 | 20.9-33.0 | 0.825-1.300 |
| TMS-SCE-1K-1-1/2-2.0-S1-9 | 9238830001 | 1000 | White | 38.1 | 1.5 | 19 | 0.75 | 20.9-33.0 | 0.825-1.300 |
| TMS-SCE-2-2.0-9 | 577739-000 | 250 | White | 50.8 | 2 | 25.4 | 1 | 27.9-44.9 | 1.100-1.750 |
| TMS-SCE-1K-2-2.0-9 | 7677230001 | 1000 | White | 50.8 | 2 | 25.4 | 1 | 27.9-44.9 | 1.100-1.750 |
| TMS-SCE-2-2.0-S1-9 | 344283-000 | 250 | White | 50.8 | 2 | 25.4 | 1 | 27.9-44.9 | 1.100-1.750 |
| TMS-SCE-1K-2-2.0-S1-9 | EH8582-000 | 1000 | White | 50.8 | 2 | 25.4 | 1 | 27.9-44.9 | 1.100-1.750 |
| TMS-SCE-2-1/4-2.0-9 | 191509-000 | 250 | White | 57.1 | 2.25 | 19 | 0.75 | 22.3-50.8 | 0.880-2.000 |
| TMS-SCE-1K-2-1/4-2.0-9 | D44774-000 | 1000 | White | 57.1 | 2.25 | 19 | 0.75 | 22.3-50.8 | 0.880-2.000 |
| TMS-SCE-2-1/4-2.0-S1-9 | 105297-000 | 250 | White | 57.1 | 2.25 | 19 | 0.75 | 22.3-50.8 | 0.880-2.000 |
| TMS-SCE-1K-2-1/4-2.0-S1-9 | EH8584-000 | 1000 | White | 57.1 | 2.25 | 19 | 0.75 | 22.3-50.8 | 0.880-2.000 |
Thermal transfer printable
Permanent identification sleeves
Lightweight for aerospace applications
Lightweight for aerospace applications
3:1 shrink ratio
