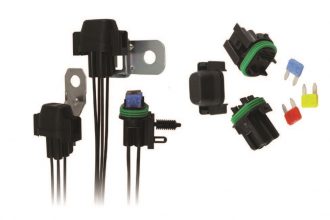

TE Connectivity offer two types of sealed two position fuse holders. Our compact, IP67 rated, two position mini fuse holder accepts AMP MCP (Multiple Contact Point) 2.8 contacts. It is constructed of heavy-duty thermoplastic to withstand severe vibration and mechanical shock. This rugged mini fuse holder can accommodate two active fuses and two spares. Our two position MAXI fuse holder accepts MCON 8 mm receptacle contacts. The heavy duty thermoplastic MAXI fuse holder is designed for harsh environments and accommodates a single fuse.
Available with integrated mounting feature, or dovetail that accepts mounting clips
Due to mounting being on the housing assembly instead of the cover, there is a reduced applied load on the seal, which provides a more robust seal interface
Can't find what you're looking for or just want to speak to someone about our products?
Both the sealed mini fuse holder and the MAXI fuse holder can be mounted using standard DEUTSCH DT and AMPSEAL 16 connector mounting clips, which are available in 90° and 180° options and in thermoplastic or metal material. When you need to add accessible circuit protection into your heavy-duty vehicle or equipment, you can count on our two position fuse holders to help make it easy.
