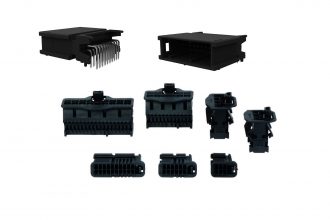

The NanoMQS Top Latch (TL) and Side Latch (SL) series features a high possible connector robustness, a multitude of possibilities in mechanical integration and manufacturability. Available in 2 to 32 connections and the ease of combination of several modules support a wide range coverage of applications. Smooth extraction and insertion along with convenient handling show that the miniaturization of connector systems does not necessarily signify loss of convenience.
Miniaturised terminal system for high density connectors
Signal terminal max. 3 Amps
Pin dimensions 0.5mm x 0.4mm
Nominal pitch 1.5mm
Wire size range max. 0.13 – 0.35mm2
Primary and secondary locking capability
Designed for automotive applications
