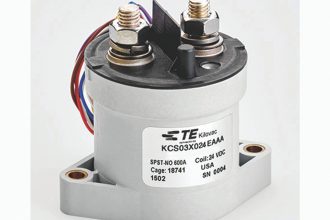

KILOVAC KCS03 Current-Sensing High-Voltage Contactor

TE Connectivity KCS03 contactor is extremely small and lightweight. Used in charging infrastructure applications, it features bidirectional switching and an integrated dual-coil electronic economizer with internal coil suppression, and can be mounted in any orientation. Main contacts are not polarity sensitive, and the KCS03 is EMC compliant with no radiated coil emissions.

Further information

KCS03 Part Number



Coil Voltage Part No
12 VDC KCS03X012EAAA
24 VDC KCS03X024EAAA
KILOVAC KCS03

Key benefits

  • Current-sensing

  • Trip Function

  • Bidirectional switching

  • Contact Arrangement: SPST-NO (Form X)

  • Current Rating, Continuous: ±600 A

  • Current Rating, Short Term: ±1200 A / 30 sec

  • Suitable for application in many harsh, explosive, and corrosive environments
