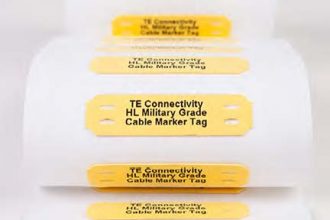

HL cable markers are designed to offer flexibility when it comes to wire and cable identification, in particularly aggressive environments. Typical installations include Mass Transit, Military, Aerospace and Industrial Applications. Applied using cable ties, HL Cable Markers give the ability to identify large diameter wire and cable, as well as post connector installation.

Document downloads

Further information

HL Part Number



Ordering
Description
Part Number Pack
Size
Colour Marker Width Marker Height Printable Area
(W x H)
pc mm Inches mm Inches mm Inches
HL104WE1TS025B EC7552-000 1000 White 45 1.8 10.4 0.400 25 x 10.4 1 x 0.4
HL104WE1TS033B EC7553-000 1000 White 52 2.1 10.4 0.400 33 x 10.4 1.3 x 0.4
HL104WE1TS038B EC7554-000 1000 White 58 2.3 10.4 0.400 38 x 10.4 1.5 x 0.4
HL104WE1TS050B EC7555-000 1000 White 70 2.75 10.4 0.400 50 x 10.4 2 x 0.4
HL104WE1TS070B EC7556-000 1000 White 90 3.5 10.4 0.400 70 x 10.4 2.75 x 0.4
HL150WE1TS033B EC7573-000 1000 White 52 2.1 15 0.600 33 x 15 1.3 x 0.6
HL150WE1TS050B EC7574-000 1000 White 70 2.75 15 0.600 50 x 15 2 x 0.6
HL150WE1TS070B CP1098-000 1000 White 90 3.5 15 0.600 70 x 15 2.75 x 0.6
HL203WE1TS025B EC7588-000 1000 White 45 1.8 20.3 0.800 38 x 20.3 1 x 0.8
HL203WE1TS033B EC7589-000 1000 White 52 2.1 20.3 0.800 33 x 20.3 1.3 x 0.8
HL203WE1TS038B EE0111-000 1000 White 58 2.3 20.3 0.800 38 x 20.3 1.5 x 0.8
HL203WE1TS050B EC7590-000 1000 White 70 2.75 20.3 0.800 50 x 20.3 2 x 0.8
HL203WE1TS070B EC7591-000 1000 White 90 3.5 20.3 0.800 70 x 20.3 2.75 x 0.8
HL253WE1TS025B EC7605-000 1000 White 45 1.8 25.3 1.000 25 x 25.3 1 x 1
HL253WE1TS033B EC7606-000 1000 White 52 2.1 25.3 1.000 33 x 25.3 1.3 x 1
HL253WE1TS038B EC7607-000 1000 White 58 2.3 25.3 1.000 38 x 25.3 1.5 x 1
HL253WE1TS050B EC7608-000 1000 White 70 2.75 25.3 1.000 50 x 25.3 2 x 1
HL253WE1TS070B EC7609-000 1000 White 90 3.5 25.3 1.000 70 x 25.3 2.75 x 1
HL Markers

Key benefits

  • Thermal transfer printable

  • Highly flame resistant (Excellent resistance to burning - Oxygen Index 35%)

  • Resistant to key industrial and military grade fluids

  • Recommended for use where de-termination of wires is not possible for large ID wires or wire bundles

  • Several printable widths and heights available

  • Non-standard colour options available
