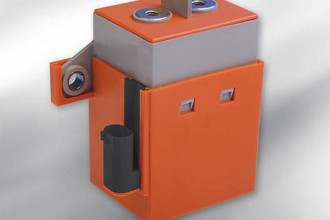

The EVC 250-800 contactor is specially designed with a rated load voltage of 800V. It features similar continuous carry and short circuit capability than the proven EVC 250 contactor, and is available with the same overall dimensions. The internal design, however, ensures creepage and clearance distances according to IEC 60664 up to 1000V. This feature makes the EVC 250-800 contactor ideally suited for commercial vehicles as well as passenger cars with elevated system voltages.
Safe contactors for brighter future mobility. The new EVC 250-800 contactor for hybrid and electric vehicles is designed specifically for commercial vehicles, trucks and buses.
| Product code | V23720-A0101-B001 | V23720-A0102-B001 | V23720-A0112-B001 |
| Cont. arrang. | SPDT-NO-DM | SPDT-NO-DM | SPDT-NO-DM |
| Coil | 12VDC | 12VDC | 24VDC |
| Circuit | No economizer | Coil switch | Coil switch |
| Coil suppr. | External >36V | Internal | Internal |
| Relay type | 800VDC | 800VDC | 800VDC |
| Resistance | 3.9Ω | Double coil 2.6/26Ω | Double coil 2.6/26Ω |
| Part number | 2-1904136-5 | 7-1904137-6 | 2-2317670-1 |
Compact high voltage main contactor
Voltage rating up to 800VDC
Continuous current up to 250A at 85°C
Short circuit carry currents up to 6kA
