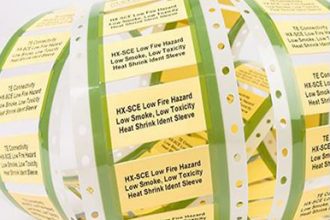

HX-SCE is a thin walled, zero-halogen, low smoke, low toxicity, radiation cross-linked, polyolefin heat-shrinkable tubing, assembled as cut sleeves organised in a ladder format. This product is ideal for applications where limited fire hazard characteristics are necessary. The zero-halogen material coupled with low smoke and low toxic fume emissions make this product best for use in enclosed spaces such as mass transit, marine and industrial applications where risk to human life is possible.
| Ordering Description |
Part Number | Pack Size |
Colour | Supplied dia (mm) |
Recovered dia (mm) |
Recommended Use Range (Min – Max) |
|||
| pc | mm | Inches | mm | Inches | mm | Inches | |||
| HX-SCE-1K-2.4-50-4 | FO2422-000 | 1000 | Yellow | 2.4 | 0.094 | 1.1 | 0.047 | 1.2-1.9 | 0.050-0.075 |
| HX-SCE-1K-2.4-50-S1-4 | E46987-000 | 1000 | Yellow | 2.4 | 0.094 | 1.1 | 0.047 | 1.2-1.9 | 0.050-0.075 |
| HX-SCE-1K-3.2-50-4 | F18659-000 | 1000 | Yellow | 3.2 | 0.126 | 1.5 | 0.06 | 1.7-2.6 | 0.069-0.105 |
| HX-SCE-1K-3.2-50-S1-4 | A19408-000 | 1000 | Yellow | 3.2 | 0.126 | 1.5 | 0.06 | 1.7-2.6 | 0.069-0.105 |
| HX-SCE-1K-4.8-50-4 | D87851-000 | 1000 | Yellow | 4.8 | 0.189 | 2.3 | 0.09 | 1.5-4.0 | 0.100-0.160 |
| HX-SCE-1K-4.8-50-S1-4 | E72748-000 | 1000 | Yellow | 4.8 | 0.189 | 2.3 | 0.09 | 1.5-4.0 | 0.100-0.160 |
| HX-SCE-1K-6.4-50-4 | E66448-000 | 1000 | Yellow | 6.4 | 0.25 | 3.1 | 0.125 | 3.8-5.4 | 0.150-0.215 |
| HX-SCE-1K-6.4-50-S1-4 | F26167-000 | 1000 | Yellow | 6.4 | 0.25 | 3.1 | 0.125 | 3.8-5.4 | 0.150-0.215 |
| HX-SCE-1K-9.5-50-4 | A95650-000 | 1000 | Yellow | 9.5 | 0.375 | 4.7 | 0.187 | 5.5-8.1 | 0.220-0.320 |
| HX-SCE-1K-9.5-50-S1-4 | C13218-000 | 1000 | Yellow | 9.5 | 0.375 | 4.7 | 0.187 | 5.5-8.1 | 0.220-0.320 |
| HX-SCE-1K-12.7-50-4 | D15532-000 | 1000 | Yellow | 12.7 | 0.5 | 6.3 | 0.25 | 6.9-10.7 | 0.260-0.449 |
| HX-SCE-1K-12.7-50-S1-4 | A18003-000 | 1000 | Yellow | 12.7 | 0.5 | 6.3 | 0.25 | 6.9-10.7 | 0.260-0.449 |
| HX-SCE-1K-19.0-50-4 | A69169-000 | 1000 | Yellow | 19 | 0.73 | 9.5 | 0.375 | 10.1-16.2 | 0.400-0.640 |
| HX-SCE-1K-19.0-50-S1-4 | F54891-000 | 1000 | Yellow | 19 | 0.73 | 9.5 | 0.375 | 10.1-16.2 | 0.400-0.640 |
| HX-SCE-25.4-50-4 | E64909-000 | 250 | Yellow | 25.4 | 1 | 12.7 | 0.5 | 14.2-21.5 | 0.563-0.850 |
| HX-SCE-25.4-50-S1-4 | C43908-000 | 250 | Yellow | 25.4 | 1 | 12.7 | 0.5 | 14.2-21.5 | 0.563-0.850 |
| HX-SCE-38.1-50-4 | E76198-000 | 250 | Yellow | 38.1 | 1.5 | 19 | 0.75 | 20.9-33.0 | 0.825-1.300 |
| HX-SCE-38.1-50-S1-4 | A55157-000 | 250 | Yellow | 38.1 | 1.5 | 19 | 0.75 | 20.9-33.0 | 0825-1.300 |
| HX-SCE-1K-2.4-50-9 | F29905-000 | 1000 | White | 2.4 | 0.094 | 1.1 | 0.047 | 1.2-1.9 | 0.050-0.075 |
| HX-SCE-1K-2.4-50-S1-9 | A75939-000 | 1000 | White | 2.4 | 0.094 | 1.1 | 0.047 | 1.2-1.9 | 0.050-0.075 |
| HX-SCE-1K-3.2-50-9 | E21108-000 | 1000 | White | 3.2 | 0.126 | 1.5 | 0.06 | 1.7-2.6 | 0.069-0.105 |
| HX-SCE-1K-3.2-50-S1-9 | A34057-000 | 1000 | White | 3.2 | 0.126 | 1.5 | 0.06 | 1.7-2.6 | 0.069-0.105 |
| HX-SCE-1K-4.8-50-9 | F77737-000 | 1000 | White | 4.8 | 0.189 | 2.3 | 0.09 | 1.5-4.0 | 0.100-0.160 |
| HX-SCE-1K-4.8-50-S1-9 | C04635-000 | 1000 | White | 4.8 | 0.189 | 2.3 | 0.09 | 1.5-4.0 | 0.100-0.160 |
| HX-SCE-1K-6.4-50-9 | D67949-000 | 1000 | White | 6.4 | 0.25 | 3.1 | 0.125 | 3.8-5.4 | 0.150-0.215 |
| HX-SCE-1K-6.4-50-S1-9 | C32003-000 | 1000 | White | 6.4 | 0.25 | 3.1 | 0.125 | 3.8-5.4 | 0.150-0.215 |
| HX-SCE-1K-9.5-50-9 | A98991-000 | 1000 | White | 9.5 | 0.375 | 4.7 | 0.187 | 5.5-8.1 | 0.220-0.320 |
| HX-SCE-1K-9.5-50-S1-9 | C44780-000 | 1000 | White | 9.5 | 0.375 | 4.7 | 0.187 | 5.5-8.1 | 0.220-0.320 |
| HX-SCE-1K-12.7-50-9 | A29688-000 | 1000 | White | 12.7 | 0.5 | 6.3 | 0.25 | 6.9-10.7 | 0.260-0.449 |
| HX-SCE-1K-12.7-50-S1-9 | E24938-000 | 1000 | White | 12.7 | 0.5 | 6.3 | 0.25 | 6.9-10.7 | 0.206-0.449 |
| HX-SCE-1K-19.0-50-9 | C97865-000 | 1000 | White | 19 | 0.73 | 9.5 | 0.375 | 10.1-16.2 | 0.400-0.640 |
| HX-SCE-1K-19.0-50-S1-9 | C09972-000 | 1000 | White | 19 | 0.73 | 9.5 | 0.375 | 10.1-16.2 | 0.400-0.640 |
| HX-SCE-25.4-50-9 | E58246-000 | 250 | White | 25.4 | 0.73 | 9.5 | 0.375 | 10.1-16.2 | 0.400-0.640 |
| HX-SCE-25.4-50-S1-9 | C78033-000 | 250 | White | 25.4 | 1 | 12.7 | 0.5 | 14.2-21.5 | 0.563-0.850 |
| HX-SCE-38.1-50-9 | F93526-000 | 250 | White | 38.1 | 1 | 19 | 0.75 | 20.9-33.0 | 0.825-1.300 |
| HX-SCE-38.1-50-S1-9 | E50792-000 | 250 | White | 38.1 | 1.5 | 19 | 0.75 | 20.9-33.0 | 0.825-1.300 |
Thermal transfer printable
Zero Halogen
Low Toxic Fumes
Low Smoke
Self-extinguishing, non-flame propagating
