HT-SCE wire markers are designed for use in high temperature applications or where extreme resistance to fuels, lubricants and cleaning solvents is required such as Aerospace, Military, Industrial and Semi-conductor applications. Ideal for applications where Low Vacuum Out-gassing is of high importance. HT-SCE are made of highly flame retardant, heatshrinkable fluoropolymer tubing.

Document downloads

Further information

HT-SCE Part Number



Ordering
Description
Part Number Pack
Size
Colour Supplied
dia (mm)
Recovered
dia (mm)
Recommended Use
Range (Min – Max)
pc mm Inches mm Inches mm Inches
HT-SCE-3/32-2.0-0 236090001 250 Black 2.4 0.093 0.7 0.031 0.8-1.9 0.032-0.075
HT-SCE-3/32-2.0-S1-0 8846850001 250 Black 2.4 0.093 0.7 0.031 0.8-1.9 0.032-0.075
HT-SCE-1/8-2.0-0 9352370001 250 Black 3.2 0.125 1.5 0.062 1.7-2.6 0.069-0.105
HT-SCE-1/8-2.0-S1-0 4684370001 250 Black 3.2 0.125 1.5 0.062 1.7-2.6 0.069-0.105
HT-SCE-3/16-2.0-0 620070001 250 Black 4.8 0.187 2.3 0.093 2.5-4.0 0.100-0.160
HT-SCE-3/16-2.0-S1-0 4368030001 250 Black 4.8 0.187 2.3 0.093 2.5-4.0 0.100-0.160
HT-SCE-1/4-2.0-0 6355850001 250 Black 6.4 0.25 3.1 0.125 3.4-6.0 0.134-0.236
HT-SCE-1/4-2.0-S1-0 9166110001 250 Black 6.4 0.25 3.1 0.125 3.4-6.0 0.134-0.236
HT-SCE-3/8-2.0-0 4733050001 250 Black 9.5 0.375 4.7 0.187 5.3-8.1 0.209-0.319
HT-SCE-3/8-2.0-S1-0 2197750001 250 Black 9.5 0.375 4.7 0.187 5.3-8.1 0.209-0.319
HT-SCE-1/2-2.0-0 9337110001 250 Black 12.7 0.5 6.3 0.25 6.6-11.4 0.260-0.449
HT-SCE-1/2-2.0-S1-0 618750001 250 Black 12.7 0.5 6.3 0.25 6.6-11.4 0.260-0.449
HT-SCE-3/4-2.0-0 1827990001 250 Black 18 0.709 9 0.354 9.9-15.3 0.390-0.602
HT-SCE-3/4-2.0-S1-0 C79011-000 250 Black 18 0.709 9 0.354 9.9-15.3 0.390-0.602
HT-SCE-1-2.0-0 2398990001 250 Black 25.4 1 12.7 0.5 13.3-23.0 0.524-0.906
HT-SCE-1-2.0-S1-0 EJ2461-000 250 Black 25.4 1 12.7 0.5 13.3-23.0 0.524-0.906
HT-SCE-1-1/2-2.0-0 5299850001 250 Black 38.1 1.5 19 0.75 20.9-34.0 0.825-1.339
HT-SCE-1-1/2-2.0-S1-0 EJ2462-000 250 Black 38.1 1.5 19 0.75 20.9-34.0 0.825-1.339
HT-SCE-3/32-2.0-9 5476270001 250 White 2.4 0.093 0.7 0.031 0.8-1.9 0.032-0.075
HT-SCE-3/32-2.0-S1-9 2355930001 250 White 2.4 0.093 0.7 0.031 0.8-1.9 0.032-0.075
HT-SCE-1/8-2.0-9 4108170001 250 White 3.2 0.125 1.5 0.062 1.7-2.6 0.069-0.105
HT-SCE-1/8-2.0-S1-9 8880530001 250 White 3.2 0.125 1.5 0.062 1.7-2.6 0.069-0.105
HT-SCE-3/16-2.0-9 3206430001 250 White 4.8 0.187 2.3 0.093 2.5-4.0 0.100-0.160
HT-SCE-3/16-2.0-9 3554750001 250 White 4.8 0.187 2.3 0.093 2.5-4.0 0.100-0.160
HT-SCE-1/4-2.0-9 8306110001 250 White 6.4 0.25 3.1 0.125 3.4-6.0 0.134-0.236
HT-SCE-1/4-2.0-S1-9 1400610001 250 White 6.4 0.25 3.1 0.125 3.4-6.0 0.134-0.236
HT-SCE-3/8-2.0-9 8716810001 250 White 9.5 0.375 4.7 0.187 5.3-8.1 0.209-0.319
HT-SCE-3/8-2.0-S1-9 6195170001 250 White 9.5 0.375 4.7 0.187 5.3-8.1 0.209-0.319
HT-SCE-1/2-2.0-9 4117110001 250 White 12.7 0.5 6.3 0.25 6.6-11.4 0.260-0.449
HT-SCE-1/2-2.0-S1-9 2773310001 250 White 12.7 0.5 6.3 0.25 6.6-11.4 0.260-0.449
HT-SCE-3/4-2.0-9 9410990001 250 White 18 0.709 9 0.354 9.9-15.3 0.390-0.602
HT-SCE-3/4-2.0-S1-9 1878455-1 250 White 18 0.709 9 0.354 9.9-15.3 0390-0.602
HT-SCE-1-2.0-9 8947570001 250 White 25.4 1 12.7 0.5 13.3-23.0 0.524-0.906
HT-SCE-1-2.0-S1-9 A41813-000 250 White 25.4 1 12.7 0.5 13.3-23.0 0.524-0.906
HT-SCE-1-1/2-2.0-9 8420630001 250 White 38.1 1.5 19 0.75 20.9-34.0 0.825-1.339
HT-SCE-1-1/2-2.0-S1-9 082955-000 250 White 38.1 1.5 19 0.75 20.9-34.0 0.825-1.339

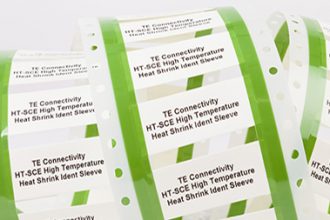

HT-SCE Wire Markers

Key benefits

  • Thermal transfer printable

  • Permanent identification sleeves

  • High continuous operating temperature

  • Extreme fluid resistance

  • Low Vacuum Out-gassing

  • 2:1 shrink ratio
