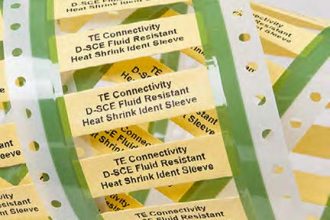

D-SCE markers are used to identify wires and cables where exposure to organic fluids, especially oils, is required. D-SCE markers are designed to operate in elevated temperatures for extended periods of time, making them ideal in Aerospace, Rail and Marine industries.

Document downloads

Further information

D-SCE Part Number



Ordering
Description
Part Number Pack
Size
Colour Supplied
dia (mm)
Recovered
dia (mm)
Recommended Use
Range (Min – Max)
pc mm Inches mm Inches mm Inches
D-SCE-1K-2.4-50-4 147547-000 1000 Yellow 2.4 0.094 0.7 0.031 0.8-1.9 0.032-0.075
D-SCE-1K-2.4-50-S1-4 650913000 1000 Yellow 2.4 0.094 0.7 0.031 0.8-1.9 0.032-0.075
D-SCE-1K-3.2-50-4 5266190001 1000 Yellow 3.2 0.125 1 0.043 1.1-2.6 0.044-0.105
D-SCE-1K-3.2-50-S1-4 1056030001 1000 Yellow 3.2 0.125 1 0.043 1.1-2.6 0.044-0.105
D-SCE-1K-4.8-50-4 3490750001 1000 Yellow 4.8 0.187 1.5 0.063 1.7-4.0 0.069-0.160
D-SCE-1K-4.8-50-S1-4 6310810001 1000 Yellow 4.8 0.187 1.5 0.063 1.7-4.0 0.069-0.160
D-SCE-1K-6.4-50-4 5572350001 1000 Yellow 6.4 0.25 2.1 0.084 2.3-5.4 0.091-0.215
D-SCE-1K-6.4-50-S1-4 9791650001 1000 Yellow 6.4 0.25 2.1 0.084 2.3-5.4 0.091-0.215
D-SCE-1K-9.5-50-S1-4 919385-000 1000 Yellow 9.5 0.375 3.1 0.125 3.4-8.1 0.137-0.320
D-SCE-1K-9.5-50-S1-4 3340610001 1000 Yellow 9.5 0.375 3.1 0.125 3.4-8.1 0.137-0.320
D-SCE-1K-12-50-4 372389-000 1000 Yellow 12.7 0.5 4.2 0.167 4.6-10.7 0.183-0.425
D-SCE-1K-12-50-S1-4 646331-000 1000 Yellow 12.7 0.5 4.2 0.167 4.6-10.7 0.183-0.425
D-SCE-1K-18-50-4 762261-000 1000 Yellow 19 0.75 6.3 0.25 6.9-16.2 0.275-0.640
D-SCE-1K-18-50-S1-4 7827770001 1000 Yellow 19 0.75 6.3 0.25 6.9-16.2 0.275-0.640
D-SCE-1K-25-50-4 872083-000 1000 Yellow 25.4 1 8.4 0.333 9.2-21.5 0.366-0.850
D-SCE-1K-25-50-S1-4 9809850001 1000 Yellow 25.4 1 8.4 0.333 9.2-21.5 0.366-0.850
D-SCE-1K-38-50-4 949459-000 1000 Yellow 38.1 1.5 19 0.75 20.9-33.0 0.825-1.300
D-SCE-1K-38-50-S1-4 129501-000 1000 Yellow 38.1 1.5 19 0.75 20.9-33.0 0.825-1.300
D-SCE-1K-2.4-50-9 F21848-000 1000 White 2.4 0.094 0.7 0.031 0.8-1.9 0.032-0.075
D-SCE-1K-2.4-50-S1-9 F53327-000 1000 White 2.4 0.094 0.7 0.031 0.8-1.9 0.032-0.075
D-SCE-1K-3.2-50-9 A36937-000 1000 White 3.2 0.125 1 0.043 1.1-2.6 0.044-0.105
D-SCE-1K-3.2-50-S1-9 A35215-000 1000 White 3.2 0.125 1 0.043 1.1-2.6 0.044-0.105
D-SCE-1K-4.8-50-9 132365-000 1000 White 4.8 0.187 1.5 0.063 1.7-4.0 0.069-0.160
D-SCE-1K-4.8-50-S1-9 E62181-000 1000 White 4.8 0.187 1.5 0.063 1.7-4.0 0.069-0.160
D-SCE-1K-6.4-50-9 F94420-000 1000 White 6.4 0.25 2.1 0.084 2.3-5.4 0.091-0.215
D-SCE-1K-6.4-50-S1-9 707112-000 1000 White 6.4 0.25 2.1 0.084 2.3-5.4 0.091-0.215
D-SCE-1K-9.5-50-S1-9 663453-000 1000 White 9.5 0.375 3.1 0.125 3.4-8.1 0.137-0.320
D-SCE-1K-9.5-50-S1-9 412575-000 1000 White 9.5 0.375 3.1 0.125 3.4-8.1 0.137-0.320
D-SCE-1K-12-50-9 317639-000 1000 White 12.7 0.5 4.2 0.167 4.6-10.7 0.183-0.425
D-SCE-1K-12-50-S1-9 405309-000 1000 White 12.7 0.5 4.2 0.167 4.6-10.7 0.183-0.425
D-SCE-1K-18-50-9 105715-000 1000 White 19 0.75 6.3 0.25 6.9-16.2 0.275-0.640
D-SCE-1K-18-50-S1-9 740569-000 1000 White 19 0.75 6.3 0.25 6.9-16.2 0.275-0.640
D-SCE-1K-25-50-9 449993-000 1000 White 25.4 1 8.4 0.333 9.2-21.5 0.366-0.850
D-SCE-1K-25-50-S1-9 816090-000 1000 White 25.4 1 8.4 0.333 9.2-21.5 0.366-0.850
D-SCE-1K-38-50-9 475683-000 1000 White 38.1 1.5 19 0.75 20.9-33.0 0.825-1.300
D-SCE-1K-38-50-S1-9 E52724-000 1000 White 38.1 1.5 19 0.75 20.9-33.0 0.825-1.300
D-SCE

Key benefits

  • Thermal transfer printable

  • Resistance to diesel, organic fluids, common fuels, lubricants and solvents

  • Supplied with side scoring

  • 3:1 shrink ratio
