CIRP Connector

This circular connector family provides flexible arrangements and a rugged mechanical performance. The CIRP provides a modular solution to many applications. This IP67 rated connector (when mated) can withstand up to 2800 V/46 A, is space efficient and requires no filler plugs.

Further information

    CIRP series further information

    Connector for Industrial Range (CIR), circular reverse bayonet Lock connector range for signal and power, derived from MIL-C-5015 and VG95234. The range includes 8 shell sizes (18 to 40), 9 contact arrangements (7 to 60 ways) with contact sizes 16, 12 and 8 AWG. Compatible with other 5015 reverse bayonet lock types.



    Applications

    Rolling Stock
    Design, development and supply of interconnection solutions direct to major OEM partners

    Equipment (Sub Systems)
    Comprehensive product portfolio for all electrical interfaces on all rail vehicles

    Infrastructure & signalling
    Trackside and signalling cables and connectors

    Maintenance, Repair & Overhaul (MRO)
    Innovative product solutions for upgrades and vehicle overhaul programmes, giving support to the vehicle life cycle

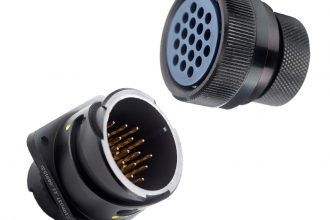

CIRP Connectors

Key benefits

  • Easy coupling, low friction roller pins on plug, reducing wear and easing connector mating (8Nm maximum coupling torque)

  • Stainless steel wear pins in receptacle shell for positive, repeatable locations

  • Mated connector seals to IP67, includes innovative environment sealing of grommet entry

  • Approved NFF16-101 Halogen free materials
