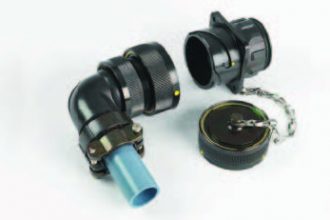

The CIRH connector family with a halogen free rubber insert for power and signal connections providing flexible arrangements. This circular connector family, provides flexible arrangements and rugged mechanical performances and provides a modular solution to many applications. This IP67 rated connection (when mated) withstands up to 3500 V/135 A. CIRH is efficient with space and has a rapid connection and disconnection.
The Connectors for Industrial Range (CIR) (H – halogen free) is based on the products covered by the American MilC-5015 and the German VG95234 specifications. These connectors are used extensively throughout the mass transportation, entertainment and general industrial markets. CIRH connectors feature stainless steel pins at critical wear points of the cam tracks of all receptacle shells, to protect from wear inflicted by continuous mating/de-mating and vibration.
Rated Current : up to 135 A
Service Voltage : up to 1750V DC/AC Peak / Withstand Voltage : 3500V
1 to 86 contact arrangements
3 Pin Bayonet Coupling with steel wear pins for 2000+ cycles
