Din rail and screw base mounting as standard the KVKE 20-32A, are suitable for 250mm deep panel boards. Whilst compact in size the modular structure of the KVKE 63-160A allows the position of the drive mechanism to be varied.
Black or Yellow/Red handle (add Y/R to description)
Auxiliary contacts are easy to install
Modular structure enables position of drive mechanism to be varied
Fuse covers included:
63-160 A includes handle LK12 and shaft L=220
200-630 A includes handle LK14 and shaft LVK=228
| Type | AC-21 | 400 V | AC-22 | 400 V | AC-23 | EAN-Code | |
| 415 V | 415 V | 400 V | |||||
| 690 V | 690 V | 415 V | |||||
| Model | Ie / A | Ie / A | Ie / A | ||||
| DIN FUSE VERSION | |||||||
| 3-pole | |||||||
| KVKE 320 | 20 A | 20 A | 20 A | 10 kW | 6419410289006 | ||
| KVKE 332 | 32 A | 32 A | 32 A | 15 kW | 6419410289013 | ||
| 4-pole | |||||||
| KVKE 420 | 20 A | 20 A | 20 A | 10 kW | 6419410289020 | ||
| KVKE 432 | 32 A | 32 A | 32 A | 15 kW | 6419410289037 | ||
| BS FUSE VERSION | |||||||
| 3-pole | |||||||
| KVKE 320 BS | 20 A | 20 A | 20 A | 10 kW | 6419410285220 | ||
| KVKE 332 BS | 32 A | 32 A | 32 A | 15 kW | 6419410285244 | ||
| 4-pole | |||||||
| KVKE 420 BS | 20 A | 20 A | 20 A | 10 kW | 6419410285237 | ||
| KVKE 432 BS | 32 A | 32 A | 32 A | 15 kW | 6419410285251 | ||
| Type | AC-21 | 400 V | AC-22 | 400 V | AC-23 | AC-23 | EAN-Code | ||
| 415 V | 415 V | 400 V | 690 V | ||||||
| 690 V | 690 V | 415 V | |||||||
| Model | Ie / A | Ie / A | Ie / A | Ie / A | |||||
| DIN FUSE VERSION | |||||||||
| 3-pole | |||||||||
| KVKE 363 | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410286029 | ||
| KVKE 380 | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 kW | 6419410286043 | ||
| KVKE 3100 | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410286067 | ||
| KVKE 3125 | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410286081 | ||
| KVKE 3160 | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410286104 | ||
| KVKE 363 NT | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410285640 | ||
| KVKE 380 NT | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 kW | 6419410284377 | ||
| KVKE 3100 NT | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410284384 | ||
| KVKE 3125 NT | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285657 | ||
| KVKE 3160 NT | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285664 | ||
| KVKE 363 NL | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410285749 | ||
| KVKE 380 NL | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 kW | 6419410284452 | ||
| KVKE 3100 NL | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410284469 | ||
| KVKE 3125 NL | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285756 | ||
| KVKE 3160 NL | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285763 | ||
| 4-pole | |||||||||
| KVKE 463 | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410286128 | ||
| KVKE 480 | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 kW | 6419410286142 | ||
| KVKE 4110 | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410286166 | ||
| KVKE 4125 | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410286180 | ||
| KVKE 4160 | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410286203 | ||
| KVKE 463 F | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410285541 | ||
| KVKE 480 F | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 kW | 6419410284292 | ||
| KVKE 4110 F | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410284308 | ||
| KVKE 4125 F | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285558 | ||
| KVKE 4160 F | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285565 | ||
| BS FUSE VERSION | |||||||||
| 3-pole | |||||||||
| KVKE 363 BS | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410286227 | ||
| KVKE 380 BS | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 kW | 6419410286241 | ||
| KVKE 3100 BS | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410286265 | ||

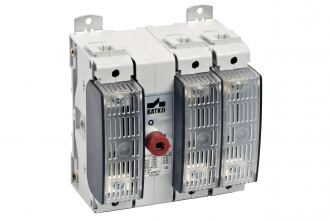

| KVKE 3125 BS | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410286289 | ||
| KVKE 3160 BS | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285312 | ||
| KVKE 363 NT BS | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410285695 | ||
| KVKE 380 NT BS | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 kW | 6419410284414 | ||
| KVKE 3100 NT BS | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410284421 | ||
| KVKE 3125 NT BS | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285701 | ||
| KVKE 3160 NT BS | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285718 | ||
| KVKE 363 NL BS | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410285794 | ||
| KVKE 380 NL BS | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 kW | 6419410284490 | ||
| KVKE 3100 NL BS | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410284506 | ||
| KVKE 3125 NL BS | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285800 | ||
| KVKE 3160 NL BS | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285817 | ||
| 4-pole | |||||||||
| KVKE 463 BS | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410286302 | ||
| KVKE 480 BS | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 kW | 6419410286326 | ||
| KVKE 4100 BS | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410286340 | ||
| KVKE 4125 BS | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410286364 | ||
| KVKE 4160 BS | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285350 | ||
| KVKE 463 F BS | 63 A | 63 A | 63 A | 30 kW | 63 A | 55 kW | 6419410285596 | ||
| KVKE 480 F BS | 80 A | 80 A | 80 A | 45 kW | 80 A | 75 kW | 6419410284339 | ||
| KVKE 4100 F BS | 100 A | 100 A | 100 A | 55 kW | 100 A | 90 kW | 6419410284346 | ||
| KVKE 4125 F BS | 125 A | 125 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285602 | ||
| KVKE 4160 F BS | 160 A | 160 A | 125 A | 55 kW | 125 A | 110 kW | 6419410285619 | ||
KVKE 20-32 A
10x38 & BS A1 fuse versions
DIN rail and screw base mounting as standard
Available as 3-pole and 4-pole version, 1-pole and 2-pole versions on request
Handle LK10 and shaft L=180 mm included
KVKE 63-160 A
DIN & BS fuse versions
Four breaking points per phase
Available as 1-,2-,3- and 4-pole (200-630 A also 6-pole)
Connecting silver rivets have a silver alloy 350 um thick, thus ensuring a long life expectancy and safe use in demanding conditions
Compact size saves space
