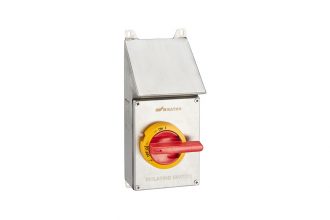

Katko's new IP69K stainless steel enclosed safety switch isolators are now available with a rainhood protection. Contact dalroad today for a quote on the range on 01582 505 252 or email sales@dalroad.com.
|
Type |
AC-22 |
400 V |
AC-23 |
AC-23 |
690 V |
EAN code |
Enclosure |
|||
| 415 V | 400 V | |||||||||
| 690 V | 415 V | |||||||||
| Black | Yellow/Red | Ie / A | Ie / A | P / kW | Ie / A | P / kW | Black | Yellow/Red | ||
| KER 316S IP69K | KER 316S IP69K Y/R | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410349724 | 6419410349861 | H24T | |
| KER 325S IP69K | KER 325S IP69K Y/R | 25 A | 25 A | 11 kW | 25 A | 22 kW | 6419410349731 | 6419410349878 | H24T | |
| KER 340S IP69K | KER 340S IP69K Y/R | 40 A | 40 A | 22 kW | 32 A | 30 kW | 6419410349748 | 6419410349885 | H24T | |
| KER 363S IP69K | KER 363S IP69K Y/R | 63 A | 40 A | 22 kW | 40 A | 37 kW | 6419410349755 | 6419410349892 | H34T | |
| KER 380S IP69K | KER 380S IP69K Y/R | 80 A | 63 A | 30 kW | 40 A | 37 kW | 6419410349762 | 6419410349908 | H34T | |
| KER 3100S IP69K | KER 3100S IP69K Y/R | 100 A | 80 A | 45 kW | 63 A | 55 kW | 6419410349779 | 6419410349915 | H34T | |
| KER 3125S IP69K | KER 3125S IP69K Y/R | 125 A | 125 A | 55 kW | 80 A | 75 kW | 6419410349786 | 6419410349922 | H34T | |
| KER 416S IP69K | KER 416S IP69K Y/R | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410349793 | 6419410349939 | H24T | |
| KER 425S IP69K | KER 425S IP69K Y/R | 25 A | 25 A | 11 kW | 25 A | 22 kW | 6419410349809 | 6419410349946 | H24T | |
| KER 440S IP69K | KER 440S IP69K Y/R | 40 A | 40 A | 22 kW | 32 A | 30 kW | 6419410349816 | 6419410349953 | H24T | |
| KER 463S IP69K | KER 463S IP69K Y/R | 63 A | 40 A | 22 kW | 40 A | 37 kW | 6419410349823 | 6419410349960 | H34T | |
| KER 480S IP69K | KER 480S IP69K Y/R | 80 A | 63 A | 30 kW | 40 A | 37 kW | 6419410349830 | 6419410349977 | H34T | |
| KER 4100S IP69K | KER 4100S IP69K Y/R | 100 A | 80 A | 45 kW | 63 A | 55 kW | 6419410349847 | 6419410349984 | H34T | |
| KER 4125S IP69K | KER 4125S IP69K Y/R | 125 A | 125 A | 55 kW | 80 A | 75 kW | 6419410349854 | 6419410349991 | H34T | |
IP69K rating
LK11 handle (Black or yellow/red)
Sloped roof for extra protection
Where hygiene and good protection against corrosion are required
Padlockable
Door interlock with defeat mechanism
