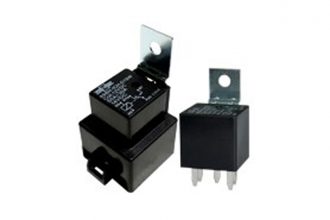

Song Chuan series no. 898 is available with plain cover, flanged cover, bracketed cover, skirted cover and weatherproof covers. The operating ambient temperature ranges from -40°C to 125°C and complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC.
Document downloads
Further information
Series No. 898 Part Number
| Terminal style | Contact form | Enclosure style | ||
| Dust cover | Flux tight | Sealed type washable |
||
| Socket terminal | 1A (SPNO) | 898-1AH-D | 898-1AH-C | 898-1AH-S |
| 898H-1AH-D | 898H-1AH-C | 898H-1AH-S | ||
| 1C (SPDT) | 898-1CH-D | 898-1CH-C | 898-1CH-S | |
| 898H-1CH-D | 898H-1CH-C | 898H-1CH-S | ||
| Terminal style | Contact form | Enclosure style | |
| Flanged cover ( dust cover) |
Flanged cover (flux tight) |
||
| Socket terminal | 1A (SPNO) | 898-1AH-D1 | 898-1AH-C1 |
| 898H-1AH-D1 | 898H-1AH-C1 | ||
| 1C (SPDT) | 898-1CH-D1 | 898-1CH-C1 | |
| 898H-1CH-D1 | 898H-1CH-C1 | ||
| Terminal style | Contact form | Enclosure style | |
| Dust cover with steel bracket |
Flux tight with steel bracket |
||
| Socket terminal | 1A (SPNO) | 898-1AH-D1S | 898-1AH-C1S |
| 898H-1AH-D1S | 898H-1AH-C1S | ||
| 1C (SPDT) | 898-1CH-D1S | 898-1CH-C1S | |
| 898H-1CH-D1S | 898H-1CH-C1S | ||
| Terminal style | Contact form | Designation (provided with) |
Enclosure style | |
| Dust cover with shroud and steel bracket |
Dust cover with weather proof and steel bracket |
|||
| Socket terminal | 1A (SPNO) | Resistor | 898H-1CH-D1SF-R1 | 898H-1CH-D1SW-R1 |
Key benefits
-
Mini 280 automotive relay
-
SPNC, SPNO, SPDT contact configurations
-
NO contacts switch 50A resistive load, NC contacts switch 30A resistive load, 100,000 ops., 23°C
-
Available with plain cover, flanged cover, bracketed cover, skirted cover, and weather proof cover
-
Optional resistor or diode for coil transient suppression
