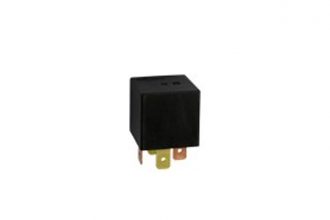

Song Chuan Series 897 relays are available with PCB terminals or quick connect terminals with an optional resistor or diode for coil transient suppression. For further information on the range contact our sales team at sales@dalroad.com.
| Terminal style | Contact form | Designation (provided with) |
Enclosure style | ||
| Dust cover | Flux tight | Sealed type washable |
|||
| Socket terminal | 1A (SPNO) | – | 897-1AH-D | 897-1AH-C | 897-1AH-S |
| Resistor | 897-1AH-D-R1 | 897-1AH-C-R1 | 897-1AH-S-R1 | ||
| PCB terminal (1) | 1C (SPDT) | – | 897P-1AH-D | 897P-1AH-C | 897P-1AH-S |
| Resistor | 897P-1AH-D-R1 | 897P-1AH-C-R1 | 897P-1AH-S-R1 | ||
| Terminal style | Contact form | Designation (provided with) |
Enclosure style | |
| Flanged cover ( dust cover) |
Flanged cover (flux tight) |
|||
| Socket terminal | 1A (SPNO) | – | 897-1AH-D1 | 897-1AH-C1 |
| Resistor | 897-1AH-D1-R1 | 897-1AH-C1-R1 | ||
| Terminal style | Contact form | Designation (provided with) |
Enclosure style | |
| Dust cover with steel bracket |
Flux tight with steel bracket |
|||
| Socket terminal | 1A (SPNO) | – | 897-1AH-D1S | 897-1AH-C1S |
| Resistor | 897-1AH-D1S-R1 | 897-1AH-C1S-R1 | ||
| Terminal style | Contact form | Designation (provided with) |
Enclosure style | |
| Dust cover with shroud and steel bracket |
Dust cover with weather proof and steel bracket |
|||
| Socket terminal | 1A (SPNO) | Resistor | 897-1AH-D1SF-R1 | 897-1AH-D1SW-R1 |
High Power Mini ISO automotive relay
Switches up to 70A resistive load, 100,000 ops., 23°C
Operating ambient temperature -40°C to 125°C
Available with a plain cover, flanged cover, bracketed cover, skirted cover or weatherproof cover
Complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC
