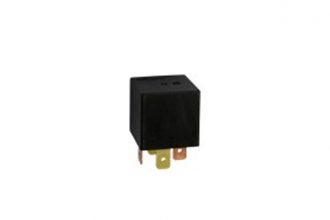

Dalroad supplies Song Chuan Series 896 Automotive Relays with PCB or quick connect terminals. The plain cover, flanged cover, bracketed cover, skirted cover, and weather proof cover are all available to purchase today. Get a quote on the range at [email protected].
Document downloads
Further information
Series No. 896 Part Number
| Terminal style | Contact form | Enclosure style | ||
| Dust cover | Flux tight | Sealed type washable |
||
| Socket terminal | 1A (SPNO) | 896-1AH-D | 896-1AH-C | 896-1AH-S |
| 896H-1AH-D | 896H-1AH-C | 896H-1AH-S | ||
| 1C (SPDT) | 896-1CH-D | 896-1CH-C | 896-1CH-S | |
| 896H-1CH-D | 896H-1CH-C | 896H-1CH-S | ||
| 2A (DPNO) | 896-2AH-D | 896-2AH-C | 896-2AH-S | |
| 896H-2AH-D | 896H-2AH-C | 896H-2AH-S | ||
| 1A (SPNO) | 896P-1AH-D | 896P-1AH-C | 896P-1AH-S | |
| 896HP-1AH-D | 896HP-1AH-C | 896HP-1AH-S | ||
| 1C (SPDT) | 896P-1CH-D | 896P-1CH-C | 896P-1CH-S | |
| 896HP-1CH-D | 896HP-1CH-C | 896HP-1CH-S | ||
| 2A (DPNO) | 896P-2AH-D | 896P-2AH-C | 896P-2AH-S | |
| 896HP-2AH-D | 896HP-2AH-C | 896HP-2AH-S | ||
| Terminal style | Contact form | Enclosure style | |
| Flanged cover ( dust cover) |
Flanged cover (flux tight) |
||
| Socket terminal | 1A (SPNO) | 896-1AH-D1 | 896-1AH-C1 |
| 896H-1AH-D1 | 896H-1AH-C1 | ||
| 1C (SPDT) | 896-1CH-D1 | 896-1CH-C1 | |
| 896H-1CH-D1 | 896H-1CH-C1 | ||
| 2A (DPNO) | 896-2AH-D1 | 896-2AH-C1 | |
| 896H-2AH-D1 | 896H-2AH-C1 | ||
| Terminal style | Contact form | Enclosure style | |
| Dust cover with steel bracket |
Flux tight with steel bracket |
||
| Socket terminal | 1A (SPNO) | 896-1AH-D1S | 896-1AH-C1S |
| 896H-1AH-D1S | 896H-1AH-C1S | ||
| 1C (SPDT) | 896-1CH-D1S | 896-1CH-C1S | |
| 896H-1CH-D1S | 896H-1CH-C1S | ||
| 2A (DPNO) | 896-2AH-D1S | 896-2AH-C1S | |
| 896H-2AH-D1S | 896H-2AH-C1S | ||
| Terminal style | Contact form | Designation (provided with) |
Enclosure style | |
| Dust cover with shroud and steel bracket |
Dust cover with weather proof and steel bracket |
|||
| Socket terminal | 1C (SPDT) | Resistor | 896H-1CH-D1SF-R1 | 896H-1CH-D1SW-R1 |
Key benefits
-
Mini ISO automotive relay
-
SPNC, SPNO, SPDT, DPNO contact configurations
-
NO contacts switch 50A resistive load, NC contacts switch 30A resistive load, 100,000 ops., 23°C
-
Operating ambient temperature -40°C to 125°C
-
Available with a plain cover, flanged cover, bracketed cover, skirted cover or weatherproof cover
-
Available with PCB terminals or quick connect terminal
-
Optional resistor or diode for coil transient suppression
-
Complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC
