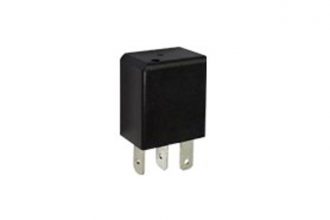

Song Chuan Series No.871A micro ISO Automotive Relay switches up to 35A resistive load at 23°C and complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC.
| Terminal style | Contact form | Designation (provided with) |
Enclosure style | |
| Dust cover | Flux tight | |||
| Socket terminal | 1A (SPNO) | – | 871A-1A-D | 871A-1A-C |
| Resistor | 871A-1A-D-R1 | 871A-1A-C-R1 | ||
| Diode | 871A-1A-D-D1 | 871A-1A-C-D1 | ||
Micro ISO automotive relay
NO contacts switch 35A resistive load at 23°C, 20A resistive load at -40~+105°C, 100,000 ops
SPNO / 3 Terminals relay of cost saving version
Operating ambient temperature -40°C to 125°C
RoHS Compliant ; ELV Compliant
