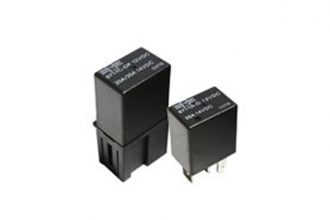

Song Chuan Series No. 871 automotive relay is available with plain cover and skirted cover. The operating ambient temperature is from -40°C to 125°C and complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC.
| Terminal style | Contact form | Designation (provided with) | Enclosure style | |||
| Dust cover | Dust cover /Fixed Base | Flux tight | Sealed type washable | |||
| Socket terminal | 1A (SPNO) | – | 871-1A-D | 871-1A-DF | 871-1A-C | 871-1A-S |
| Resistor | 871-1A-D-R1 | 871-1A-DF-R1 | 871-1A-C-R1 | 871-1A-S-R1 | ||
| Diode | 871-1A-D-D1 | 871-1A-DF-R1 | 871-1A-C-D1 | 871-1A-S-D1 | ||
| 1C (SPDT) | – | 871-1C-D | 871-1C-DF | 871-1C-C | 871-1C-S | |
| Resistor | 871-1C-D-R1 | 871-1C-DF-R1 | 871-1C-C-R1 | 871-1C-S-R1 | ||
| Diode | 871-1C-D-D1 | 871-1C-DF-D1 | 871-1C-C-D1 | 871-1C-S-D1 | ||
SPNO & SPDT contact configurations
100,000 ops
Operating ambient temperature -40°C to 125°C
Available with plain cover and skirted cover
Optional resistor or diode for coil transient suppression
RoHS Compliant ; ELV Compliant
