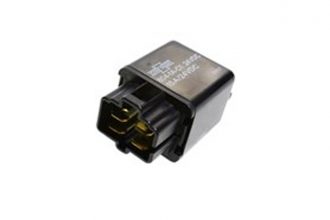

Song Chuan Series No. 804 automotive relay is specially designed Japenese car models and is used in air conditioning control, halogen head lamp control, horn control, fog lamp control applications.
| Terminal style | Contact form | Coil parallel with | Designation (provided with) | ||
| Dust cover | Sealed type | Mounting ears | |||
| Socket terminal | 1A (SPNO) | Blank | 804-1A-C | 804-1A-S | 804-1A-C1 |
| Resistor | 804-1A-C-R1 | 804-1A-S-R1 | 804-1A-C1-R1 | ||
| Resistor | 804-1A-C-R2 | 804-1A-S-R2 | 804-1A-C1-R2 | ||
Optional to be equipped with diode or resistor
Plain cover or flange cover version both available
Complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC
