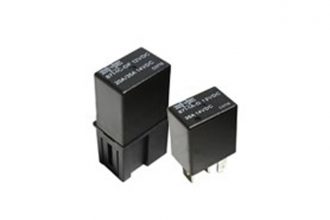

Song Chuan Series No. 611/871E high current micro ISO Automotive Relay switches up to 35A resistive load and complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC.
| Terminal style | Contact form | Designation (provided with) |
Enclosure style | ||
| Dust cover | Flux tight | Sealed type washable |
|||
| Socket terminal | 1A (SPNO) | – | 611-1AH-D | 611-1AH-C | 611-1AH-S |
| Resistor | 611-1AH-D-R1 | 611-1AH-C-R1 | 611-1AH-S-R1 | ||
| Diode | 611-1AH-D-D1 | 611-1AH-C-D1 | 611-1AH-S-D1 | ||
| Terminal style | Contact form | Designation (provided with) |
Enclosure style | ||
| Dust cover | Flux tight | Sealed type washable |
|||
| Socket terminal | 1A (SPNO) | – | 871E-1A-D | 871E-1A-C | 871E-1A-S |
| Resistor | 871E-1A-D-R1 | 871E-1A-C-R1 | 871E-1A-S-R1 | ||
| Diode | 871E-1A-D-D1 | 871E-1A-C-D1 | 871E-1A-S-D1 | ||
SPNO contact configuration
100'000 operations
Dust cover, flux-free type and sealed type are available
Optional resistor or diode for coil transient suppression
