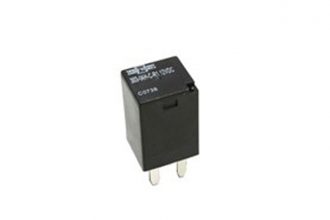

Song Chuan Series No. 303 ultra micro automotive relay complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC.
| Terminal style | Contact form | Designation (provided with) |
Enclosure style | |
| Flux tight | Sealed type washable | |||
| Socket terminal | 1A (SPNO) | – | 303-1AH-C | 303-1AH-S |
| Resistor | 303-1AH-C-R1 | 303-1AH-S-R1 | ||
| Diode | 303-1AH-C-D1 | 303-1AH-S-D1 |
Ultra Micro 280 automotive relay
SPNO contact configuration
Switch up to 20A resistive load, 100,000 ops., 23°C
Operating ambient temperature -40°C to 125°C
Complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC
