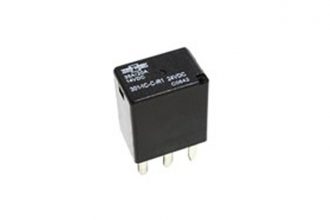

Song Chuan Series No. 301 micro automotive relay complies with RoHS-Directive 2011/65/EU and ELVDirective 2000/53/EC
| Terminal style |
Contact form |
Designation (provided with) |
Enclosure style | ||
| Dust cover | Flux tight | Sealed type washable |
|||
| Socket terminal | 1A (SPNO) |
– | 301-1A-D | 301-1A-C | 301-1A-S |
| Resistor | 301-1A-D-R1 | 301-1A-C-R1 | 301-1A-S-R1 | ||
| Diode | 301-1A-D-D1 | 301-1A-C-D1 | 301-1A-S-D1 | ||
| 1C (SPDT) |
– | 301-1C-D | 301-1C-C | 301-1C-S | |
| Resistor | 301-1C-D-R1 | 301-1C-C-R1 | 301-1C-S-R1 | ||
| Diode | 301-1C-D-D1 | 301-1C-C-D1 | 301-1C-S-D1 | ||
Micro 280 automotive relay
SPNO & SPDT contact configurations
NO contacts switch 35A resistive load, NC contacts switch 20A resistive load, 100,000 ops., 23°C
Optional resistor or diode for coil transient suppression
Operating ambient temperature -40°C to 125°C
Complies with RoHS-Directive 2011/65/EU and ELVDirective 2000/53/EC
