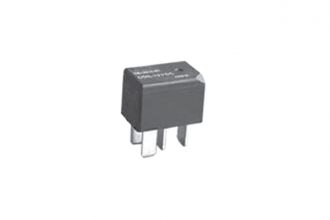

Song Chuan Series No. 108 low profile micro ISO automotive relays, complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC.
| Terminal style | Contact form | Designation (provided with) |
Designation (provided with) | ||
| Dust cover | Flux tight | Sealed type | |||
| Micro ISO Footprint |
1A (SPNO) | – | 108-1AH-D | 108-1AH-C | 108-1AH-V |
| Resistor | 108-1AH-D-R1 | 108-1AH-C-R1 | 108-1AH-V-R1 | ||
| Diode | 108-1AH-D-D1 | 108-1AH-C-D1 | 108-1AH-V-D1 | ||
Low Profile Micro ISO automotive relay
SPNO contact configuration
Switches up to 25A resistive load, 100,000 ops., 23°C
Operating ambient temperature -40°C to 105°C
Optional resistor or diode for coil transient suppression
Complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC
