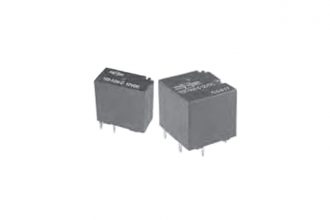

Song Chuan automotive relay series no. 103 is a small and slim type PCB automotive relay available in single or twin variant.
| Terminal style | Contact form | Designation (provided with) | ||
| Flux tight | Sealed type | Sealed type washable | ||
| PCB terminal | 1A (SPNO) | 103-1AH-C | 103-1AH-V | 103-1AH-S |
| 1A (SPNO) ×2 | 103T-1AH-C | 103T-1AH-V | 103T-1AH-S | |
| 1C (SPDT) | 103-1CH-C | 103-1CH-V | 103-1CH-S | |
| 1C (SPDT) ×2 | 103T-1CH-C | 103T-1CH-V | 103T-1CH-S | |
High rating 20A with maximum switching current up to 30A
High Temperature withstand up to 125 °C
Single or twin relays are both available
Complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC
