Series No. 102

Series No.102 compact size miniature PCB relays are designed for window lift control, wiper and sunroof motor control

Further information

Series No. 102 Part Number

Terminal style Contact form Designation (provided with)
Flux tight Sealed type Sealed type washable
PCB terminal 1A (SPNO) 102-1AH-C 102-1AH-V 102-1AH-S
1C (SPDT) 102-1CH-C 102-1CH-V 102-1CH-S

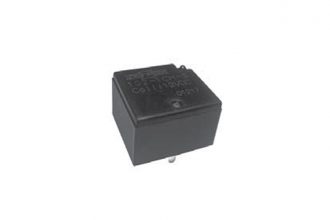

Song Chuan Series No.102

Key benefits

  • High rating 20A with maximum switching current up to 30A

  • High temperature endurance up to 125 °C

  • IR-Reflow process compatible (special version)

  • Complies with RoHS-Directive 2011/65/EU and ELV-Directive 2000/53/EC
