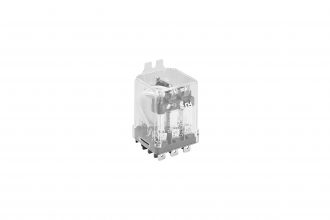

Song Chuan 20A/25A general purpose 735 series power relays is available with optional flange covers, tapped core w/anti-rotation tab, indicator lamp, push-to-test button and PCB terminals.
735
| Open type | 735-1A | 735-1B | 735-1C | 735-2A | 735-2B | 735-2C |
| Dust cover | 735-1A-C | 735-1B-C | 735-1C-C | 735-2A-C | 735-2B-C | 735-2C-C |
| Ears on cover | 735-1A-C1 | 735-1B-C | 735-1C-C1 | 735-2A-C1 | 735-2B-C1 | 735-2C-C1 |
| Antirotation-tab | 735-1A-C2 | 735-1B-C2 | 735-1C-C2 | 735-2A-C2 | 735-2B-C2 | 735-2C-C2 |
| Ears on top | 735-1A-C3 | 735-1B-C3 | 735-1C-C3 | 735-2A-C3 | 735-2B-C3 | 735-2C-C3 |
| Contacts | ||||||
| Contact
form |
1A (SPNO) | 1B (SPNC) | 1C (SPDT) | 2A (DPNO) | 2B (DPNC) | 2C (DPDT) |
| Rated voltage/current | 20A 240VAC
15A 28VAC |
20A 240VAC
15A 28VAC |
20A 240VAC
15A 28VAC |
20A 240VAC
15A 28VAC |
20A 240VAC
15A 28VAC |
20A 240VAC
15A 28VAC |
| Open type | 735-3A | 735-3B | 735-3C |
| Dust cover | 735-3A-C | 735-3B-C | 735-3C-C |
| Ears on cover | 735-3A-C1 | 735-3B-C1 | 735-3C-C1 |
| Antirotation-tab | 735-3A-C2 | 735-3B-C2 | 735-3C-C2 |
| Ears on top | 735-3A-C3 | 735-3B-C3 | 735-3C-C3 |
| Contacts | |||
| Contact
form |
3A (TPNO) | 3B (TPNC) | 3C (TPDT) |
| Rated voltage/current | 20A 120VAC
15A 240VAC/28VDC |
20A 120VAC
15A 240VAC/28VDC |
20A 120VAC
15A 240VAC/28VDC |
735H
| Dust cover | 735H-1A-F-C | 735H-1B-F-C | 735H-1C-F-C | 735H-2A-F-C | 735H-2B-F-C | 735H-2C-F-C |
| Ears on cover | 735H-1A-F-C1 | 735H-1B-F-C1 | 735H-1C-F-C1 | 735H-2A-F-C1 | 735H-2B-F-C1 | 735H-2C-F-C1 |
| Contacts | ||||||
| Contact
form |
1A (SPNO) | 1B (SPNC) | 1C (SPDT) | 1C (SPDT) | 2B (DPNC) | 2C (DPDT) |
| Rated voltage/current | 30A 240VAC
15A 28VDC |
30A 240VAC
15A 28VDC |
30A 240VAC
15A 28VDC |
30A 240VAC
15A 28VDC |
30A 240VAC
15A 28VDC |
30A 240VAC
15A 28VDC |
SPDT, DPDT, TPDT contact configurations
DC & AC coils are both available
RoHS Compliant
