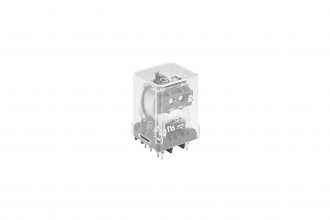

Song Chuan general purpose 731 series power relay is available to purchase with optional with anti-rotation tab, tapped core, indicator lamp & push-to-test button and flanged cover.
| Open type | 731-SPNO | 731-SPDT | 731-DPNO | 731-DPDT | 731-TPNO | 731-TPDT |
| Dust cover | 731-SPNO-C | 731-SPDT-C | 731-DPNO-C | 731-DPDT-C | 731-TPNO-C | 731-TPDT-C |
| Ears on cover | 731-SPNO-C1 | 731-SPDT-C1 | 731-DPNO-C1 | 731-DPDT-C1 | 731-TPNO-C1 | 731-TPDT-C1 |
| Antirotation-tab | 731-SPNO-C2 | 731-SPDT-C2 | 731-DPNO-C2 | 731-DPDT-C2 | 731-TPNO-C2 | 731-TPDT-C2 |
| Ears on top | 731-SPNO-C3 | 731-SPDT-C3 | 731-DPNO-C3 | 731-DPDT-C3 | 731-TPNO-C3 | 731-TPDT-C3 |
| Contacts | ||||||
| Contact
form |
1A (SPNO) | 1C (SPDT) | 2A (DPNO) | 2C (DPDT) | 3A (TPNO) | 3C (TPDT) |
| Rated voltage/current | 10A 28VDC
10A 240VAC |
10A 28VDC
10A 240VAC |
10A 28VDC
10A 240VAC |
10A 28VDC
10A 240VAC |
10A 28VDC
10A 240VAC |
10A 28VDC
10A 240VAC |
| Dust cover | 731H-SPNO-C | 731H-SPDT-C | 731H-DPNO-C | 731H-DPDT-C | 731H-TPNO-C | 731H-TPDT-C |
| Ears on cover | 731H-SPNO-C1 | 731H-SPDT-C1 | 731H-DPNO-C1 | 731H-DPDT-C1 | 731H-TPNO-C1 | 731H-TPDT-C1 |
| Ears on top | 731H-SPNO-C3 | 731H-SPDT-C3 | 731H-DPNO-C3 | 731H-DPDT-C3 | 731H-TPNO-C3 | 731H-TPDT-C3 |
| Contacts | ||||||
| Contact
form |
1A (SPNO) | 1C (SPDT) | 2A (DPNO) | 2C (DPDT) | 3A (TPNO) | 3C (TPDT) |
| Rated voltage/current | 20A 300VAC
25A 277VAC |
20A 300VAC
25A 277VAC |
20A 300VAC
25A 277VAC |
20A 300VAC
25A 277VAC |
16A 300VAC
20A 277VAC |
16A 300VAC
20A 277VAC |
SPDT, DPDT, TPDT contact configurations
AC & DC coils are both available
RoHS Compliant
