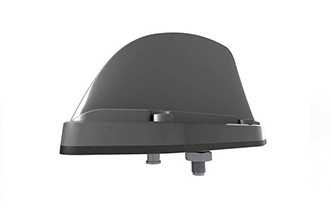

SiSo Rooftop Antenna

TE SiSo Rooftop Antenna series has been designed specifically for use on trains, trams and buses. The SiSo range covers 698-960/1710-6000MHz with optional GPS/GNSS with a 26dB LNA. The radiating element is DC grounded and, in versions with a GPS module it is protected by an integrated gas discharge surge arrestor. Housed in a high impact, flame retardant polycarbonate housing, the SiSo series is weatherproof and environmentally sealed to IP67, ensuring that the antenna’s performance is never compromised.

Document downloads

MiMo / SiSo antenna

Key benefits

  • Enable all connections with antenna features that cover all LTE, WiFi and WiMAX frequencies used worldwide, including GSM-R, Cellular 700-6000MHz

  • Provide expanded functionality with optional active GPS GLOSNASS antenna with built in surge arrestor

  • Realise long operating life with weather resistant Polyetherimide housing and Aluminium base

  • Comply to standards EN45545, EN50155, EN61373 and EN50121
